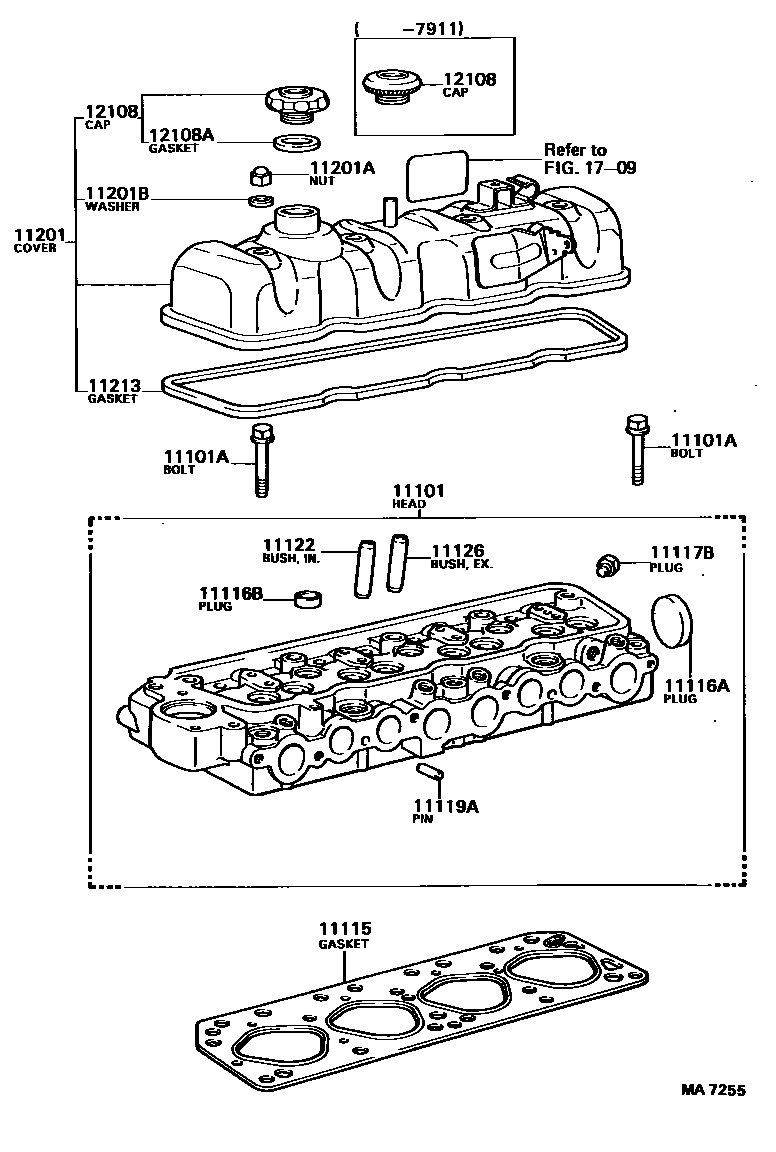

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
sub11101-29229
sub11101-31052
sub11101-34113
11101ABOLT(FOR CYLINDER HEAD SET)
*12-1.2PX107-24
*12-1.25PX80-24
*12-1.25PX84.5-24
*12-1.25PX98-24
11116APLUG, TIGHT, NO.1
OD=50
11116BPLUG, TIGHT, NO.2
OD=22
11117BPLUG, W/HEAD TAPER SCREW, NO.2
11119APIN, STRAIGHT, NO.1
L=23,OD=8
L=8,OD=11
11122BUSH, INTAKE VALVE GUIDE
STD
STD,STD
STD
STD
STD,STD
O/S 0.05
O/S 0.05,0/S 0.05
O/S 0.05
O/S 0.05
O/S 0.05,O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
STD
STD,STD
O/S 0.05
0/S 0.05
O/S 0.05,O/S 0.05
STD,STD
STD
O/S 0.05,O/S 0.05
0/S 0.05
11201ANUT, CAP(FOR CYLINDER HEAD COVER)
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
12108AGASKET(FOR OIL FILLER CAP)
