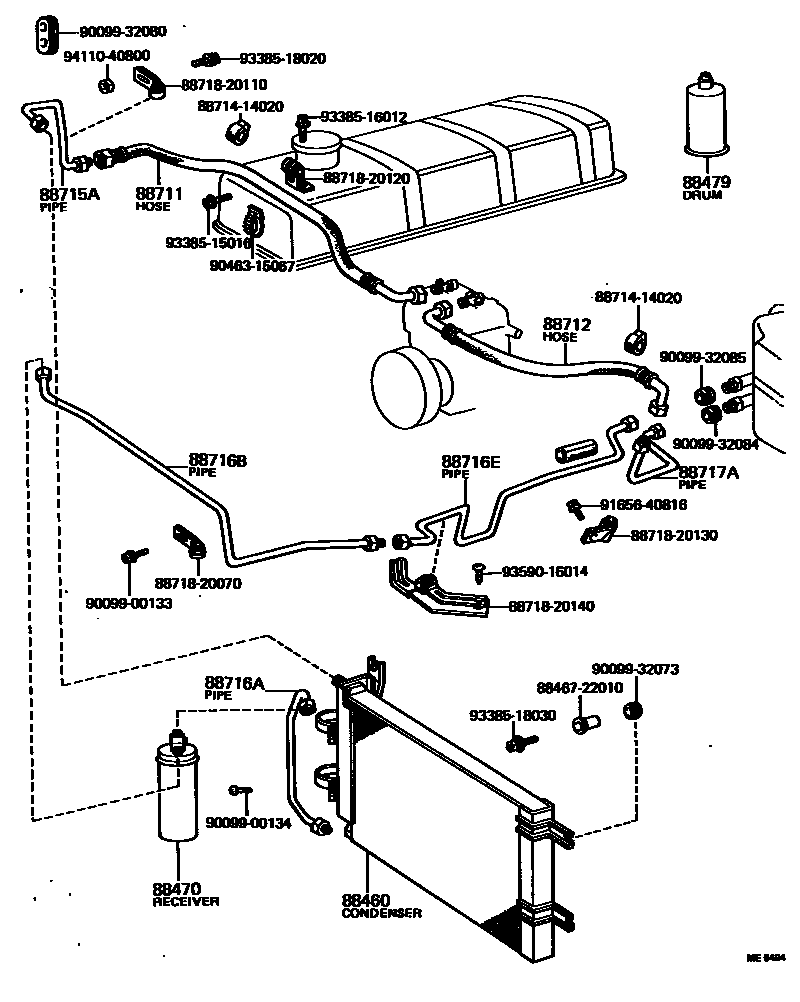

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0006 1 0007 1

88460CONDENSER ASSY, COOLER

main88460-20060iRT10#,112,114,116,117,118..ARL,EUR,GEN,SA197308-197701

main88460-20080iRT10#,11#..RHD197701-197905

sub88460-20090

main88460-20090iRT100,116..RHD197701-197905

88470RECEIVER & DRYER ASSY, COOLER

main88470-20040iRT10#,112,114,116,117,118..ARL,EUR,GEN,SA197308-197701

sub88470-12021

main88470-20050iRT10#,116,118..ARL,EUR,GEN,SA197802-197905

sub88470-12021

main88470-20060iRT10#,116,118..ARL,EUR,GEN,SA197701-197802

sub88470-20040

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main88434-30010iRT10#,112,114,116,117,118..ARL,EUR,GEN,SA197308-197905

sub90986-02001

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-20100iRT104,118..EUG;RT102,104,114,118..ARL,GEN,SA197509-197905

sub88711-20903

main88711-20150iRT100,116..GEN197509-197808

main88711-20902iRT100,116197308-197509

main88711-20903iRT102,104,112,114,117,118197308-197509

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-20100iRT10#,114,116,118..RHD197308-197808

main88712-20110iRT100,104,114,116,118..LHD197308-197905

main88712-20230iRT102,104,114,118..RHD197701-197905

main88712-20901iRT100,116..RHD197308-197509

main88712-20903iRT100,116..LHD197308-197509

main88712-22021iRT100,116..LHD197606-197808

88715APIPE, COOLER REFRIGERANT DISCHARGE, A

main88715-20030iRT10#,112,114,116,117,118197308-197509

sub88715-20040

main88715-20040iRT10#,114,116,118..ARL,EUR,GEN,SA197509-197905

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-20220iRT10#,112,114,116,117,118..ARL,EUR,GEN,SA197308-197905

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-20160iRT10#,112,114,116,117,118..RHD197308-197502

sub88716-20161

main88716-20161iRT10#,112,114,116,117,118..RHD197502-197905

main88716-20180iRT10#,112,116,117,118..LHD197308-197502

sub88716-20181

main88716-20181iRT10#,112,114,116,117,118..LHD197502-197701

main88716-20280iRT100,104,11#..LHD197701-197905

88716EPIPE, COOLER REFRIGERANT LIQUID, E

main88716-20170iRT10#,112,114,116,117,118..RHD197308-197502

main88716-20171iRT10#,112,114,116,117,118..RHD197502-197509

sub88716-20170

main88716-20190iRT10#,112,116,117,118..LHD197308-197502

sub88716-20191

main88716-20191iRT10#,112,114,116,117,118..LHD197502-197905

main88716-20241iRT100,116..RHD197509-197808

main88716-20300iRT102,104,114,118..RHD197701-197905

88717APIPE, COOLER REFRIGERANT SUCTION, A

main88717-20080iRT102,104,112,114,117,118..RHD197308-197509

main88717-20090iRT104,114,118..LHD197308-197701

main88717-20100iRT100,116..RHD197308-197509

main88717-20151iRT100,104,114,116,118..RHD197509-197808

main88717-20170iRT102,104,114,118..RHD197701-197905

main88717-20190iRT104,114,118..LHD197701-197905

8846722010CUSHION, COOLER CONDENSER, NO.1

main88467-22010

8871414020HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-14020

8871820070PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-20070

8871820110PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-20110

8871820120PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-20120

8871820130PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-20130

8871820140PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-20140

9009900133

main90099-00133

9009900134

main90099-00134

9009932073

main90099-32073

9009932080

main90099-32080

9009932084

main90099-32084

9009932085

main90099-32085

9046315067

main90463-15067

9165640816

main91656-40816

9338515016

main93385-15016

9338516012

main93385-16012

9338518020

main93385-18020

9338518030

main93385-18030

9359016014

main93590-16014

9411040800

main94110-40800

31 parts on this diagram · 5 diagrams in section
