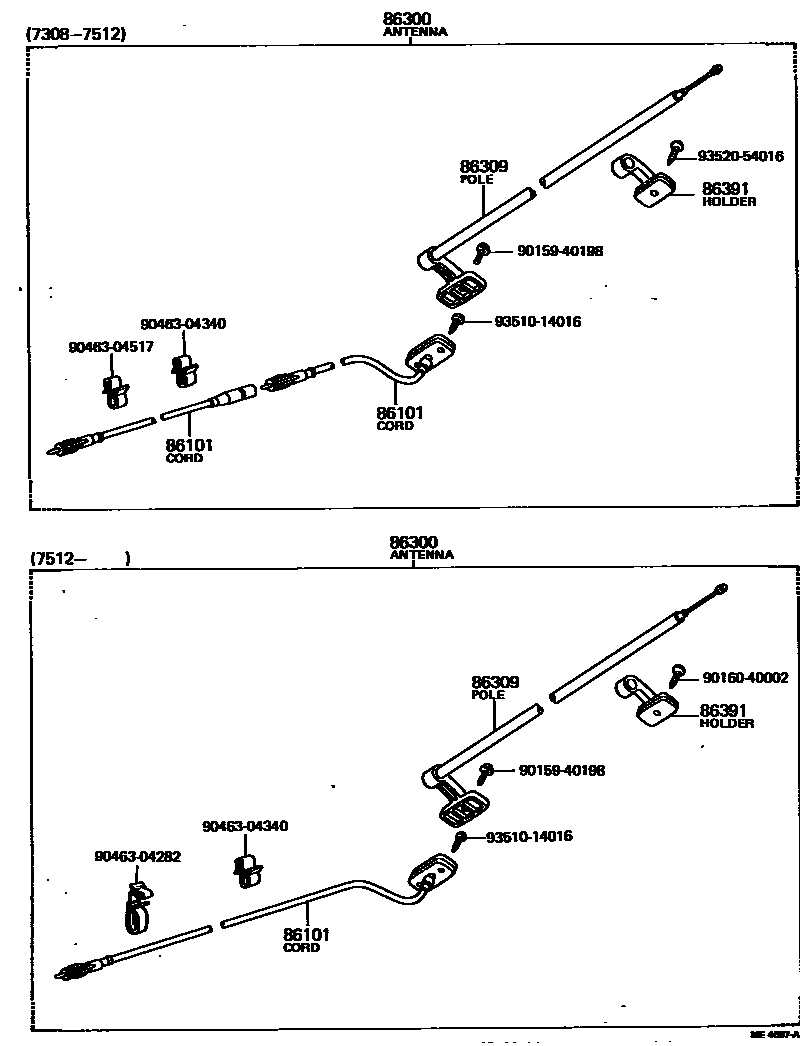

ANTENNA

86101CORD SUB-ASSY, ANTENNA

main86101-20010iRT114,118..EUR,GEN¥1,320197308-197512

L=450

sub86101-20011

main86101-20011iRT114,118..EUR,GEN197512-197905

L=1200

main86101-20030iRT114,118..EUR,GEN¥1,320197308-197512

L=1200

sub86101-20011

86300ANTENNA ASSY, W/HOLDER

main86300-29025iRT100,104,114,116,118..RHD¥4,380197308-197905

main86300-29035iRT100,104,11#..LHD197308-197905

86309POLE SUB-ASSY, PILLAR ANTENNA

main86309-20010iRT102..RHD..4F..DLX..GEN¥2,630197308-197504

sub86309-20011

sub86391-20061¥490

main86309-20011iRT100,112,114,116,117,118..RHD197504-197905

main86309-20020iRT10#,110,112,116,117..LHD197308-197504

sub86309-20021¥2,630

sub86391-20061¥490

main86309-20021iRT100,104,11#..LHD¥2,630197504-197905

86391HOLDER, ANTENNA

main86391-20060iRT100,110,112,116,117197308-197504

main86391-20061iRT100,104,11#..ARL,EUR,GEN,PHL¥490197504-197905

9015940198

main90159-40198¥130

9016040002

main90160-40002¥130

9046304282

main90463-04282

9046304340

main90463-04340¥240

9046304517

main90463-04517

9351014016

main93510-14016¥170

9352054016

main93520-54016¥200

11 parts on this diagram · 1 diagram in section
