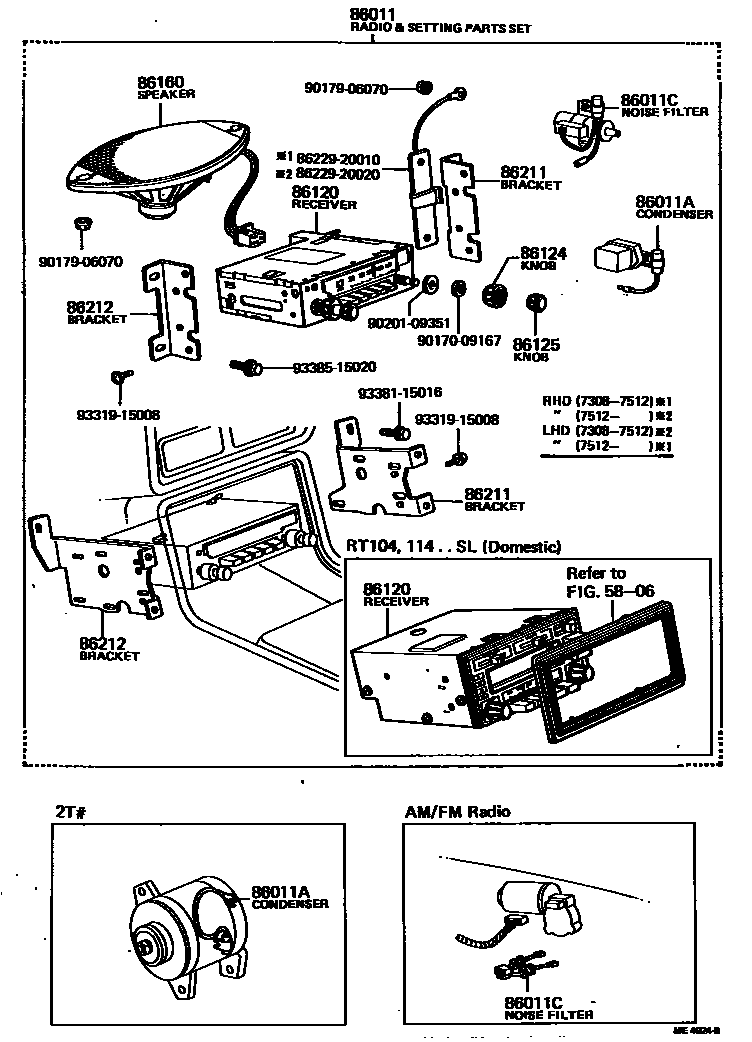

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1

5806

86011RADIO & SETTING PARTS SET

main86011-20200iRT10#,112,114,116,117,118..RHD197308-197701

AM/FM,5-BUTTON

main86011-20220iRT10#,112,116,117,118..LHD197308-197502

WEST GERMANY

main86011-29015iRT102..RHD..4F..DLX..GEN197308-197701

AM,5-BUTTON

main86011-29055iRT10#,110,112,116,117,118..LHD197308-197509

AM,5-BUTTON

main86011-29056iRT100,110..DLX..PHL197509-197701

AM,5-BUTTON

main86011-29065iRT10#,112,116,117,118..LHD197308-197509

AM/FM,5-BUTTON

main86011-29066iRT100,104,114,116,118..LHD197509-197701

AM/FM,5-BUTTON

86011ACONDENSER, RADIO SETTING

main90980-04011iRT10#,116,117,118..4D197308-197905

PLUG CONNECTOR

86011CFILTER, NOISE

main90980-05010iRT112197308-197408

;U; & PLUG CONNECTOR

main90980-05011iRT10#,112,114,116,117,118..EUR,GEN197308-197905

AM/FM,WIPER MOTOR

main90980-05020iRT114,118..EUR,GEN197407-197701

PLUG CONNECTOR

main90980-05021iRT114,118..EUR,GEN197408-197701

;U; & PLUG CONNECTOR

sub90980-05010

main90980-05029iRT114..SA;RT104..4F..SA197701-197905

86120RECEIVER ASSY, RADIO

main86120-14120iRT100,104,116..GEN197708-197905

MW/SW

main86120-20130iRT112197308-197701

AM,5-BUTTON

main86120-20150iRT10#,112,114,116,117,118..EUR,GEN197308-197605

AM/FM,5-BUTTON

sub86120-20151

main86120-20151iRT100,104,114,116,118..EUR,GEN197605-197701

AM/FM,5-BUTTON

main86120-20180iRT10#,112,116,117,118..LHD197308-197502

WEST GERMANY

main86120-22170iRT104,118..EUR197706-197808

MW/LW

86124KNOB, RADIO RECEIVER CONTROL

main86124-20040iRT10#,116,117..4D197308-197701

main86124-22030iRT100,104,11#..ARL,EUR,GEN,PHL197712-197905

FOR AM & AM/FM

sub86124-22031

main86124-22030iRT100,104,11#..ARL,EUR,GEN197701-197712

sub86124-22031

main86124-22050iRT100,104,116,118..EUR,GEN197706-197905

FOR MW/LW & MW/SW

sub86124-22H00

86125KNOB, RADIO RECEIVER SWITCH

main86125-20040iRT112197308-197701

main86125-22020iRT100,104,11#..ARL,EUR,GEN197701-197905

86160SPEAKER ASSY, FRONT NO.1

main86160-20050iRT112197308-197701

sub86160-14070

main86160-20060iRT100,104,11#..ARL,EUR,GEN197701-197708

sub86160-20061

main86160-20061iRT100,104,11#..ARL,EUR,GEN197708-197905

sub86160-95012

86211BRACKET, RADIO, NO.1

main86211-20020iRT102..RHD..4F..DLX..GEN197308-197701

main86211-20022iRT100,104,11#..RHD197701-197905

main86211-20050iRT10#,112,114,116,117,118..LHD197308-197701

main86211-20052iRT100,104,11#..LHD197701-197905

86212BRACKET, RADIO, NO.2

main86212-20010iRT100,112,114,116,117,118..RHD197308-197701

main86212-20012iRT100,104,11#..RHD197701-197905

main86212-20040iRT10#,112,114,116,117,118..LHD197308-197701

main86212-20042iRT100,104,11#..LHD197701-197905

8622920010BRACKET, STEREO SPEAKER, LH

main86229-20010

8622920020BRACKET, STEREO SPEAKER, LH

main86229-20020

9017009167

main90170-09167

9017906070

main90179-06070

9020109351

main90201-09351

9331915008

main93319-15008

9338115016

main93381-15016

9338515020

main93385-15020

18 parts on this diagram · 3 diagrams in section
