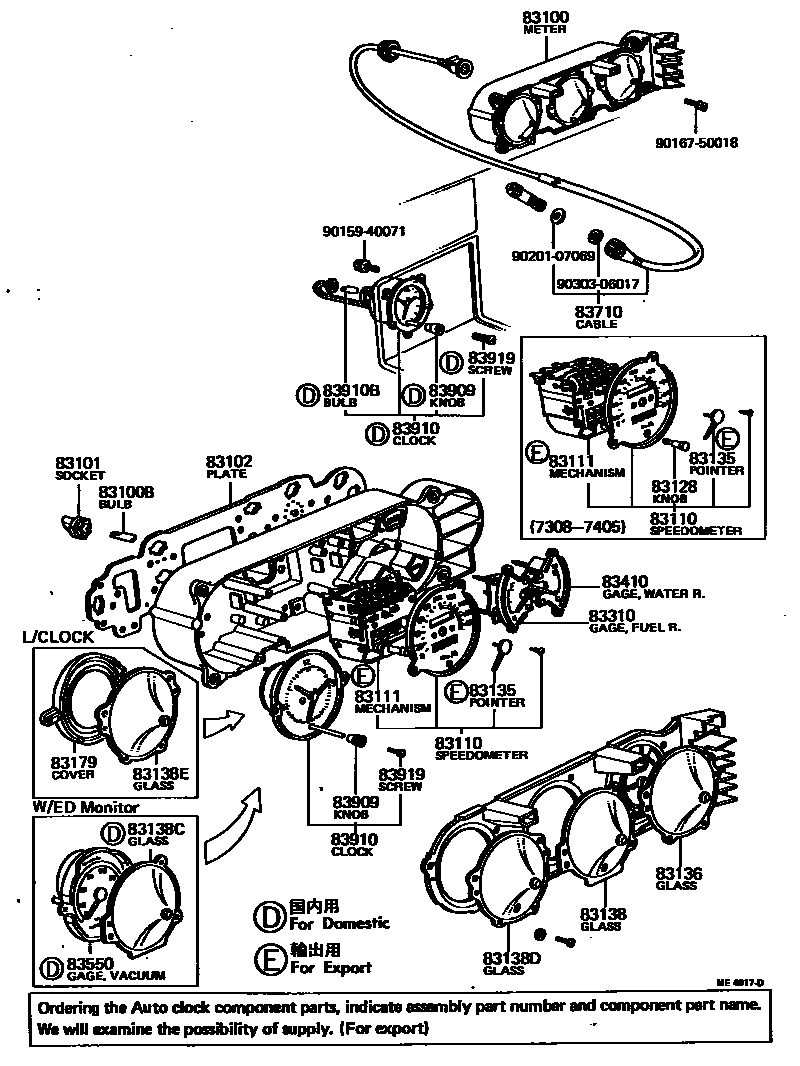

METER

0001 1 0002 1 0003 1 0004 1 0005 1

83100METER ASSY, COMBINATION

main83100-20240iRT100,102,116,117..RHD..STD197308-197501

KM,L/CLOCK

main83100-20241iRT100,104,116,118..RHD..STD197605-197701

KM,L/CLOCK

main83100-20242iRT104..RHD..3FC..STD;RT100,116,118..RHD..STD;RT104..RHD..4F..STD..(EUR,GEN)197701-197808

KM,L/CLOCK

main83100-20250iRT114..RHD..4F;RT114..RHD..3FC..GEN;RT100,112,116,117,118..RHD197308-197605

KM,W/CLOCK

main83100-20251iRT114..RHD..3FC..GEN;RT100,114,116..RHD..MTM197605-197701

KM,W/CLOCK

main83100-20252iRT100,102,11#..RHD;RT104..RHD..(3FC,5F);RT104..RHD..4F..(ARL,EUR,GEN)197701-197905

KM,W/CLOCK

main83100-20260iRT10#,116,117,118..RHD..STD..(ARL,EUR,GEN)197308-197605

MILE,L/CLOCK

main83100-20261iRT100,104,116,118..RHD..STD197605-197701

MILE,L/CLOCK

main83100-20262iRT104..RHD..3FC..STD;RT100,116,118..RHD..STD;RT104..RHD..4F..STD..(EUR,GEN)197701-197707

MILE,L/CLOCK

main83100-20263iRT104..RHD..3FC..STD;RT100,116,118..RHD..STD;RT104..RHD..4F..STD..(EUR,GEN)197707-197808

MILE & KM

main83100-20270iRT10#,112,114,116,117..RHD197308-197605

MILE,W/CLOCK

main83100-20271iRT100,104,114,116..RHD197605-197701

MILE,W/CLOCK

main83100-20272iRT100,104,11#..RHD197701-197707

MILE,W/CLOCK

main83100-20273iRT100,104,11#..RHD197707-197808

MILE & KM,W/CLOCK

main83100-20280iRT10#,116,117,118..LHD..STD197308-197605

KM,L/CLOCK

main83100-20281iRT100,104,116,118..LHD..STD197605-197701

KM,L/CLOCK

main83100-20282iRT118..LHD..GEN;RT118..LHD..EUG;RT100,104,116..LHD..STD197701-197712

KM,L/CLOCK

main83100-20290iRT10#,11#..LHD197308-197605

KM,W/CLOCK

main83100-20291iRT100,104,11#..LHD197606-197701

KM,W/CLOCK

main83100-20292iRT100,104,11#..LHD197712-197905

KM,W/CLOCK

main83100-20300iRT10#,116,117,118..LHD..STD197308-197605

MILE,L/CLOCK

main83100-20301iRT100,104,116,118..LHD..STD197605-197701

MILE,L/CLOCK

main83100-20302iRT100..LHD..STD..GEN;RT104,116,118..LHD..STD197701-197707

MILE,L/CLOCK

main83100-20303iRT100..LHD..STD..GEN;RT104,116,118..LHD..STD197707-197905

MILE & KM,L/CLOCK

main83100-20310iRT10#,112,114,116,117,118..LHD197308-197605

MILE,W/CLOCK

main83100-20311iRT100,11#..LHD;RT104..LHD..4F..EUG;RT104..LHD..4F..GEN;RT104..LHD..(3FC,5F)197605-197701

MILE,W/CLOCK

main83100-20312iRT100,104,11#..LHD197701-197707

MILE,W/CLOCK

main83100-20313iRT100,104,11#..LHD197707-197905

MILE & KM,W/CLOCK

main83100-20320iRT104..4F..SA197308-197509

KM

main83100-20321iRT104..4F..SA197509-197604

KM

main83100-20322iRT104..4F..SA197604-197701

KM

main83100-20323iRT104..4F..SA197701-197905

KM

main83100-20600iRT104,118..SDN197509-197606

main83100-20730iRT104,118..ARL197610-197701

KM,W/CLOCK

83100BBULB, COMBINATION METER, NO.1

main99132-12034×13iRT10#,11#197308-197905

12V 3.4W,12V 3.4W

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-20040×13iRT10#,11#197308-197905

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83102-20120iRT104..3FC..SA;RT104..RHD..(ARL,EUR,GEN);RT100,102,112,114,116,117,118..RHD197308-197701

main83102-20130iRT104,118..LHD..EUG197509-197606

main83102-20160iRT104..4F..SA197308-197509

main83102-20161iRT104..4F..SA197509-197512

main83102-20162iRT104..4F..SA197512-197701

main83102-20230iRT104,118..SDN197509-197701

main83247-20020iRT104..4F..SA197701-197905

sub83247-20010

main83247-20050iRT100,102,11#..RHD;RT104..RHD..(3FC,5F);RT104..RHD..4F..(ARL,EUR,GEN)197701-197905

sub83247-20030

main83247-20060iRT100,104,11#..LHD197701-197905

83110SPEEDOMETER ASSY

main83110-20230iRT10#,11#197308-197701

KM

main83110-20240iRT100,112,116,117197308-197701

MILE

main83110-20252iRT100,104,11#..EUR,GEN197707-197905

MILE & KM

main83110-20320iRT104,118..SDN197509-197701

main83241-20020iRT104..4F..SA197701-197905

KM

main83241-20060iRT100,102,11#;RT104..3FC..SA;RT104..ARL,EUR,GEN197701-197905

KM

main83241-20070iRT100,104,11#..EUR,GEN197701-197707

MILE

83111MECHANISM, SPEEDOMETER

main83112-20060iRT10#,11#197701-197905

KM

main83112-20230iRT10#,11#197308-197701

KM

main83112-20240iRT100,112,116,117197308-197701

MILE

main83112-20241iRT100,104,11#..EUR,GEN197701-197707

MILE

main83112-20252iRT100,104,11#..EUR,GEN197707-197905

MILE & KM

83128KNOB, TRIP COUNTER

main83128-20190iRT10#,11#197308-197405

83135POINTER, SPEEDOMETER

main83135-20230iRT10#,11#197308-197905

83136GLASS, GAGE METER

main83134-20170iRT100,102,11#;RT104..3FC..SA;RT104..ARL,EUR,GEN197308-197905

L/HOLE,BIG

main83137-20200×2iRT104..4F..SA197308-197905

SMALL

83138GLASS, SPEEDOMETER

main83138-20190iRT10#,11#197308-197905

83138CGLASS, ED MONITOR

83138DGLASS, CLOCK

main83137-20170iRT100..GEN;RT102,104,11#;RT100..DLX..PHL197308-197905

W/HOLE

main83137-20200iRT104..4F..SA197308-197905

SMALL

83138EGLASS, METER COVER

main83137-20170iRT10#,116,117,118..STD..(ARL,EUR,GEN,PHL)197501-197905

83179COVER, COMBINATION METER, HOLE

main83179-20020iRT10#,116,117,118..STD..(ARL,EUR,GEN,PHL)197501-197701

83310GAGE ASSY, FUEL RECEIVER

main83243-20010iRT104..4F..SA197701-197905

main83243-20020iRT100,102,11#;RT104..3FC..SA;RT104..ARL,EUR,GEN197701-197905

main83310-20070iRT100,102,11#;RT104..3FC..SA;RT104..ARL,EUR,GEN197308-197701

main83310-20100iRT104..4F..SA197308-197701

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83244-20010iRT100,102,11#;RT104..3FC..SA;RT104..ARL,EUR,GEN197701-197905

main83244-20020iRT104..4F..SA197701-197905

main83410-20070iRT100,102,11#;RT104..3FC..SA;RT104..ARL,EUR,GEN197308-197605

main83410-20071iRT100,102,11#;RT104..3FC..SA;RT104..ARL,EUR,GEN197605-197701

main83410-20080iRT104..4F..SA197308-197605

main83410-20081iRT104..4F..SA197605-197701

83550GAGE ASSY, ED MONITOR

83710CABLE ASSY, SPEEDOMETER DRIVE, NO.1

main83710-29285iRT100,116..RHD..3H197308-197509

L=1600

main83710-29315iRT102,104,112,118..RHD..3FC197308-197905

L=1500

main83710-29335iRT10#,112,114,116,117,118..RHD..(4F,5F)197308-197905

L=1450

main83710-29345iRT100,104,11#..LHD..MTM197509-197905

L=1700

main83710-29355iRT102,104,112..LHD..3FC197308-197708

L=1750

main83710-29356iRT104..LHD..3FC197708-197808

L=1750

main83710-29425iRT100,116..RHD..3H197509-197808

L=1500

83909KNOB, CLOCK

main83915-20010iRT100..GEN;RT102,104,11#;RT100..DLX..PHL197308-197905

83910CLOCK ASSY

main83910-20110iRT100..GEN;RT102,104,11#;RT100..DLX..PHL197308-197701

main83910-20111iRT116;RT10#,114,118..ARL,EUR,GEN,SA197701-197905

main83910-20131iRT104..4F..SA197701-197905

main83910-29035iRT104..4F..SA197308-197701

83910BBULB, CLOCK INDICATOR

83919SCREW, CLOCK

main83916-20010iRT100..GEN;RT102,104,11#;RT100..DLX..PHL197308-197905

9015940071

main90159-40071

9016750018

main90167-50018

9020107069

main90201-07069

9030306017

main90303-06017

26 parts on this diagram · 5 diagrams in section
