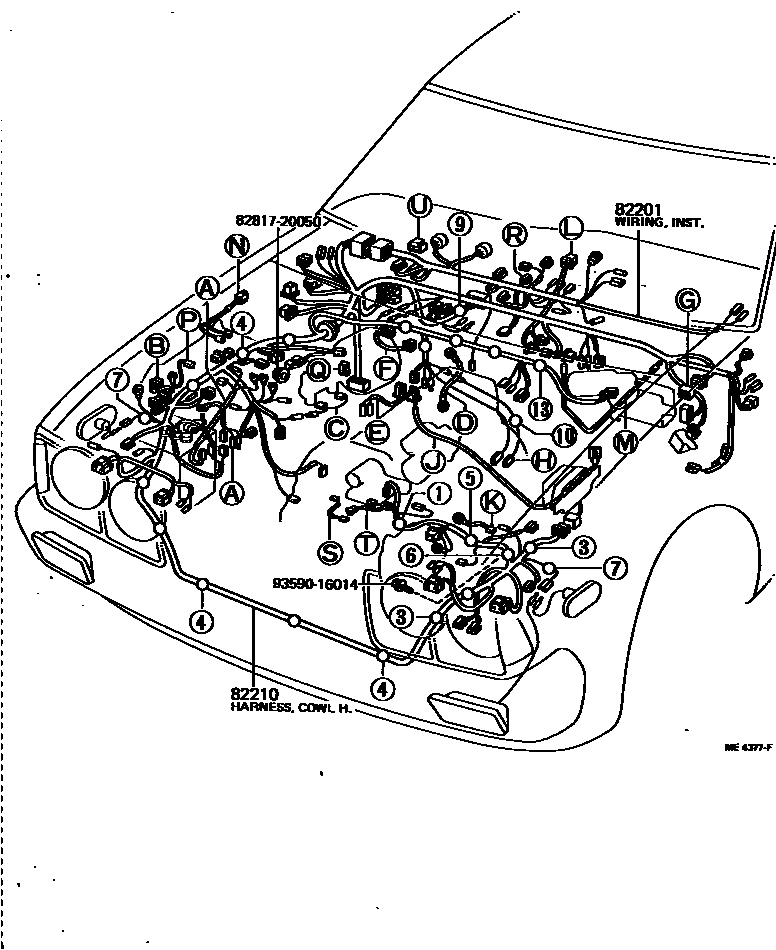

WIRING & CLAMP

0001 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1

82201WIRING SUB-ASSY, INSTRUMENT PANEL

main82201-20010iRT100..RHD..3H..STD;RT102,117..RHD..(EUR,SA)197308-197401

main82201-20011iRT100..RHD..3H..STD;RT102,117..RHD..(EUR,SA)197401-197509

main82201-20020iRT100,102..RHD..DLX197308-197401

main82201-20021iRT100,102,112..RHD..DLX197401-197509

main82201-20050iRT104,118..ARL;RT104..3FC..SA197308-197401

main82201-20051iRT104,118..ARL;RT104..3FC..SA197401-197509

main82201-20060iRT100,102,112,116,117..LHD197308-197401

main82201-20061iRT10#,110,112,116,117,118..LHD197401-197509

main82201-20100iRT104..4F..SA197308-197401

main82201-20101iRT104..4F..SA197401-197509

82210HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1

main82210-20870iRT104..ARL;RT104..3FC..SA;RT100,102,112,116,117,118..RHD197308-197509

main82210-20872iRT102197509-197701

sub82210-20873

sub82219-22020

sub82222-20021

sub90461-05024

main82210-20890iRT104..4F..SA197308-197509

main82210-20892iRT104..4F..SA197509-197603

sub82210-20893

sub82219-22020

sub82222-20021

sub90461-05024

main82210-20893iRT104..4F..SA197603-197701

main82270-20080iRT100,102,112,116,117..LHD197308-197401

main82270-20081iRT10#,110,112,116,117,118..LHD197401-197509

main82270-20082iRT100,104,11#..LHD197509-197603

sub82270-20083

sub82219-22020

sub82222-20021

sub90461-05024

main82270-20083iRT100,104,11#..LHD197603-197701

main82270-20370iRT104,118..SDN197509-197603

sub82270-20371

sub82219-22020

main82270-20371iRT104,118..SDN197603-197606

main82270-20372iRT104,118..SDN197606-197701

main82270-20410iRT118..ARL;RT104..4F..ARL;RT104..3FC..(ARL,SA)197509-197603

sub82270-20411

sub82219-22020

main82270-20411iRT118..ARL;RT104..4F..ARL;RT104..3FC..(ARL,SA)197603-197610

main82270-20412iRT118..ARL;RT104..4F..ARL;RT104..3FC..(ARL,SA)197610-197701

main82270-20420iRT114..RHD..4F..GEN197509-197603

sub82270-20421

sub82219-22020

main82270-20421iRT114..RHD..4F..GEN197603-197701

main82270-20790iRT100,104,116,118..RHD197701-197708

main82270-20791iRT102197708-197905

main82270-20830iRT100,104,11#..LHD197701-197708

main82270-20831iRT100,104,11#..LHD197708-197905

main82270-20840iRT104,118..SDN197701-197706

main82270-20841iRT104,118..SDN197706-197808

8281720050PROTECTOR, WIRING HARNESS, NO.1

main82817-20050

9359016014

main93590-16014

4 parts on this diagram · 11 diagrams in section
