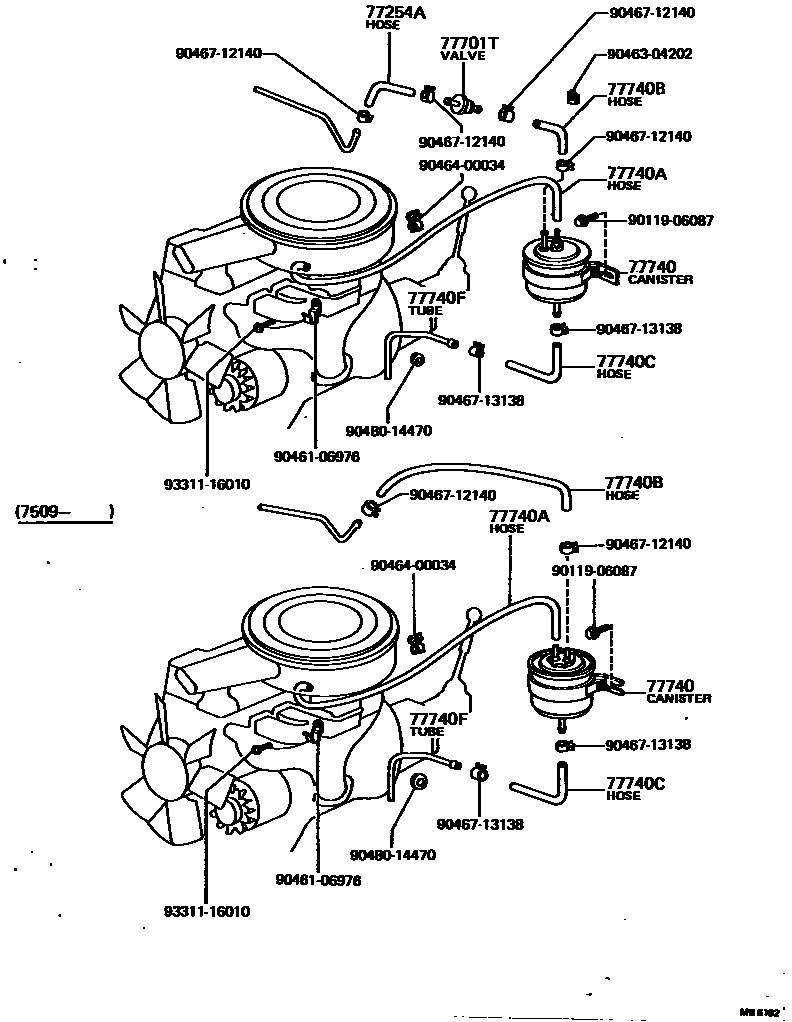

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1

77254TUBE, FUEL EMISSION, NO.1

main77254-20090iRT104..ARL197409-197411

main77254-20091iRT104..ARL197411-197509

main77254-20092iRT104..ARL197509-197701

main77254-20093iRT104..ARL197701-197905

main77254-21010iRT118..ARL197409-197509

main77254-21040iRT118..ARL197509-197701

main77254-21041iRT118..ARL197701-197905

77254AHOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)

main95331-06014iRT104,118..ARL197409-197509

*H,L=140

sub95332-06014

77701TVALVE, CHECK (FOR MAIN FUEL TANK)

main90917-10020iRT10#,11#197308-197905

77740CANISTER ASSY, CHARCOAL

main77740-20031iRT104,118..ARL197409-197509

sub77740-20070

main77740-20110iRT104,118..ARL197509-197701

sub77740-36040

main77740-20131iRT104,118..ARL197701-197905

77740AHOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)

main90445-07911iRT104,118..ARL197409-197511

L=650

main95411-19960iRT104,118..ARL197704-197905

*H,L=480,MARK=#*

sub90999-92003

main95411-19995iRT104,118..ARL197511-197704

*H,L=650,MARK=#*

sub90999-92004

77740BHOSE, FUEL, NO.2(FOR CHARCOAL CANISTER)

main95331-06007iRT104,118..ARL197409-197706

*H,L=70

main95332-06007iRT104,118..ARL197706-197905

L=100(*H,L=70)

sub95332-06010

77740CHOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)

main95331-08013iRT104,118..ARL197409-197701

*H,L=130

sub95332-08013

main95331-08014iRT104,118..ARL197701-197706

*H,L=140

sub95332-08014

main95332-08014iRT104,118..ARL197706-197905

L=200(*H,L=140)

sub95332-08020

77740FTUBE, FUEL, NO.1(FOR CHARCOAL CANISTER)

main77246-20020iRT104,118..ARL197409-197905

9011906087

main90119-06087

9046106976

main90461-06976

9046304202

main90463-04202

9046400034

main90464-00034

9046712140

main90467-12140

9046713138

main90467-13138

9048014470

main90480-14470

9331116010

main93311-16010

16 parts on this diagram · 5 diagrams in section
