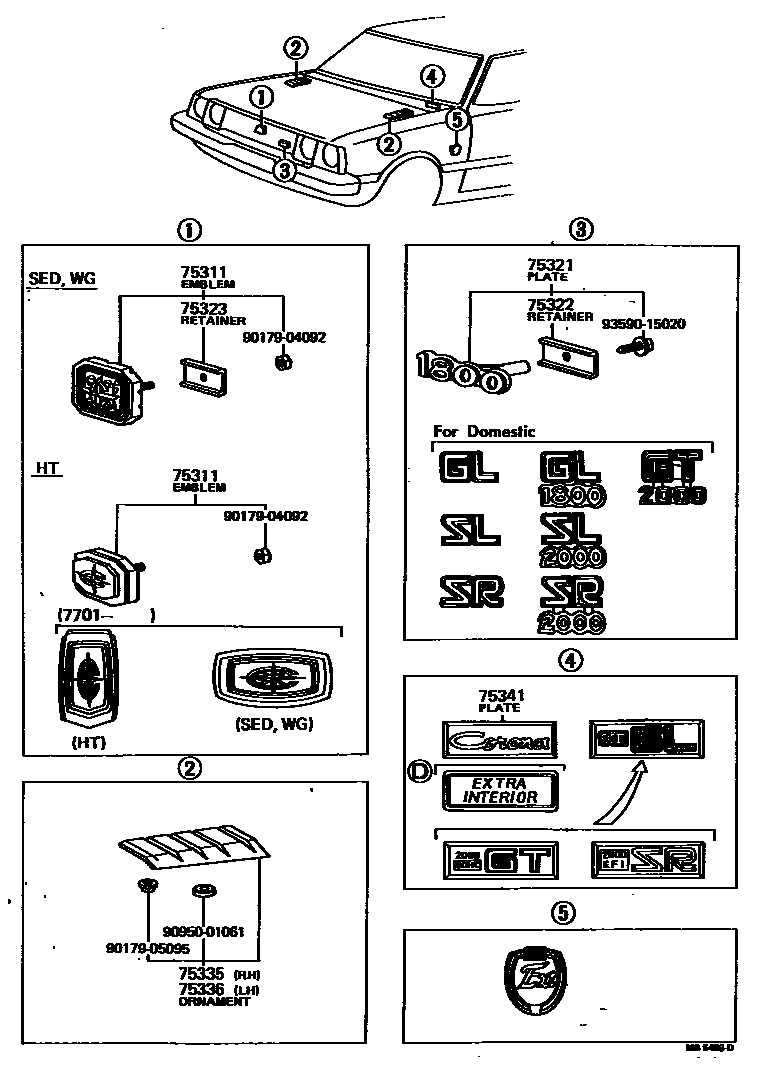

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

0001 1 0002 1 0003 1

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main75301-29065iRT10#,116,117,118197308-197512

sub75301-29066

main75301-29066iRT10#,116,118197512-197701

main75301-29067iRT10#,116,118197701-197905

main75301-29075iRT110,112,114197308-197701

main75301-95595iRT114197701-197808

sub75301-95596

75321PLATE, RADIATOR GRILLE OR FRONT PANEL NAME

main75321-29185iRT102,112,117197308-197407

1800

75322RETAINER, RADIATOR GRILLE NAME PLATE

main75322-20080iRT102,112,117197308-197407

75323RETAINER, RADIATOR GRILLE

main75317-20070iRT10#,116,117,118197308-197701

75335ORNAMENT, HOOD RELIEF, RH

main75335-29015iRT10#,11#197308-197501

75336ORNAMENT, HOOD RELIEF, LH

main75336-29015iRT10#,11#197308-197501

75341PLATE, INSTRUMENT PANEL NAME, NO.1

main55435-20100iRT10#,11#197308-197407

9017904092

main90179-04092

9017905095

main90179-05095

9095001061

main90950-01061

9359015020

main93590-15020

11 parts on this diagram · 3 diagrams in section
