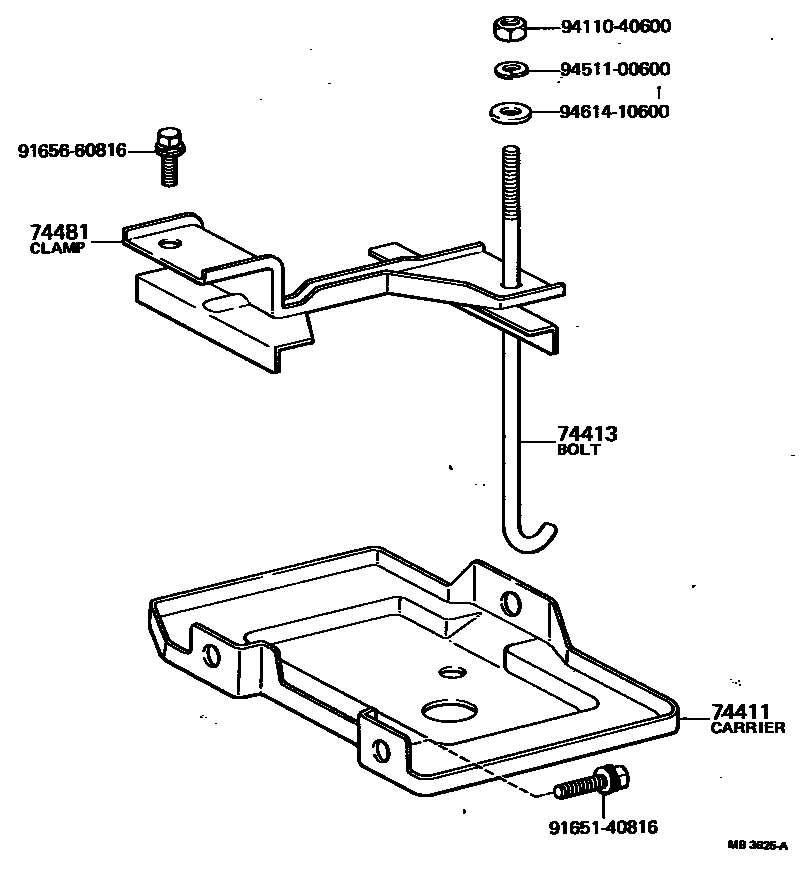

BATTERY CARRIER

74411CARRIER, BATTERY

main74403-20010iRT10#,112,116,117,118..EUR,GEN197308-197905

FOR N50Z

main74411-20090iRT10#,112,114,116,117,118..EUR,GEN,SA197308-197905

FOR NS40Z

sub74411-20110

main74411-20110iRT104,118..EUG;RT10#,11#..ARL,GEN,PHL,SA197308-197905

FOR NS60,N40

74413BOLT, BATTERY CLAMP

main74413-20030iRT10#,11#197308-197905

74481CLAMP, BATTERY HOLD DOWN

main74404-20040iRT10#,11#..EUR,GEN,PHL,SA197308-197905

FOR NS40Z

main74404-20060iRT10#,112,116,117,118..ARL,EUR,GEN197308-197905

FOR NS60

main74404-20070iRT100,104,116,118..EUR,GEN197308-197905

FOR N50Z

9165140816

main91651-40816

9165660816

main91656-60816

9411040600

main94110-40600

9451100600

main94511-00600

9461410600

main94614-10600

8 parts on this diagram · 1 diagram in section
