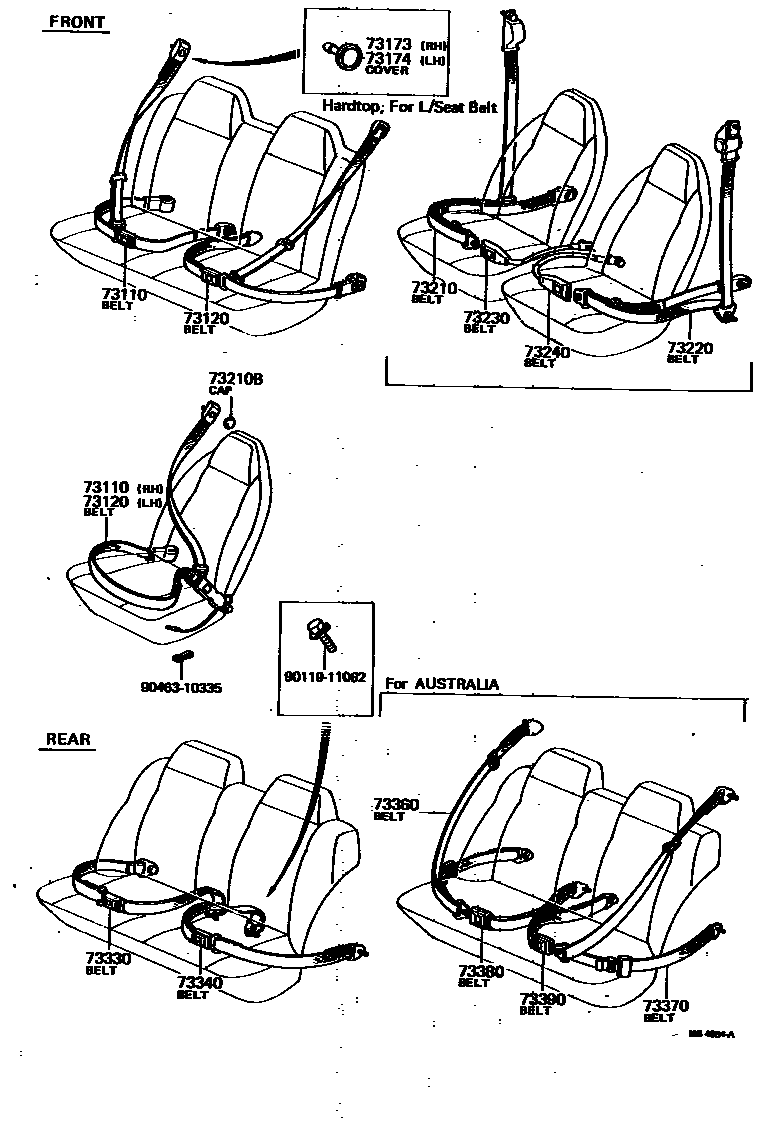

SEAT BELT & CHILD RESTRAINT SEAT

0001 1 0002 1 0003 1

73110BELT ASSY, FRONT SEAT 3 POINT TYPE, RH

main71910-20100-01iRT100,102..3FC,3H,4F197308-197509

SP.BLACK,BLACK,TRIM2#

sub71910-20100

main71910-20100-03iRT100,102..LHD197308-197408

SP.GRAY,GRAY,TRIM1#

sub71910-20100

main71910-20100-04iRT100,102..LHD197308-197408

SP.BLUE,BLUE,TRIM8#

sub71910-20100

main71910-20100-06iRT100,102,116,117..LHD197308-197509

SP.OLIVE-BROWN,BROWN,TRIM4#

sub71910-20100

main71910-20110-01iRT100,116..RHD..3H197308-197509

BN,BLACK,BLACK,TRIM2#

sub71910-20110

main71910-20110-01iRT102,104..SA197308-197509

SP.BLACK,BLACK,TRIM2#

sub71910-20110

main71910-20110-03iRT100,116..RHD..3H197308-197408

SP.GRAY,GRAY,TRIM1#

sub71910-20110

main71910-20110-03iRT102,104,118..ARL,SA197308-197408

BN.GRAY,GRAY,TRIM1#

sub71910-20110

main71910-20110-04iRT102,104,118..ARL,SA197308-197408

BN.BLUE,BLUE,TRIM8#

sub71910-20110

main71910-20110-04iRT102,104,118..ARL,SA197308-197408

SP.BLUE,BLUE,TRIM8#

sub71910-20110

main71910-20110-06iRT102,104,118..ARL,SA197308-197509

SP.OLIVE-BROWN,BROWN,TRIM4#

sub71910-20110

main71910-20110-06iRT100,116..RHD..3H197308-197509

BN.OLIVE-BROWN,BROWN,TRIM4#

sub71910-20110

main71910-20160-01iRT102,104..SA197509-197511

BLACK,BLACK,TRIM2#

sub71910-20160

main71910-20160-06iRT102,104..SA197509-197511

BROWN,BROWN,TRIM4#

sub71910-20160

main71920-20100-01iRT112,114197308-197701

SP.BLACK,BLACK,TRIM2#

sub71920-20100

main71920-20100-03iRT112,114197308-197408

SP.GRAY,GRAY,TRIM1#

sub71920-20100

main71920-20100-04iRT112,114197308-197408

SP.BLUE,BLUE,TRIM8#

sub71920-20100

main71920-20100-06iRT112,114197308-197701

SP.OLIVE-BROWN,BROWN,TRIM4#

sub71920-20100

main73110-20090-01iRT102,104..SA197511-197701

BLACK,BLACK,TRIM2#

sub73110-20090

main73110-20090-06iRT102,104..SA197511-197701

BROWN,BROWN,TRIM4#

sub73110-20090

73120BELT ASSY, FRONT SEAT 3 POINT TYPE, LH

main71910-20100-01iRT116..RHD..4F197308-197509

SP.BLACK,BLACK,TRIM2#

sub71910-20100

main71910-20100-03iRT100,102..LHD197308-197408

SP.GRAY,GRAY,TRIM1#

sub71910-20100

main71910-20100-04iRT100,102..LHD197308-197408

SP.BLUE,BLUE,TRIM8#

sub71910-20100

main71910-20100-06iRT102..(3FC,4F)..EUG197308-197509

SP.OLIVE-BROWN,BROWN,TRIM4#

sub71910-20100

main71910-20110-01iRT102,104,118..ARL,SA197308-197509

SP.BLACK,BLACK,TRIM2#

sub71910-20110

main71910-20110-01iRT100,116..RHD..3H197308-197509

BLACK,BLACK,TRIM2#

sub71910-20110

main71910-20110-03iRT100,116..RHD..3H197308-197408

SP.GRAY,GRAY,TRIM1#

sub71910-20110

main71910-20110-03iRT102,104,118..ARL,SA197308-197408

BN.GRAY,GRAY,TRIM1#

sub71910-20110

main71910-20110-04iRT102,104,118..ARL,SA197308-197408

BN.BLUE,BLUE,TRIM8#

sub71910-20110

main71910-20110-04iRT102,104,118..ARL,SA197308-197408

SP.BLUE,BLUE,TRIM8#

sub71910-20110

main71910-20110-06iRT102,104,118..ARL,SA197308-197509

SP.OLIVE-BROWN,BROWN,TRIM4#

sub71910-20110

main71910-20110-06iRT100,116..RHD..3H197308-197509

BN.OLIVE-BROWN,BROWN,TRIM4#

sub71910-20110

main71910-20160-01iRT102,104..SA197509-197511

BLACK,BLACK,TRIM2#

sub71910-20160

main71910-20160-06iRT102,104..SA197509-197511

BROWN,BROWN,TRIM4#

sub71910-20160

main71920-20100-01iRT112,114197308-197701

SP.BLACK,BLACK,TRIM2#

sub71920-20100

main71920-20100-03iRT112,114197308-197408

SP.GRAY,GRAY,TRIM1#

sub71920-20100

main71920-20100-04iRT112,114197308-197408

SP.BLUE,BLUE,TRIM8#

sub71920-20100

main71920-20100-06iRT112,114197308-197701

SP.OLIVE-BROWN,BROWN,TRIM4#

sub71920-20100

main73110-20090-01iRT102,104..SA197511-197701

BLACK,BLACK,TRIM2#

sub73110-20090

main73110-20090-06iRT102,104..SA197511-197701

BROWN,BROWN,TRIM4#

sub73110-20090

73173COVER, FRONT SEAT BELT HOLE, RH

main71916-20010iRT112197308-197701

main71916-20010-05iRT114..GEN197701-197808

BEIGE,BEIGE,TRIM4#

sub71916-20010

main71916-20010-13iRT114..GEN197701-197808

GRAY,GRAY,TRIM1#,2#

sub71916-20010

73174COVER, FRONT SEAT BELT HOLE, LH

main71916-20010iRT112197308-197701

main71916-20010-05iRT114..GEN197701-197808

BEIGE,BEIGE,TRIM4#

sub71916-20010

main71916-20010-13iRT114..GEN197701-197808

GRAY,GRAY,TRIM1#,2#

sub71916-20010

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-20010iRT104,118..ARL197501-197701

main73210-20011-01iRT104,118..ARL197701-197905

BLACK,BLACK,TRIM2#

sub73210-20011

main73210-20011-03iRT104,118..ARL197701-197905

GRAY,GRAY,TRIM1#

sub73210-20011

main73210-20011-05iRT104,118..ARL197701-197905

BEIGE,BEIGE,TRIM4#

sub73210-20011

main73210-20030-01iRT100,104,116,118..GEN,PHL197509-197701

BLACK,BLACK,TRIM2#

sub73210-20030

main73210-20030-06iRT100,104,116,118..GEN,PHL197509-197701

BROWN,BROWN,TRIM4#

sub73210-20030

main73210-20110-01iRT10#,116,118..GEN,SA197701-197905

BLACK,BLACK,TRIM2#

sub73210-20110

main73210-20110-03iRT10#,116,118..GEN,SA197701-197905

GRAY,GRAY,TRIM1#

sub73210-20110

main73210-20110-05iRT10#,116,118..GEN,SA197701-197905

BEIGE,BEIGE,TRIM4#

sub73210-20110

main73210-20130-01iRT118..EUR;RT104..EUG;RT104..3FC..SDN197701-197808

BLACK,BLACK,TRIM2#

sub73210-20130

main73210-20130-03iRT118..EUR;RT104..EUG;RT104..3FC..SDN197701-197808

GRAY,GRAY,TRIM1#

sub73210-20130

main73210-20130-05iRT118..EUR;RT104..EUG;RT104..3FC..SDN197701-197808

BEIGE,BEIGE,TRIM4#

sub73210-20130

main73210-95501-01iRT114197701-197808

BLACK,BLACK,TRIM2#

main73210-95501-03iRT114..RHD197701-197808

GRAY,GRAY,TRIM1#

main73210-95501-05iRT114..RHD197701-197808

BEIGE,BEIGE,TRIM4#

73210BCAP (FOR FRONT SEAT OUTER BELT)

main71918-22010-01iRT10#,11#197509-197701

BLACK,BLACK,TRIM2#

main71918-22010-06iRT10#,11#197509-197701

BROWN,BROWN,TRIM4#

main73178-12010-03iRT114..RHD197701-197905

GRAY,GRAY,TRIM1#

sub73178-12010

main73178-12010-11iRT10#,11#..ARL,EUR,GEN,SA197701-197905

BLACK,BLACK,TRIM2#

sub73178-12010

main73178-12010-15iRT10#,11#..ARL,EUR,GEN,SA197701-197905

BEIGE,BEIGE,TRIM4#

sub73178-12010

73220BELT ASSY, FRONT SEAT OUTER, LH

main73210-20010iRT104,118..ARL197501-197701

main73210-20011-01iRT104,118..ARL197701-197905

BLACK,BLACK,TRIM2#

sub73210-20011

main73210-20011-03iRT104,118..ARL197701-197905

GRAY,GRAY,TRIM1#

sub73210-20011

main73210-20011-05iRT104,118..ARL197701-197905

BEIGE,BEIGE,TRIM4#

sub73210-20011

main73210-20030-01iRT100,104,116,118..GEN,PHL197509-197701

BLACK,BLACK,TRIM2#

sub73210-20030

main73210-20030-06iRT100,104,116,118..GEN,PHL197509-197701

BROWN,BROWN,TRIM4#

sub73210-20030

main73210-20130-01iRT118..EUR;RT104..EUG;RT104..3FC..SDN197701-197808

BLACK,BLACK,TRIM2#

sub73210-20130

main73210-20130-03iRT118..EUR;RT104..EUG;RT104..3FC..SDN197701-197808

GRAY,GRAY,TRIM1#

sub73210-20130

main73210-20130-05iRT118..EUR;RT104..EUG;RT104..3FC..SDN197701-197808

BEIGE,BEIGE,TRIM4#

sub73210-20130

main73220-20050-01iRT10#,116,118..GEN,SA197701-197905

BLACK,BLACK,TRIM2#

sub73220-20050

main73220-20050-03iRT10#,116,118..GEN,SA197701-197905

GRAY,GRAY,TRIM1#

sub73220-20050

main73220-20050-05iRT10#,116,118..GEN,SA197701-197905

BEIGE,BEIGE,TRIM4#

sub73220-20050

main73220-95501-01iRT114..RHD197701-197808

BLACK,BLACK,TRIM2#

main73220-95501-03iRT114..RHD197701-197808

GRAY,GRAY,TRIM1#

main73220-95501-05iRT114197701-197808

BEIGE,BEIGE,TRIM4#

73230BELT ASSY, FRONT SEAT INNER, RH

main71083-20010iRT100,116..LHD197509-197701

SP.

main73230-20010iRT104,118..ARL197501-197701

main73230-20011-01iRT104,118..ARL197701-197905

BLACK,BLACK,TRIM2#

sub73230-20011

main73230-20011-03iRT104,118..ARL197701-197905

GRAY,GRAY,TRIM1#

sub73230-20011

main73230-20011-05iRT104,118..ARL197701-197905

BEIGE,BEIGE,TRIM4#

sub73230-20011

main73230-20020-01iRT100,116..RHD..3H197509-197701

BN.BLACK,BLACK,TRIM2#

sub73230-20020

main73230-20020-06iRT100,116..RHD..3H197509-197701

BN.BROWN,BROWN,TRIM4#

sub73230-20020

main73230-20060-01iRT100..3H;RT116..RHD..3H197701-197808

BLACK,BLACK,TRIM2#

main73230-20060-05iRT100..3H;RT116..RHD..3H197701-197808

BEIGE,BEIGE,TRIM4#

main73230-20110-01iRT114,116;RT100..LHD;RT100..RHD..4F;RT100..RHD..3H..DLX197701-197905

BLACK,BLACK,TRIM2#

sub73230-20110

main73230-20110-03iRT114,116;RT100..LHD;RT100..RHD..4F;RT100..RHD..3H..DLX197701-197905

GRAY,GRAY,TRIM1#

sub73230-20110

main73230-20110-05iRT102,104,118..GEN,SA197701-197905

BEIGE,BEIGE,TRIM4#

sub73230-20110

main73230-20120-01iRT118..EUR;RT104..EUG;RT104..3FC..SDN197701-197808

BLACK,BLACK,TRIM2#

sub73230-20120

main73230-20120-03iRT118..EUR;RT104..EUG;RT104..3FC..SDN197701-197808

GRAY,GRAY,TRIM1#

sub73230-20120

main73230-20120-05iRT118..EUR;RT104..EUG;RT104..3FC..SDN197701-197808

BEIGE,BEIGE,TRIM4#

sub73230-20120

73240BELT ASSY, FRONT SEAT INNER, LH

main71083-20010iRT100,116..LHD197509-197701

SP.

main73230-20010iRT104,118..ARL197501-197701

main73230-20011-01iRT104,118..ARL197701-197905

BLACK,BLACK,TRIM2#

sub73230-20011

main73230-20011-03iRT104,118..ARL197701-197905

GRAY,GRAY,TRIM1#

sub73230-20011

main73230-20011-05iRT104,118..ARL197701-197905

BEIGE,BEIGE,TRIM4#

sub73230-20011

main73230-20020-01iRT100,116..RHD..3H197509-197701

BN.BLACK,BLACK,TRIM2#

sub73230-20020

main73230-20020-06iRT100,116..RHD..3H197509-197701

BN.BROWN,BROWN,TRIM4#

sub73230-20020

main73230-20100-01iRT100..3H;RT116..RHD..3H197701-197808

BLACK,BLACK,TRIM2#

sub73230-20100

main73230-20100-05iRT100..3H;RT116..RHD..3H197701-197808

BEIGE,BEIGE,TRIM4#

sub73230-20100

main73230-20110-01iRT114,116;RT100..LHD;RT100..RHD..4F;RT100..RHD..3H..DLX197701-197905

BLACK,BLACK,TRIM2#

sub73230-20110

main73230-20110-03iRT102,104,118..GEN,SA197701-197905

GRAY,GRAY,TRIM1#

sub73230-20110

main73230-20110-05iRT102,104,118..GEN,SA197701-197905

BEIGE,BEIGE,TRIM4#

sub73230-20110

main73230-20120-01iRT118..EUR;RT104..EUG;RT104..3FC..SDN197701-197808

BLACK,BLACK,TRIM2#

sub73230-20120

main73230-20120-03iRT118..EUR;RT104..EUG;RT104..3FC..SDN197701-197808

GRAY,GRAY,TRIM1#

sub73230-20120

main73230-20120-05iRT118..EUR;RT104..EUG;RT104..3FC..SDN197701-197808

BEIGE,BEIGE,TRIM4#

sub73230-20120

73330BELT ASSY, REAR SEAT LAP TYPE, RH

main71930-20070-01iRT10#,112..ARL,EUR,GEN197401-197504

BLACK,BLACK,TRIM2#

sub71930-20070

main71930-20070-01iRT10#,112,116,117,118..ARL,EUR,GEN197308-197401

EX/E.C.E. BLACK,BLACK,TRIM2#

sub71930-20070

main71930-20070-03iRT10#,112,116,117,118..ARL,EUR,GEN197308-197401

EX/E.C.E. GRAY,GRAY,TRIM1#

sub71930-20070

main71930-20070-03iRT10#,112..ARL,EUR,GEN197401-197408

GRAY,GRAY,TRIM1#

sub71930-20070

main71930-20070-04iRT10#,112..ARL,EUR,GEN197308-197408

BLUE,BLUE,TRIM8#

sub71930-20070

main71930-20070-06iRT10#,112,116,117,118..ARL,EUR,GEN197308-197401

EX/E.C.E. OLIVE-BROWN,BROWN,TRIM4#

sub71930-20070

main71930-20070-06iRT10#,112..ARL,EUR,GEN197401-197504

OLIVE-BROWN,BROWN,TRIM4#

sub71930-20070

main71930-20071-01iRT100,104,114..GEN,PHL197504-197905

BLACK,BLACK,TRIM2#

sub71930-20071

main71930-20071-03iRT100,104..GEN197701-197905

GRAY,GRAY,TRIM1#

sub71930-20071

main71930-20071-05iRT100,104..GEN197701-197905

BEIGE,BEIGE,TRIM4#

sub71930-20071

main71930-20071-06iRT104..STD..EUG197509-197701

BROWN,BROWN,TRIM4#

sub71930-20071

main71930-20071-06iRT100,102,112..GEN197504-197509

OLIVE-BROWN,BROWN,TRIM4#

sub71930-20071

main71930-21030-01iRT116,117..GEN197401-197505

BLACK,BLACK,TRIM2#

sub71930-21030

main71930-21030-03iRT116,117,118197401-197408

GRAY,GRAY,TRIM1#

sub71930-21030

main71930-21030-06iRT116,117,118..ARL,GEN197401-197505

OLIVE-BROWN,BROWN,TRIM4#

sub71930-21030

main71930-21031-01iRT116,117,118..GEN,PHL197505-197701

BLACK,BLACK,TRIM2#

main71930-21031-05iRT116,118..GEN197701-197905

BEIGE,BEIGE,TRIM4#

main71930-21031-06iRT116,117,118..GEN,PHL197505-197701

OLIVE-BROWN,BROWN,TRIM4#

main71930-21031-11iRT116,118..GEN197701-197905

BLACK,BLACK,TRIM2#

73340BELT ASSY, REAR SEAT LAP TYPE, LH

main71930-20070-01iRT10#,112..ARL,GEN197401-197504

BLACK,BLACK,TRIM2#

sub71930-20070

main71930-20070-01iRT10#,112,116,117,118..ARL,EUR,GEN197308-197401

EX/E.C.E. BLACK,BLACK,TRIM2#

sub71930-20070

main71930-20070-03iRT10#,112,116,117,118..ARL,EUR,GEN197308-197401

EX/E.C.E. GRAY,GRAY,TRIM1#

sub71930-20070

main71930-20070-03iRT10#,112..ARL,EUR,GEN197401-197408

GRAY,GRAY,TRIM1#

sub71930-20070

main71930-20070-04iRT10#,112..ARL,EUR,GEN197308-197408

BLUE,BLUE,TRIM8#

sub71930-20070

main71930-20070-06iRT100,102,112..GEN197401-197504

OLIVE-BROWN,BROWN,TRIM4#

sub71930-20070

main71930-20070-06iRT10#,112,116,117,118..ARL,EUR,GEN197308-197401

EX/E.C.E. OLIVE-BROWN,BROWN,TRIM4#

sub71930-20070

main71930-20071-01iRT100,104,114..GEN,PHL197504-197905

BLACK,BLACK,TRIM2#

sub71930-20071

main71930-20071-03iRT100,104,114..GEN197701-197905

GRAY,GRAY,TRIM1#

sub71930-20071

main71930-20071-05iRT100,104,114..GEN197701-197905

BEIGE,BEIGE,TRIM4#

sub71930-20071

main71930-20071-06iRT104..STD..EUG197509-197701

BROWN,BROWN,TRIM4#

sub71930-20071

main71930-20071-06iRT100,102,112..GEN197504-197509

OLIVE-BROWN,BROWN,TRIM4#

sub71930-20071

main71930-21030-01iRT116,117,118197401-197505

BLACK,BLACK,TRIM2#

sub71930-21030

main71930-21030-03iRT116,117,118197401-197408

GRAY,GRAY,TRIM1#

sub71930-21030

main71930-21030-06iRT116,117,118197401-197505

OLIVE-BROWN,BROWN,TRIM4#

sub71930-21030

main71930-21031-01iRT116,117,118..GEN,PHL197505-197701

BLACK,BLACK,TRIM2#

main71930-21031-05iRT116,118..GEN197701-197905

BEIGE,BEIGE,TRIM4#

main71930-21031-06iRT116,117,118..GEN,PHL197505-197701

OLIVE-BROWN,BROWN,TRIM4#

main71930-21031-11iRT116,118..GEN197701-197905

BLACK,BLACK,TRIM2#

73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH

main73360-20010iRT104..ARL197501-197701

main73360-20011-01iRT104..ARL197701-197905

BLACK,BLACK,TRIM2#

sub73360-20011

main73360-20011-03iRT104..ARL197701-197905

GRAY,GRAY,TRIM1#

sub73360-20011

main73360-20011-05iRT104..ARL197701-197905

BEIGE,BEIGE,TRIM4#

sub73360-20011

main73360-21010iRT118..ARL197501-197701

main73360-21011-01iRT118..ARL197701-197905

BLACK,BLACK,TRIM2#

sub73360-21011

main73360-21011-05iRT118..ARL197701-197905

BEIGE,BEIGE,TRIM4#

sub73360-21011

73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH

main73360-20010iRT104..ARL197501-197701

main73360-20011-01iRT104..ARL197701-197905

BLACK,BLACK,TRIM2#

sub73360-20011

main73360-20011-03iRT104..ARL197701-197905

GRAY,GRAY,TRIM1#

sub73360-20011

main73360-20011-05iRT104..ARL197701-197905

BEIGE,BEIGE,TRIM4#

sub73360-20011

main73360-21010iRT118..ARL197501-197701

main73360-21011-01iRT118..ARL197701-197905

BLACK,BLACK,TRIM2#

sub73360-21011

main73360-21011-05iRT118..ARL197701-197905

BEIGE,BEIGE,TRIM4#

sub73360-21011

73380BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH

main73380-20010iRT104..ARL197501-197701

sub73380-30010

main73380-20011-01iRT104..ARL197701-197905

BLACK,BLACK,TRIM2#

sub73380-20011

main73380-20011-03iRT104..ARL197701-197905

GRAY,GRAY,TRIM1#

sub73380-20011

main73380-20011-05iRT104..ARL197701-197905

BEIGE,BEIGE,TRIM4#

sub73380-20011

main73380-21010iRT118..ARL197501-197701

main73380-21011-01iRT118..ARL197701-197905

BLACK,BLACK,TRIM2#

sub73380-21011

main73380-21011-05iRT118..ARL197701-197905

BEIGE,BEIGE,TRIM4#

sub73380-21011

73390BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH

main73380-20010iRT104..ARL197501-197701

sub73380-30010

main73380-20011-01iRT104..ARL197701-197905

BLACK,BLACK,TRIM2#

sub73380-20011

main73380-20011-03iRT104..ARL197701-197905

GRAY,GRAY,TRIM1#

sub73380-20011

main73380-20011-05iRT104..ARL197701-197905

BEIGE,BEIGE,TRIM4#

sub73380-20011

main73380-21010iRT118..ARL197501-197701

main73380-21011-01iRT118..ARL197701-197905

BLACK,BLACK,TRIM2#

sub73380-21011

main73380-21011-05iRT118..ARL197701-197905

BEIGE,BEIGE,TRIM4#

sub73380-21011

9011911062

main90119-11062

9046310335

main90463-10335

17 parts on this diagram · 3 diagrams in section
