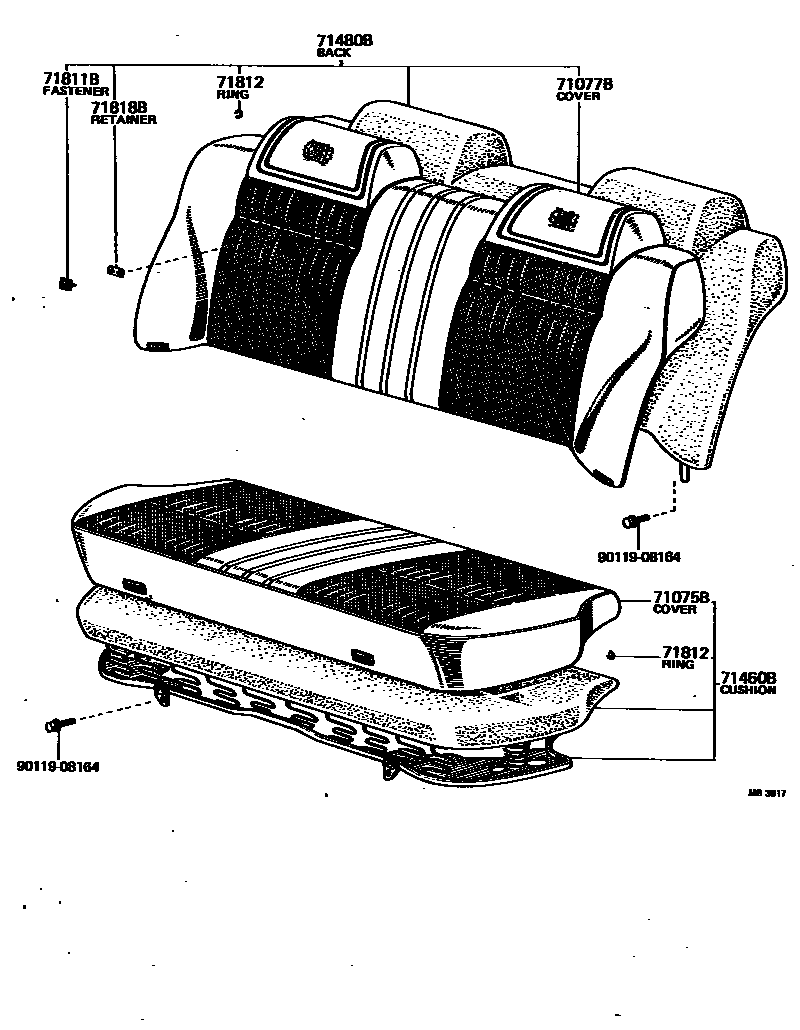

REAR SEAT & SEAT TRACK

0001 1 0003 1 0004 1

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-20260-01iRT112,114197308-197701

FB.BLACK,BLACK,TRIM2#

main71075-20260-03iRT112,114197308-197408

FB.GRAY,GRAY,TRIM1#

main71075-20260-04iRT112,114197308-197408

FB.BLUE,BLUE,TRIM8#

main71075-20260-05iRT112,114197408-197701

FB.BEIGE,BEIGE,TRIM4#

main71075-20260-06iRT112,114197308-197701

FB.OLIVE-BROWN,BROWN,TRIM4#

main71075-20320-01iRT100,102..DLX197308-197701

FB.BLACK,BLACK,TRIM2#

main71075-20320-03iRT100,102..DLX197308-197408

FB.GRAY,GRAY,TRIM1#

main71075-20320-04iRT100,102..DLX197308-197408

FB.BLUE,BLUE,TRIM8#

main71075-20320-05iRT100,102..DLX197408-197701

FB.BEIGE,BEIGE,TRIM4#

main71075-20320-06iRT100,102..DLX197308-197509

FB.OLIVE-BROWN,BROWN,TRIM4#

main71075-20320-06iRT100,104..DLX197509-197701

FB.BROWN,BROWN,TRIM4#

main71075-20321-01iRT104..ARL197701-197905

FB.BLACK,BLACK,TRIM2#

main71075-20321-03iRT104..ARL197701-197905

FB.GRAY,GRAY,TRIM1#

main71075-20321-05iRT104..ARL197701-197905

FB.BEIGE,BEIGE,TRIM4#

main71075-20330-01iRT100..RHD..3H..STD197308-197701

VL.BLACK,BLACK,TRIM2#

main71075-20330-03iRT100..RHD..3H..STD197308-197408

VL.GRAY,GRAY,TRIM1#

main71075-20330-04iRT100..RHD..3H..STD197308-197408

VL.BLUE,BLUE,TRIM8#

main71075-20330-05iRT100..RHD..3H..STD197408-197701

VL.BEIGE,BEIGE,TRIM4#

main71075-20330-06iRT100..3H..STD197308-197701

VL.OLIVE-BROWN,BROWN,TRIM4#

main71075-20331-01iRT100..3H..STD197701-197808

VL.BLACK,BLACK,TRIM2#

sub71075-20331

main71075-20331-03iRT100..3H..STD197701-197808

VL.GRAY,GRAY,TRIM1#

sub71075-20331

main71075-20331-05iRT100..3H..STD197701-197808

VL.BEIGE,BEIGE,TRIM4#

sub71075-20331

main71075-20340-01iRT102,104..DLX..EUR197409-197701

FB.BLACK,BLACK,TRIM2#

main71075-20340-05iRT104..DLX..EUR197509-197701

FB,BEIGE,BEIGE,TRIM4#

main71075-20340-05iRT102,104..DLX..EUR197409-197509

FB.BEIGE,BEIGE,TRIM4#

main71075-20340-06iRT104..DLX..EUR197509-197701

FB.BROWN,BROWN,TRIM4#

main71075-20340-06iRT102,104..DLX..EUR197409-197509

FB.OLIVE-BROWN,BROWN,TRIM4#

main71075-20341-01iRT104..3FC..SA;RT104..DLX..(EUR,GEN)197701-197808

FB.BLACK,BLACK,TRIM2#

main71075-20341-03iRT104..3FC..SA;RT104..DLX..(EUR,GEN)197701-197808

FB.GRAY,GRAY,TRIM1#

main71075-20341-05iRT104..3FC..SA;RT104..DLX..(EUR,GEN)197701-197808

FB.BEIGE,BEIGE,TRIM4#

main71075-20360-01iRT102,104;RT100..LHD;RT100..RHD..4F;RT100..RHD..3H..DLX197308-197701

PF.BLACK,BLACK,TRIM2#

main71075-20360-03iRT100..LHD;RT102,104..4D;RT100..RHD..4F;RT100..RHD..3H..DLX197308-197408

PF.GRAY,GRAY,TRIM1#

main71075-20360-04iRT100..LHD;RT102,104..4D;RT100..RHD..4F;RT100..RHD..3H..DLX197308-197408

PF.BLUE,BLUE,TRIM8#

main71075-20360-05iRT100..LHD;RT102,104..4D;RT100..RHD..4F;RT100..RHD..3H..DLX197408-197701

PF.BEIGE,BEIGE,TRIM4#

main71075-20360-06iRT100..LHD;RT102,104..4D;RT100..RHD..4F;RT100..RHD..3H..DLX197308-197509

PF.OLIVE-BROWN,BROWN,TRIM4#

main71075-20360-06iRT102,104;RT100..LHD;RT100..RHD..4F;RT100..RHD..3H..DLX197509-197701

PF.BROWN,BROWN,TRIM4#

main71075-20361-01iRT100..LHD;RT100..RHD..4F;RT100..RHD..3H..DLX197701-197905

PF.BLACK,BLACK,TRIM2#

sub71075-20391

main71075-20361-03iRT104..EUG;RT102,104..ARL,GEN,SA197701-197905

PF.GRAY,GRAY,TRIM1#

sub71075-20391

main71075-20361-05iRT104..EUG;RT102,104..ARL,GEN,SA197701-197905

PF.BEIGE,BEIGE,TRIM4#

sub71075-20391

main71075-20410-01iRT104..2D197308-197411

PF.BLACK,BLACK,TRIM2#

main71075-20410-03iRT104..2D197308-197408

PF.GRAY,GRAY,TRIM1#

main71075-20410-04iRT104..2D197308-197408

PF.BLUE,BLUE,TRIM8#

main71075-20410-05iRT104..2D197408-197411

PF.BEIGE,BEIGE,TRIM4#

main71075-20410-06iRT104..2D197308-197411

PF.OLIVE-BROWN,BROWN,TRIM4#

main71075-20480-01iRT110,114..GEN,PHL197308-197701

PF.BLACK,BLACK,TRIM2#

main71075-20480-03iRT110,112197308-197408

PF.GRAY,GRAY,TRIM1#

main71075-20480-04iRT110,112197308-197408

PF.BLUE,BLUE,TRIM8#

main71075-20480-05iRT110,112197408-197701

PF.BEIGE,BEIGE,TRIM4#

main71075-20480-06iRT110,112197308-197509

PF.OLIVE-BROWN,BROWN,TRIM4#

main71075-20480-06iRT110,114..GEN,PHL197509-197701

PF.BROWN,BROWN,TRIM4#

main71075-21020-01iRT116..RHD..3H197308-197504

VL.BLACK,BLACK,TRIM2#

sub71075-21021

main71075-21020-05iRT116..RHD..3H197408-197504

VL.BEIGE,BEIGE,TRIM4#

sub71075-21021

main71075-21020-06iRT116..RHD..3H197308-197504

VL.BROWN,BROWN,TRIM4#

sub71075-21021

main71075-21021-01iRT116..RHD..3H197504-197701

VL.BLACK,BLACK,TRIM2#

main71075-21021-05iRT116..RHD..3H197504-197701

VL.BEIGE,BEIGE,TRIM4#

main71075-21021-06iRT116..RHD..3H197504-197701

VL.BROWN,BROWN,TRIM4#

main71075-21030-01iRT117,118;RT116..LHD;RT116..RHD..4F197308-197504

PF.BLACK,BLACK,TRIM2#

sub71075-21031

main71075-21030-05iRT117,118;RT116..LHD;RT116..RHD..4F197408-197504

PF.BEIGE,BEIGE,TRIM4#

sub71075-21031

main71075-21030-06iRT117,118;RT116..LHD;RT116..RHD..4F197308-197504

PF.BROWN,BROWN,TRIM4#

sub71075-21031

main71075-21031-01iRT117,118;RT116..LHD;RT116..RHD..4F197504-197701

PF.BLACK,BLACK,TRIM2#

main71075-21031-05iRT117,118;RT116..LHD;RT116..RHD..4F197504-197701

PF.BEIGE,BEIGE,TRIM4#

main71075-21031-06iRT117,118;RT116..LHD;RT116..RHD..4F197504-197701

PF.BROWN,BROWN,TRIM4#

main71075-21080-01iRT118..EUR197409-197701

FB.BLACK,BLACK,TRIM2#

main71075-21080-05iRT118..EUR197409-197701

FB.BEIGE,BEIGE,TRIM4#

main71075-21080-06iRT118..SDN197409-197701

FB.BROWN,BROWN,TRIM4#

main71075-21090-01iRT116,118..ARL,GEN,PHL197701-197905

VL.BLACK,BLACK,TRIM2#

main71075-21090-05iRT116..RHD..3H197701-197905

VL.BEIGE,BEIGE,TRIM4#

main71075-21110-01iRT118..EUR197701-197808

FB.BLACK,BLACK,TRIM2#

main71075-21110-05iRT118..EUR197701-197808

FB.BEIGE,BEIGE,TRIM4#

main71075-21120-01iRT116..LHD;RT116..RHD..4F197701-197905

PF.BLACK,BLACK,TRIM2#

main71075-21120-05iRT118..EUG;RT118..ARL,GEN197701-197905

PF.BEIGE,BEIGE,TRIM4#

main71075-95505-01iRT114..RHD197701-197808

FB.BLACK,BLACK,TRIM2#

main71075-95505-03iRT114..RHD197701-197808

FB.GRAY,GRAY,TRIM1#

main71075-95505-05iRT114..GEN197701-197808

FB.BEIGE,BEIGE,TRIM4#

main71075-95508-01iRT114..LHD197701-197808

PF.BLACK,BLACK,TRIM2#

main71075-95508-03iRT114197701-197808

PF.GRAY,GRAY,TRIM1#

main71075-95508-05iRT114..LHD197701-197808

PF.BEIGE,BEIGE,TRIM4#

71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)

main71077-20240-01iRT112,114197308-197701

FB.BLACK,BLACK,TRIM2#

main71077-20240-03iRT112,114197308-197408

FB.GRAY,GRAY,TRIM1#

main71077-20240-04iRT112,114197308-197408

FB.BLUE,BLUE,TRIM8#

main71077-20240-05iRT112,114197408-197701

FB.BEIGE,BEIGE,TRIM4#

main71077-20240-06iRT112,114197308-197701

FB.OLIVE-BROWN,BROWN,TRIM4#

main71077-20300-01iRT100,104..DLX197308-197701

FB.BLACK,BLACK,TRIM2#

main71077-20300-03iRT100,102..DLX197308-197408

FB.GRAY,GRAY,TRIM1#

main71077-20300-04iRT100,102..DLX197308-197408

FB.BLUE,BLUE,TRIM8#

main71077-20300-05iRT100,102..DLX197408-197701

FB.BEIGE,BEIGE,TRIM4#

main71077-20300-06iRT100,104..DLX197509-197701

FB.BROWN,BROWN,TRIM4#

main71077-20300-06iRT100,102..DLX197308-197509

FB.OLIVE-BROWN,BROWN,TRIM4#

main71077-20301-01iRT104..ARL197701-197905

FB.BLACK,BLACK,TRIM2#

main71077-20301-03iRT104..ARL197701-197905

FB.GRAY,GRAY,TRIM1#

main71077-20301-05iRT104..ARL197701-197905

FB.BEIGE,BEIGE,TRIM4#

main71077-20310-01iRT100..3H..STD197308-197701

VL.BLACK,BLACK,TRIM2#

main71077-20310-03iRT100..RHD..3H..STD197308-197408

VL.GRAY,GRAY,TRIM1#

main71077-20310-04iRT100..RHD..3H..STD197308-197408

VL.BLUE,BLUE,TRIM8#

main71077-20310-05iRT100..RHD..3H..STD197408-197701

VL.BEIGE,BEIGE,TRIM4#

main71077-20310-06iRT100..3H..STD197308-197701

VL.OLIVE-BROWN,BROWN,TRIM4#

main71077-20311-01iRT100..3H..STD197701-197808

VL.BLACK,BLACK,TRIM2#

main71077-20311-03iRT100..3H..STD197701-197808

VL.GRAY,GRAY,TRIM1#

main71077-20311-05iRT100..3H..STD197701-197808

VL.BEIGE,BEIGE,TRIM4#

main71077-20340-01iRT102,104;RT100..LHD;RT100..RHD..4F;RT100..RHD..3H..DLX197308-197701

PF.BLACK,BLACK,TRIM2#

main71077-20340-03iRT102,104;RT100..LHD;RT100..RHD..4F;RT100..RHD..3H..DLX197308-197408

PF.GRAY,GRAY,TRIM1#

main71077-20340-04iRT102,104;RT100..LHD;RT100..RHD..4F;RT100..RHD..3H..DLX197308-197408

PF.BLUE,BLUE,TRIM8#

main71077-20340-05iRT102,104;RT100..LHD;RT100..RHD..4F;RT100..RHD..3H..DLX197408-197701

PF.BEIGE,BEIGE,TRIM4#

main71077-20340-06iRT102,104;RT100..LHD;RT100..RHD..4F;RT100..RHD..3H..DLX197308-197509

PF.OLIVE-BROWN,BROWN,TRIM4#

main71077-20340-06iRT102,104;RT100..LHD;RT100..RHD..4F;RT100..RHD..3H..DLX197509-197701

PF.BROWN,BROWN,TRIM4#

main71077-20341-01iRT10#..ARL,GEN,PHL,SA197701-197905

PF.BLACK,BLACK,TRIM2#

sub71077-20371

main71077-20341-03iRT100..LHD..3H;RT100..RHD..3H..DLX197701-197905

PF.GRAY,GRAY,TRIM1#

sub71077-20371

main71077-20341-05iRT100..LHD..3H;RT100..RHD..3H..DLX197701-197905

PF.BEIGE,BEIGE,TRIM4#

sub71077-20371

main71077-20440-01iRT110,112197308-197701

PF.BLACK,BLACK,TRIM2#

main71077-20440-03iRT110,112197308-197408

PF.GRAY,GRAY,TRIM1#

main71077-20440-04iRT110,112197308-197408

PF.BLUE,BLUE,TRIM8#

main71077-20440-05iRT110,112197408-197701

PF.BEIGE,BEIGE,TRIM4#

main71077-20440-06iRT110,112197308-197509

PF.OLIVE-BROWN,BROWN,TRIM4#

main71077-20440-06iRT110,114..GEN,PHL197509-197701

PF.BROWN,BROWN,TRIM4#

main71077-20500-01iRT104..DLX..EUR197409-197701

FB.BLACK,BLACK,TRIM2#

main71077-20500-05iRT102,104..DLX..EUR197409-197701

FB.BEIGE,BEIGE,TRIM4#

main71077-20500-06iRT104..DLX..EUR197409-197701

FB.BROWN,BROWN,TRIM4#

main71077-20501-01iRT104..RHD..4F..DLX..GEN197701-197905

FB.BLACK,BLACK,TRIM2#

main71077-20501-03iRT104..RHD..4F..DLX..GEN197701-197905

FB.GRAY,GRAY,TRIM1#

main71077-20501-05iRT104..RHD..4F..DLX..GEN197701-197905

FB.BEIGE,BEIGE,TRIM4#

main71077-20550-01iRT104..DLX197701-197905

FB.BLACK,BLACK,TRIM2#

main71077-20550-03iRT104..DLX197701-197905

FB.GRAY,GRAY,TRIM1#

main71077-20550-05iRT104..DLX197701-197905

FB.BEIGE,BEIGE,TRIM4#

main71077-20560-01iRT104..EUG;RT104..3FC..SDN;RT104..ARL,GEN,SA197701-197905

PF.BLACK,BLACK,TRIM2#

main71077-20560-03iRT104..EUG;RT104..3FC..SDN;RT104..ARL,GEN,SA197701-197905

PF.GRAY,GRAY,TRIM1#

main71077-20560-05iRT104..EUG;RT104..3FC..SDN;RT104..ARL,GEN,SA197701-197905

PF.BEIGE,BEIGE,TRIM4#

main71077-21020-01iRT116..RHD..3H197308-197504

VL.BLACK,BLACK,TRIM2#

sub71077-21021

main71077-21020-05iRT116..RHD..3H197408-197504

VL.BEIGE,BEIGE,TRIM4#

sub71077-21021

main71077-21020-06iRT116..RHD..3H197308-197504

VL.BROWN,BROWN,TRIM4#

sub71077-21021

main71077-21021-01iRT116..RHD..3H197504-197701

VL.BLACK,BLACK,TRIM2#

main71077-21021-05iRT116..RHD..3H197504-197701

VL.BEIGE,BEIGE,TRIM4#

main71077-21021-06iRT116..RHD..3H197504-197701

VL.BROWN,BROWN,TRIM4#

main71077-21030-01iRT117,118;RT116..LHD;RT116..RHD..4F197308-197504

PF.BLACK,BLACK,TRIM2#

sub71077-21031

main71077-21030-05iRT117,118;RT116..LHD;RT116..RHD..4F197408-197504

PF.BEIGE,BEIGE,TRIM4#

sub71077-21031

main71077-21030-06iRT117,118;RT116..LHD;RT116..RHD..4F197308-197504

PF.BROWN,BROWN,TRIM4#

sub71077-21031

main71077-21031-01iRT117,118;RT116..LHD;RT116..RHD..4F197504-197509

PF.BLACK,BLACK,TRIM2#

main71077-21031-01iRT118;RT116..LHD;RT116..RHD..4F197509-197701

PF,BLACK,BLACK,TRIM2#

main71077-21031-05iRT118;RT116..LHD;RT116..RHD..4F197504-197701

PF.BEIGE,BEIGE,TRIM4#

main71077-21031-06iRT117,118;RT116..LHD;RT116..RHD..4F197504-197701

PF.BROWN,BROWN,TRIM4#

main71077-21070-01iRT118..SDN197409-197701

FB.BLACK,BLACK,TRIM2#

main71077-21070-05iRT118..SDN197409-197701

FB.BEIGE,BEIGE,TRIM4#

main71077-21070-06iRT118..EUR197409-197701

FB.BROWN,BROWN,TRIM4#

main71077-21080-01iRT116,118..ARL,GEN,PHL197701-197905

VL.BLACK,BLACK,TRIM2#

main71077-21080-05iRT116..RHD..3H197701-197905

VL.BEIGE,BEIGE,TRIM4#

main71077-21100-01iRT118..EUR197701-197808

FB.BLACK,BLACK,TRIM2#

main71077-21100-05iRT118..EUR197701-197808

FB.BEIGE,BEIGE,TRIM4#

main71077-21110-01iRT116..LHD;RT116..RHD..4F197701-197905

PF.BLACK,BLACK,TRIM2#

main71077-21110-05iRT118..EUG;RT118..ARL,GEN197701-197905

PF.BEIGE,BEIGE,TRIM4#

main71077-95508-01iRT114197701-197808

PF.BLACK,BLACK,TRIM2#

main71077-95508-03iRT114..LHD197701-197808

PF.GRAY,GRAY,TRIM1#

main71077-95508-05iRT114..LHD197701-197808

PF.BEIGE,BEIGE,TRIM4#

main71077-95509-01iRT114..RHD197701-197808

FB.BLACK,BLACK,TRIM2#

main71077-95509-03iRT114..RHD197701-197808

FB.GRAY,GRAY,TRIM1#

main71077-95509-05iRT114..GEN197701-197808

FB.BEIGE,BEIGE,TRIM4#

71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

main71460-20290-01iRT112,114197308-197701

FB.BLACK,BLACK,TRIM2#

main71460-20290-03iRT112,114197308-197408

FB.GRAY,GRAY,TRIM1#

main71460-20290-04iRT112,114197308-197408

FB.BLUE,BLUE,TRIM8#

main71460-20290-05iRT112,114197408-197701

FB.BEIGE,BEIGE,TRIM4#

main71460-20290-06iRT112,114197308-197701

FB.OLIVE-BROWN,BROWN,TRIM4#

main71460-20350-01iRT100,102..DLX197308-197701

FB.BLACK,BLACK,TRIM2#

main71460-20350-03iRT100,102..DLX197308-197408

FB.GRAY,GRAY,TRIM1#

main71460-20350-04iRT100,102..DLX197308-197408

FB.BLUE,BLUE,TRIM8#

main71460-20350-05iRT100,102..DLX197408-197701

FB.BEIGE,BEIGE,TRIM4#

main71460-20350-06iRT100,102..DLX197308-197509

FB.OLIVE-BROWN,BROWN,TRIM4#

main71460-20350-06iRT100,104..DLX197509-197701

FB.BROWN,BROWN,TRIM4#

main71460-20351-01iRT104..ARL197701-197905

FB.BLACK,BLACK,TRIM2#

main71460-20351-03iRT104..ARL197701-197905

FB.GRAY,GRAY,TRIM1#

main71460-20351-05iRT104..ARL197701-197905

FB.BEIGE,BEIGE,TRIM4#

main71460-20360-01iRT100..RHD..3H..STD197308-197701

VL.BLACK,BLACK,TRIM2#

main71460-20360-03iRT100..RHD..3H..STD197308-197408

VL.GRAY,GRAY,TRIM1#

main71460-20360-04iRT100..RHD..3H..STD197308-197408

VL.BLUE,BLUE,TRIM8#

main71460-20360-05iRT100..RHD..3H..STD197408-197701

VL.BEIGE,BEIGE,TRIM4#

main71460-20360-06iRT100..RHD..3H..STD197308-197701

VL.OLIVE-BROWN,BROWN,TRIM4#

main71460-20361-01iRT100..3H..STD197701-197808

VL.BLACK,BLACK,TRIM2#

main71460-20370-01iRT102,104..DLX..EUR197409-197701

FB.BLACK,BLACK,TRIM2#

main71460-20370-05iRT102,104..DLX..EUR197409-197701

FB.BEIGE,BEIGE,TRIM4#

main71460-20370-06iRT104..DLX..EUR197509-197701

FB.BROWN,BROWN,TRIM4#

main71460-20370-06iRT102,104..DLX..EUR197409-197509

FB.OLIVE-BROWN,BROWN,TRIM4#

main71460-20371-01iRT104..3FC..SA;RT104..DLX..(EUR,GEN)197701-197808

FB.BLACK,BLACK,TRIM2#

main71460-20371-03iRT104..3FC..SA;RT104..DLX..(EUR,GEN)197701-197808

FB.GRAY,GRAY,TRIM1#

main71460-20371-05iRT104..3FC..SA;RT104..DLX..(EUR,GEN)197701-197808

FB.BEIGE,BEIGE,TRIM4#

main71460-20390-01iRT100..LHD;RT102,104..4D;RT100..RHD..4F;RT100..RHD..3H..DLX197308-197701

PF.BLACK,BLACK,TRIM2#

main71460-20390-03iRT100..LHD;RT102,104..4D;RT100..RHD..4F;RT100..RHD..3H..DLX197308-197408

PF.GRAY,GRAY,TRIM1#

main71460-20390-04iRT100..LHD;RT102,104..4D;RT100..RHD..4F;RT100..RHD..3H..DLX197308-197408

PF.BLUE,BLUE,TRIM8#

main71460-20390-05iRT102,104;RT100..LHD;RT100..RHD..4F;RT100..RHD..3H..DLX197408-197701

PF.BEIGE,BEIGE,TRIM4#

main71460-20390-06iRT102,104;RT100..LHD;RT100..RHD..4F;RT100..RHD..3H..DLX197509-197701

PF.BROWN,BROWN,TRIM4#

main71460-20390-06iRT100..LHD;RT102,104..4D;RT100..RHD..4F;RT100..RHD..3H..DLX197308-197509

PF.OLIVE-BROWN,BROWN,TRIM4#

main71460-20391-01iRT102,104;RT100..LHD;RT100..RHD..4F;RT100..RHD..3H..DLX197701-197905

PF.BLACK,BLACK,TRIM2#

main71460-20391-03iRT102,104;RT100..LHD;RT100..RHD..4F;RT100..RHD..3H..DLX197701-197905

PF.GRAY,GRAY,TRIM1#

main71460-20391-05iRT102,104;RT100..LHD;RT100..RHD..4F;RT100..RHD..3H..DLX197701-197905

PF.BEIGE,BEIGE,TRIM4#

main71460-20450-01iRT104..2D197308-197411

PF.BLACK,BLACK,TRIM2#

main71460-20450-03iRT104..2D197308-197408

PF.GRAY,GRAY,TRIM1#

main71460-20450-04iRT104..2D197308-197408

PF.BLUE,BLUE,TRIM8#

main71460-20450-05iRT104..2D197408-197411

PF.BEIGE,BEIGE,TRIM4#

main71460-20450-06iRT104..2D197308-197411

PF.OLIVE-BROWN,BROWN,TRIM4#

main71460-20520-01iRT110,114..GEN,PHL197308-197701

PF.BLACK,BLACK,TRIM2#

main71460-20520-03iRT110,112197308-197408

PF.GRAY,GRAY,TRIM1#

main71460-20520-04iRT110,112197308-197408

PF.BLUE,BLUE,TRIM8#

main71460-20520-05iRT110,114..GEN,PHL197408-197701

PF.BEIGE,BEIGE,TRIM4#

main71460-20520-06iRT110,114..GEN,PHL197509-197701

PF.BROWN,BROWN,TRIM4#

main71460-20520-06iRT110,112197308-197509

PF.OLIVE-BROWN,BROWN,TRIM4#

main71460-21020-01iRT116..RHD..3H197308-197504

VL.BLACK,BLACK,TRIM2#

sub71460-21021

main71460-21020-05iRT116..RHD..3H197408-197504

VL.BEIGE,BEIGE,TRIM4#

sub71460-21021

main71460-21020-06iRT116..RHD..3H197308-197504

VL.BROWN,BROWN,TRIM4#

sub71460-21021

main71460-21021-01iRT116..RHD..3H197504-197701

VL.BLACK,BLACK,TRIM2#

main71460-21021-05iRT116..RHD..3H197504-197701

VL.BEIGE,BEIGE,TRIM4#

main71460-21021-06iRT116..RHD..3H197504-197701

VL.BROWN,BROWN,TRIM4#

main71460-21030-01iRT116,117..LHD197308-197504

PF.L/SEAT BAND,BLACK,BLACK,TRIM2#

sub71460-21031

main71460-21030-05iRT116,117..LHD197408-197504

PF.L/SEAT BAND,BEIGE,BEIGE,TRIM4#

sub71460-21031

main71460-21030-06iRT116,117..LHD197308-197504

PF.L/SEAT BAND,BROWN,BROWN,TRIM4#

sub71460-21031

main71460-21031-01iRT116,117..LHD197504-197701

PF.L/SEAT BAND,BLACK,BLACK,TRIM2#

main71460-21031-05iRT116,118..LHD197504-197701

PF.L/SEAT BAND,BEIGE,BEIGE,TRIM4#

main71460-21031-06iRT116,117..LHD197504-197701

PF.L/SEAT BAND,BROWN,BROWN,TRIM4#

main71460-21060-01iRT117,118..ARL,EUR197308-197504

PF.W/SEAT BAND,BLACK,BLACK,TRIM2#

sub71460-21061

main71460-21060-05iRT117,118..ARL,EUR197408-197504

PF.W/SEAT BAND,BEIGE,BEIGE,TRIM4#

sub71460-21061

main71460-21060-06iRT117,118..ARL,EUR197308-197504

PF.W/SEAT BAND,BROWN,BROWN,TRIM4#

sub71460-21061

main71460-21061-01iRT118..EUG;RT118..ARL197504-197701

PF.W/SEAT BAND,BLACK,BLACK,TRIM2#

main71460-21061-05iRT117,118..ARL,EUR197504-197701

PF.W/SEAT BAND,BEIGE,BEIGE,TRIM4#

main71460-21061-06iRT118..EUG;RT118..ARL197504-197701

PF.W/SEAT BAND,BROWN,BROWN,TRIM4#

main71460-21080-01iRT118..EUR197409-197701

FB.BLACK,BLACK,TRIM2#

main71460-21080-05iRT118..EUR197409-197701

FB.BEIGE,BEIGE,TRIM4#

main71460-21080-06iRT118..SDN197409-197701

FB.BROWN,BROWN,TRIM4#

main71460-21100-01iRT116,118..ARL,GEN,PHL197701-197905

VL.BLACK,BLACK,TRIM2#

main71460-21100-05iRT116..RHD..3H197701-197905

VL.BEIGE,BEIGE,TRIM4#

main71460-21130-01iRT118..GEN197701-197905

PF.BLACK,BLACK,TRIM2#

main71460-21130-05iRT116..LHD;RT116..RHD..4F197701-197905

PF.BEIGE,BEIGE,TRIM4#

main71460-21140-01iRT118..EUG;RT118..ARL197701-197905

PF.BLACK,BLACK,TRIM2#

main71460-21140-05iRT118..EUG;RT118..ARL197701-197905

PF.BEIGE,BEIGE,TRIM4#

main71460-21160-01iRT118..EUR197701-197808

FB.BLACK,BLACK,TRIM2#

main71460-21160-05iRT118..EUR197701-197808

FB.BEIGE,BEIGE,TRIM4#

main71460-95507-01iRT114..GEN;RT114..3FC..SA197701-197808

FB.BLACK,BLACK,TRIM2#

main71460-95507-03iRT114..GEN;RT114..3FC..SA197701-197808

FB.GRAY,GRAY,TRIM1#

main71460-95507-05iRT114..GEN;RT114..3FC..SA197701-197808

FB.BEIGE,BEIGE,TRIM4#

main71460-95510-01iRT114..LHD197701-197808

PF.BLACK,BLACK,TRIM2#

main71460-95510-03iRT114197701-197808

PF.GRAY,GRAY,TRIM1#

main71460-95510-05iRT114..LHD197701-197808

PF.BEIGE,BEIGE,TRIM4#

71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)

main71480-20290-01iRT112,114197308-197509

FB.BLACK,BLACK,TRIM2#

main71480-20290-03iRT112,114197308-197408

FB.GRAY,GRAY,TRIM1#

main71480-20290-04iRT112,114197308-197408

FB.BLUE,BLUE,TRIM8#

main71480-20290-05iRT112,114197408-197509

FB.BEIGE,BEIGE,TRIM4#

main71480-20290-06iRT112,114197308-197509

FB.OLIVE-BROWN,BROWN,TRIM4#

main71480-20350-01iRT100,104..DLX197308-197701

FB.BLACK,BLACK,TRIM2#

main71480-20350-03iRT100,102..DLX197308-197408

FB.GRAY,GRAY,TRIM1#

main71480-20350-04iRT100,102..DLX197308-197408

FB.BLUE,BLUE,TRIM8#

main71480-20350-05iRT100,104..DLX197408-197701

FB.BEIGE,BEIGE,TRIM4#

main71480-20350-06iRT100,102..DLX197308-197701

FB.OLIVE-BROWN,BROWN,TRIM4#

main71480-20351-01iRT104..ARL197701-197905

FB.BLACK,BLACK,TRIM2#

main71480-20351-03iRT104..ARL197701-197905

FB.GRAY,GRAY,TRIM1#

main71480-20351-05iRT104..ARL197701-197905

FB.BEIGE,BEIGE,TRIM4#

main71480-20360-01iRT100..3H..STD197308-197701

VL.BLACK,BLACK,TRIM2#

main71480-20360-03iRT100..RHD..3H..STD197308-197408

VL.GRAY,GRAY,TRIM1#

main71480-20360-04iRT100..RHD..3H..STD197308-197408

VL.BLUE,BLUE,TRIM8#

main71480-20360-05iRT100..RHD..3H..STD197408-197701

VL.BEIGE,BEIGE,TRIM4#

main71480-20360-06iRT100..RHD..3H..STD197308-197701

VL.OLIVE-BROWN,BROWN,TRIM4#

main71480-20361-01iRT100..3H..STD197701-197808

VL.BLACK,BLACK,TRIM2#

main71480-20390-01iRT102,104;RT100..LHD;RT100..RHD..4F;RT100..RHD..3H..DLX197308-197701

PF.BLACK,BLACK,TRIM2#

main71480-20390-03iRT102,104;RT100..LHD;RT100..RHD..4F;RT100..RHD..3H..DLX197308-197408

PF.GRAY,GRAY,TRIM1#

main71480-20390-04iRT102,104;RT100..LHD;RT100..RHD..4F;RT100..RHD..3H..DLX197308-197408

PF.BLUE,BLUE,TRIM8#

main71480-20390-05iRT102,104;RT100..LHD;RT100..RHD..4F;RT100..RHD..3H..DLX197408-197701

PF.BEIGE,BEIGE,TRIM4#

main71480-20390-06iRT102,104;RT100..LHD;RT100..RHD..4F;RT100..RHD..3H..DLX197308-197701

PF.OLIVE-BROWN,BROWN,TRIM4#

main71480-20391-01iRT10#..GEN,PHL,SA197701-197905

PF.BLACK,BLACK,TRIM2#

main71480-20391-03iRT10#..GEN,PHL,SA197701-197905

PF.GRAY,GRAY,TRIM1#

main71480-20391-05iRT10#..GEN,PHL,SA197701-197905

PF.BEIGE,BEIGE,TRIM4#

main71480-20490-01iRT110,112197308-197509

PF.BLACK,BLACK,TRIM2#

main71480-20490-04iRT110,112197308-197408

PF.BLUE,BLUE,TRIM8#

main71480-20490-05iRT110,112197408-197509

PF.BEIGE,BEIGE,TRIM4#

main71480-20490-06iRT110,112197308-197509

PF.OLIVE-BROWN,BROWN,TRIM4#

main71480-20580-01iRT102,104..DLX..EUR197409-197701

FB.BLACK,BLACK,TRIM2#

main71480-20580-05iRT104..DLX..EUR197409-197701

FB.BEIGE,BEIGE,TRIM4#

main71480-20580-06iRT102,104..DLX..EUR197409-197701

FB.BROWN,BROWN,TRIM4#

main71480-20581-01iRT104..RHD..4F..DLX..GEN197701-197905

FB.BLACK,BLACK,TRIM2#

main71480-20581-03iRT104..RHD..4F..DLX..GEN197701-197905

FB.GRAY,GRAY,TRIM1#

main71480-20581-05iRT104..RHD..4F..DLX..GEN197701-197905

FB.BEIGE,BEIGE,TRIM4#

main71480-20630-01iRT104..EUG;RT104..3FC..SDN;RT104..ARL,GEN,SA197701-197905

PF.BLACK,BLACK,TRIM2#

main71480-20630-03iRT104..EUG;RT104..3FC..SDN;RT104..ARL,GEN,SA197701-197905

PF.GRAY,GRAY,TRIM1#

main71480-20630-05iRT104..EUG;RT104..3FC..SDN;RT104..ARL,GEN,SA197701-197905

PF.BEIGE,BEIGE,TRIM4#

main71480-20640-01iRT104..DLX197701-197905

FB.BLACK,BLACK,TRIM2#

main71480-20640-03iRT104..DLX197701-197905

FB.GRAY,GRAY,TRIM1#

main71480-20640-05iRT104..DLX197701-197905

FB.BEIGE,BEIGE,TRIM4#

main71480-21020-01iRT116..RHD..3H197308-197504

VL.BLACK,BLACK,TRIM2#

sub71480-21021

main71480-21020-05iRT116..RHD..3H197408-197504

VL.BEIGE,BEIGE,TRIM4#

sub71480-21021

main71480-21020-06iRT116..RHD..3H197308-197504

VL.BROWN,BROWN,TRIM4#

sub71480-21021

main71480-21021-01iRT116..RHD..3H197504-197701

VL.BLACK,BLACK,TRIM2#

main71480-21021-05iRT116..RHD..3H197504-197701

VL.BEIGE,BEIGE,TRIM4#

main71480-21021-06iRT116..RHD..3H197504-197701

VL.BROWN,BROWN,TRIM4#

main71480-21030-01iRT117,118;RT116..LHD;RT116..RHD..4F197308-197504

PF.BLACK,BLACK,TRIM2#

sub71480-21031

main71480-21030-05iRT117,118;RT116..LHD;RT116..RHD..4F197408-197504

PF.BEIGE,BEIGE,TRIM4#

sub71480-21031

main71480-21030-06iRT117,118;RT116..LHD;RT116..RHD..4F197308-197504

PF.OLIVE-BROWN,BROWN,TRIM4#

sub71480-21031

main71480-21031-01iRT118;RT116..LHD;RT116..RHD..4F197504-197610

PF.BLACK,BLACK,TRIM2#

main71480-21031-05iRT117,118;RT116..LHD;RT116..RHD..4F197504-197610

PF.BEIGE,BEIGE,TRIM4#

main71480-21031-06iRT118;RT116..LHD;RT116..RHD..4F197504-197610

PF.OLIVE-BROWN,BROWN,TRIM4#

main71480-21090-01iRT118..EUR197409-197701

FB.BLACK,BLACK,TRIM2#

main71480-21090-05iRT118..SDN197409-197701

FB.BEIGE,BEIGE,TRIM4#

main71480-21090-06iRT118..EUR197409-197701

FB.BROWN,BROWN,TRIM4#

main71480-21100-01iRT116,118..ARL,GEN,PHL197701-197905

VL.BLACK,BLACK,TRIM2#

main71480-21100-05iRT116..RHD..3H197701-197905

VL.BEIGE,BEIGE,TRIM4#

main71480-21130-01iRT118;RT116..LHD;RT116..RHD..4F197701-197905

PF.BLACK,BLACK,TRIM2#

main71480-21130-05iRT118;RT116..LHD;RT116..RHD..4F197701-197905

PF.BEIGE,BEIGE,TRIM4#

main71480-21160-01iRT118..EUG197610-197701

PF.BLACK,BLACK,TRIM2#

main71480-21160-05iRT118..EUG197610-197701

PF.BEIGE,BEIGE,TRIM4#

main71480-21160-06iRT118..EUG197610-197701

PF.BROWN,BROWN,TRIM4#

main71480-21170-01iRT118..EUG197701-197808

PF.BLACK,BLACK,TRIM2#

main71480-21170-05iRT118..EUG197701-197808

PF.BEIGE,BEIGE,TRIM4#

main71480-21180-01iRT118..ARL197611-197905

PF.BLACK,BLACK,TRIM2#

main71480-21180-05iRT118..ARL197611-197905

PF.BEIGE,BEIGE,TRIM4#

main71480-21180-06iRT118..ARL197611-197701

PF.BROWN,BROWN,TRIM4#

main71480-21190-01iRT118..EUR197701-197808

FB.BLACK,BLACK,TRIM2#

main71480-21190-05iRT118..EUR197701-197808

FB.BEIGE,BEIGE,TRIM4#

main71480-21200-01iRT118..ARL197701-197905

PF.BLACK,BLACK,TRIM2#

main71480-21200-05iRT118..ARL197701-197905

PF.BEIGE,BEIGE,TRIM4#

main71480-95514-01iRT110,114..GEN,PHL197509-197701

PF.BLACK,BLACK,TRIM2#

main71480-95514-05iRT110,114..GEN,PHL197509-197701

PF.BEIGE,BEIGE,TRIM4#

main71480-95514-06iRT110,114..GEN,PHL197509-197701

PF.BROWN,BROWN,TRIM4#

main71480-95515-01iRT114197509-197701

FB.BLACK,BLACK,TRIM2#

main71480-95515-05iRT114197509-197701

FB.BEIGE,BEIGE,TRIM4#

main71480-95515-06iRT114197509-197701

FB.OLIVE-BROWN,BROWN,TRIM4#

main71480-95527-01iRT114..LHD197701-197808

PF.BLACK,BLACK,TRIM2#

main71480-95527-03iRT114..LHD197701-197808

PF.GRAY,GRAY,TRIM1#

main71480-95527-05iRT114..LHD197701-197808

PF.BEIGE,BEIGE,TRIM4#

main71480-95528-01iRT114..GEN;RT114..3FC..SA197701-197808

FB.BLACK,BLACK,TRIM2#

main71480-95528-03iRT114..GEN;RT114..3FC..SA197701-197808

FB.GRAY,GRAY,TRIM1#

main71480-95528-05iRT114..RHD197701-197808

FB.BEIGE,BEIGE,TRIM4#

71811BFASTENER (FOR REAR SEAT COVER)

main71811-20030-01iRT118..SDN;RT100,104,114..DLX197308-197701

BLACK,BLACK,TRIM2#

main71811-20030-03iRT100,102,112,114..DLX197308-197408

GRAY,GRAY,TRIM1#

main71811-20030-04iRT100,102,112,114..DLX197308-197408

BLUE,BLUE,TRIM8#

main71811-20030-06iRT118..EUR;RT100,102,112,114..DLX197308-197509

OLIVE-BROWN,BROWN,TRIM4#

main71811-20030-06iRT118..SDN;RT100,104,114..DLX197509-197701

BROWN,BROWN,TRIM4#

71812CLIP (FOR FRONT SEAT CUSHION COVER)

main71812-30010iRT10#,11#197308-197701

sub90468-18008

main90468-18071iRT10#,11#197701-197905

sub90468-18008

71818BRETAINER, REAR SEAT COVER FASTENER

main71818-20020iRT118..EUR;RT100,102,112,114..DLX197308-197701

9011908164

main90119-08164

8 parts on this diagram · 3 diagrams in section
