BACK DOOR PANEL & GLASS

64904WEATHERSTRIP SUB-ASSY, BACK DOOR

main67881-21010iRT116,117,118197308-197905

67005PANEL SUB-ASSY, BACK DOOR

main67005-21010iRT116,117,118197308-197509

main67005-21110iRT118..EUG;RT116,118..ARL,GEN,PHL197509-197905

sub67005-20900

main67005-21150iRT117,118..EUR197403-197705

FOR W/REAR WIPER

main67005-21350iRT116,118197705-197905

FOR W/REAR WIPER

sub67005-20903

67751BOARD, BACK DOOR TRIM

main67701-21010-01iRT117,118..EUR197403-197412

FOR W/REAR WIPER,BLACK,BLACK,TRIM2#

sub67751-21020

sub67755-21010

sub90183-03002

main67701-21010-03iRT117..EUG197403-197408

FOR W/REAR WIPER,GRAY,GRAY,TRIM1#

sub67751-21020

sub67755-21010

sub90183-03002

main67701-21010-06iRT117,118..EUR197403-197412

FOR W/REAR WIPER,BROWN,BROWN,TRIM4#

sub67751-21020

sub67755-21010

sub90183-03002

main67751-21010-01iRT116,117,118197308-197701

BLACK,BLACK,TRIM2#

sub67751-21030

main67751-21010-06iRT116,117,118197308-197701

BROWN,BROWN,TRIM4#

sub67751-21030

main67751-21010-11iRT118..EUG;RT116,118..ARL,GEN,PHL197701-197709

BLACK,BLACK,TRIM2#

sub67751-21030

main67751-21010-15iRT118..EUG;RT116,118..ARL,GEN,PHL197701-197709

BEIGE,BEIGE,TRIM4#

sub67751-21030

main67751-21020-01iRT117,118..EUR197412-197701

FOR W/REAR WIPER,BLACK,BLACK,TRIM2#

sub67751-21040

main67751-21020-06iRT117,118..EUR197412-197701

FOR W/REAR WIPER,BROWN,BROWN,TRIM4#

sub67751-21040

main67751-21020-11iRT118..EUR197701-197709

FOR W/REAR WIPER,BLACK,BLACK,TRIM2#

sub67751-21040

main67751-21020-15iRT118..EUR197701-197709

FOR W/REAR WIPER,BEIGE,BEIGE,TRIM4#

sub67751-21040

main67751-21030-01iRT118..EUG;RT116,118..ARL,GEN,PHL197709-197905

BLACK,BLACK,TRIM2#

sub67751-21030

main67751-21030-05iRT118..EUG;RT116,118..ARL,GEN,PHL197709-197905

BEIGE,BEIGE,TRIM4#

sub67751-21030

main67751-21040-01iRT118..EUR197709-197808

FOR W/REAR WIPER,BLACK,BLACK,TRIM2#

sub67751-21040

main67751-21040-05iRT118..EUR197709-197808

FOR W/REAR WIPER,BEIGE,BEIGE,TRIM4#

sub67751-21040

67751ACLIP(FOR BACK DOOR TRIM BOARD)

main90467-08114-01iRT116,117,118197308-197701

BLACK,BLACK,TRIM2#

sub90467-08114

main90467-08114-11iRT116,118197701-197905

BLACK,BLACK,TRIM2#

sub90467-08114

main90467-08114-13iRT116,117,118197308-197408

GRAY,GRAY,TRIM1#

sub90467-08114

main90467-08114-16iRT116,117,118197308-197701

BROWN,BROWN,TRIM4#

sub90467-08114

main90467-08114-25iRT116,118197701-197905

BEIGE,BEIGE,TRIM4#

sub90467-08114

67751ECOVER, REAR WINDOW WIPER, MOTOR

main67755-21010-01iRT117,118..EUR197412-197701

BLACK,BLACK,TRIM2#

sub67755-21010

main67755-21010-06iRT117,118..EUR197412-197701

BROWN,BROWN,TRIM4#

sub67755-21010

main67755-21010-11iRT118..EUR197701-197808

BLACK,BLACK,TRIM2#

sub67755-21010

main67755-21010-15iRT118..EUR197701-197808

BEIGE,BEIGE,TRIM4#

sub67755-21010

68131GLASS, BACK DOOR

main68105-21020iRT117,118197308-197905

ELECT.TP.T=4.0

sub68105-91258

main68105-21040iRT118..LHD..EUR197502-197808

FOR ARCTIC,ELECT.TP.T=4.0

main68131-21020iRT116,117,118197308-197905

TP.T=4.0

sub68131-91264

68291WEATHERSTRIP, BACK DOOR GLASS

main68291-21010iRT116,117,118197308-197905

9018303002

main90183-03002

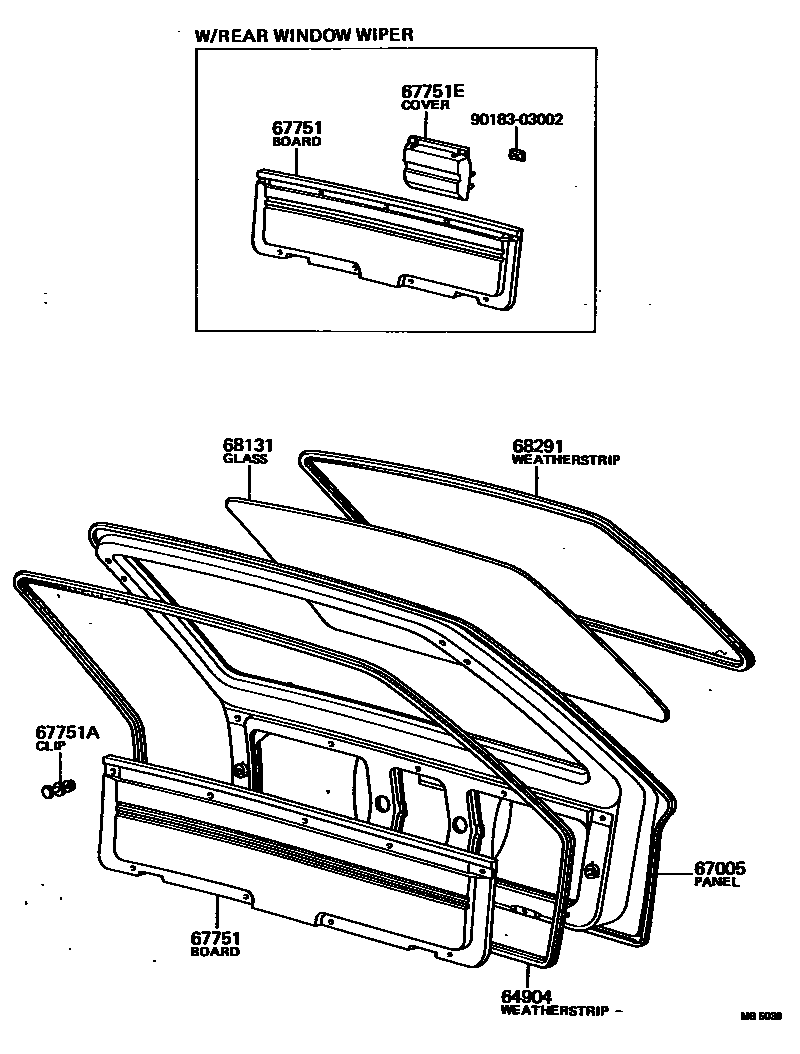

8 parts on this diagram · 1 diagram in section
