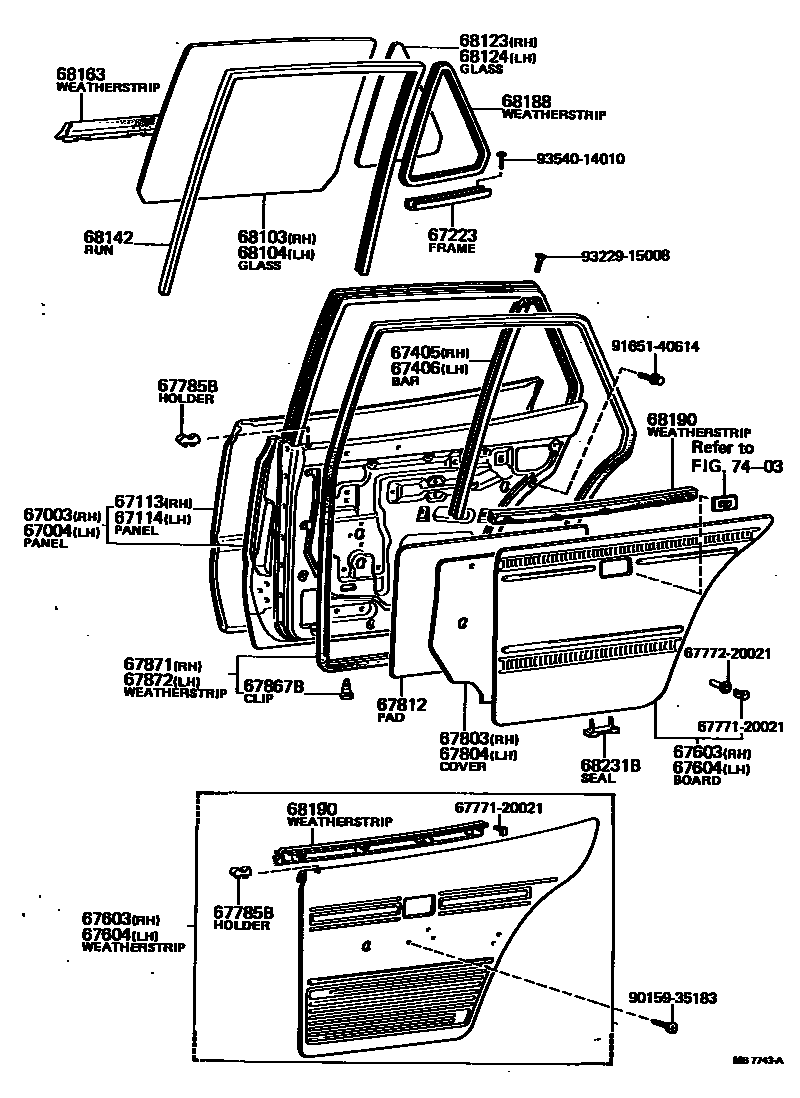

REAR DOOR PANEL & GLASS

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-20080iRT10#..4D197308-197511

main67003-20081iRT10#197511-197612

main67003-20101iRT100..STD..PHL197512-197701

main67003-20111iRT104..ARL197612-197905

main67003-21030iRT116,117,118197308-197512

main67003-21031iRT116,118..EUR,GEN,PHL197612-197905

main67003-21042iRT118..ARL197612-197905

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-20080iRT10#..4D197308-197511

sub67004-20H00

main67004-20081iRT10#197511-197612

main67004-20101iRT100..RHD197701-197808

FOR TAX

main67004-20111iRT104..ARL197612-197905

main67004-21030iRT116,117,118197308-197511

main67004-21031iRT116,118197511-197612

main67004-21042iRT118..ARL197612-197905

67113PANEL, REAR DOOR, OUTER RH

main67113-20050iRT10#,116,117,118197308-197905

67114PANEL, REAR DOOR, OUTER LH

main67114-20050iRT10#,116,117,118197308-197905

67223FRAME, REAR DOOR QUARTER WINDOW, LOWER

main67223-20030×2iRT10#,116,117,118..4D197308-197905

67405BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67405-20040iRT10#..4D197308-197905

main67405-21010iRT116,117,118197308-197905

67406BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67406-20040iRT10#..4D197308-197905

main67406-21010iRT116,117,118197308-197905

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-20210-01iRT104..3FC..SA;RT102,104..DLX..(EUR,GEN)197308-197511

BLACK,BLACK,TRIM2#

main67630-20210-03iRT102..DLX197308-197408

GRAY,GRAY,TRIM1#

main67630-20210-04iRT102..DLX197308-197408

BLUE,BLUE,TRIM8#

main67630-20210-05iRT104..3FC..SA;RT102,104..DLX..(EUR,GEN)197408-197511

BEIGE,BEIGE,TRIM4#

main67630-20210-06iRT104..3FC..SA;RT102,104..DLX..(EUR,GEN)197308-197511

OLIVE-BROWN,BROWN,TRIM4#

main67630-20211-01iRT104..3FC..SA;RT104..DLX..(EUR,GEN)197511-197701

BLACK,BLACK,TRIM2#

main67630-20211-05iRT104..3FC..SA;RT104..DLX..(EUR,GEN)197511-197701

BEIGE,BEIGE,TRIM4#

main67630-20211-06iRT104..3FC..SA;RT104..DLX..(EUR,GEN)197511-197701

OLIVE-BROWN,BROWN,TRIM4#

main67630-20212-01iRT104..DLX197701-197905

BLACK,BLACK,TRIM2#

main67630-20212-03iRT104..DLX197701-197905

GRAY,GRAY,TRIM1#

main67630-20212-05iRT104..DLX197701-197905

BEIGE,BEIGE,TRIM4#

main67630-20230-01iRT10#,116,117,118..STD..4D197308-197701

BLACK,BLACK,TRIM2#

main67630-20230-03iRT10#..STD..4D197308-197408

GRAY,GRAY,TRIM1#

main67630-20230-04iRT10#..STD..4D197308-197408

BLUE,BLUE,TRIM8#

main67630-20230-05iRT10#,116,117,118..STD..4D197408-197701

BEIGE,BEIGE,TRIM4#

main67630-20230-06iRT10#,116,117,118..STD..4D197308-197701

OLIVE-BROWN,BROWN,TRIM4#

main67630-20231-01iRT10#,116,118..STD197701-197905

BLACK,BLACK,TRIM2#

main67630-20231-03iRT10#,116,118..STD197701-197905

GRAY,GRAY,TRIM1#

main67630-20231-05iRT10#,116,118..STD197701-197905

BEIGE,BEIGE,TRIM4#

main67630-20240-01iRT104..SA197509-197701

BLACK,BLACK,TRIM2#

main67630-20240-03iRT100,104..DLX197308-197408

GRAY,GRAY,TRIM1#

main67630-20240-04iRT100,104..DLX197308-197408

BLUE,BLUE,TRIM8#

main67630-20240-05iRT104..SA197509-197701

BEIGE,BEIGE,TRIM4#

main67630-20240-06iRT104..SA197509-197701

BROWN,BROWN,TRIM4#

main67630-20241-01iRT100..DLX197701-197808

BLACK,BLACK,TRIM2#

main67630-20241-03iRT100..DLX197701-197808

GRAY,GRAY,TRIM1#

main67630-20241-05iRT100..DLX197701-197808

BEIGE,BEIGE,TRIM4#

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-20210-01iRT104..3FC..SA;RT102,104..DLX..(EUR,GEN)197308-197511

BLACK,BLACK,TRIM2#

main67640-20210-03iRT102..DLX197308-197408

GRAY,GRAY,TRIM1#

main67640-20210-04iRT102..DLX197308-197408

BLUE,BLUE,TRIM8#

main67640-20210-05iRT104..3FC..SA;RT102,104..DLX..(EUR,GEN)197408-197511

BEIGE,BEIGE,TRIM4#

main67640-20210-06iRT104..3FC..SA;RT102,104..DLX..(EUR,GEN)197308-197511

OLIVE-BROWN,BROWN,TRIM4#

main67640-20211-01iRT104..3FC..SA;RT104..DLX..(EUR,GEN)197511-197701

BLACK,BLACK,TRIM2#

main67640-20211-05iRT104..3FC..SA;RT104..DLX..(EUR,GEN)197511-197701

BEIGE,BEIGE,TRIM4#

main67640-20211-06iRT104..3FC..SA;RT104..DLX..(EUR,GEN)197511-197701

OLIVE-BROWN,BROWN,TRIM4#

main67640-20212-01iRT104..DLX197701-197905

BLACK,BLACK,TRIM2#

main67640-20212-03iRT104..DLX197701-197905

GRAY,GRAY,TRIM1#

main67640-20212-05iRT104..DLX197701-197905

BEIGE,BEIGE,TRIM4#

main67640-20230-01iRT10#,116,117,118..STD..4D197308-197701

BLACK,BLACK,TRIM2#

main67640-20230-03iRT10#..STD..4D197308-197408

GRAY,GRAY,TRIM1#

main67640-20230-04iRT10#..STD..4D197308-197408

BLUE,BLUE,TRIM8#

main67640-20230-05iRT10#,116,117,118..STD..4D197408-197701

BEIGE,BEIGE,TRIM4#

main67640-20230-06iRT10#,116,117,118..STD..4D197308-197701

OLIVE-BROWN,BROWN,TRIM4#

main67640-20231-01iRT10#,116,118..STD197701-197905

BLACK,BLACK,TRIM2#

main67640-20231-03iRT10#,116,118..STD197701-197905

GRAY,GRAY,TRIM1#

main67640-20231-05iRT10#,116,118..STD197701-197905

BEIGE,BEIGE,TRIM4#

main67640-20240-01iRT104..SA197509-197701

BLACK,BLACK,TRIM2#

main67640-20240-03iRT100,104..DLX197308-197408

GRAY,GRAY,TRIM1#

main67640-20240-04iRT100,104..DLX197308-197408

BLUE,BLUE,TRIM8#

main67640-20240-05iRT104..SA197509-197701

BEIGE,BEIGE,TRIM4#

main67640-20240-06iRT104..SA197509-197701

BROWN,BROWN,TRIM4#

main67640-20241-01iRT100..DLX197701-197808

BLACK,BLACK,TRIM2#

main67640-20241-03iRT100..DLX197701-197808

GRAY,GRAY,TRIM1#

main67640-20241-05iRT100..DLX197701-197808

BEIGE,BEIGE,TRIM4#

67785BHOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR)

main67785-20010×2iRT102,104..SA197308-197511

HOLE SIZE 10X22 SEMI TRIM

main67785-22010×2iRT104..3FC..SA;RT102,104..DLX..(EUR,GEN)197308-197512

FULL TRIM

main69751-20030×2iRT102,104,116,118..STD197701-197905

SEMI TRIM

sub69751-20031

main69751-20040×2iRT104..3FC..SA;RT104..DLX..(EUR,GEN)197512-197808

FULL TRIM

main69751-20050×2iRT102,104..SA197308-197511

HOLE SIZE 13X25 SEMI TRIM

67803COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH

main67841-20070iRT10#,116,117,118..4D197308-197507

main67841-20100iRT10#,116,117,118197507-197607

main67841-20101iRT10#,116,118197607-197905

67804COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH

main67841-20070iRT10#,116,117,118..4D197308-197507

main67841-20100iRT10#,116,117,118197507-197607

main67841-20101iRT10#,116,118197607-197905

67812PAD, REAR DOOR SILENCER

main67812-20050×2iRT10#,116,117,118..4D197308-197905

sub67812-12010

67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)

main67867-12020×44iRT10#,116,117,118..4D197308-197905

67871WEATHERSTRIP, REAR DOOR, RH

main67871-20070iRT10#,116,117,118..4D197308-197905

67872WEATHERSTRIP, REAR DOOR, LH

main67872-20070iRT10#,116,117,118..4D197308-197905

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-20120iRT100,104..EUR,GEN,PHL,SA197509-197905

TN.TP.T=4.0

main68113-20130iRT10#..STD..4D197308-197504

TP.T=5.0

sub68173-20030

sub69903-20070

main68113-20131iRT100,102..STD197504-197509

TP.T=4.0

main68113-21010iRT116,117,118197308-197905

TP.T=4.0

sub68113-21020

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-20040iRT100197308-197509

TN.TP.T=4.0

main68114-20050iRT104..ARL197504-197509

TP.T=5.0

sub68173-20030

sub69903-20070

main68114-20051iRT100,102..STD197504-197509

TP.T=4.0

main68114-21010iRT116,117,118197308-197905

TP,T=4.0

sub68114-21020

68123GLASS, REAR DOOR WINDOW, RH

main68123-20160iRT100197308-197509

TN.TP.T=4.0

main68123-20170iRT10#..STD..4D197308-197504

TP.T=5.0

main68123-20171iRT100,102..STD197504-197509

TP.T=4.0

main68123-21010iRT116,117,118197308-197905

TP.T=4.0

sub68123-21020

68124GLASS, REAR DOOR WINDOW, LH

main68124-20080iRT102,104..LHD;RT102..RHD..STD..GEN197308-197509

TN.TP.T=4.0

main68124-20090iRT104..ARL197504-197509

TP.T=5.0

main68124-20091iRT100,102..STD197504-197509

TP.T=4.0

main68124-21010iRT116,117,118197308-197905

TP.T=4.0

sub68124-21020

68142RUN, REAR DOOR GLASS

main68142-20030×2iRT10#,116,117,118..4D197308-197905

68163WEATHERSTRIP, REAR DOOR GLASS, OUTER

main68180-20060iRT100,102,116,117,118..STD197308-197509

RH.

main68230-20040iRT10#,116,118..STD197509-197701

LH.

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-20040iRT10#..4D197308-197905

RH.

main68188-21010iRT116,117,118197308-197905

RH.

main68189-20040iRT10#..4D197308-197905

LH.

main68189-21010iRT116,117,118197308-197905

LH.

68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER

main68190-20070iRT104..3FC..SA;RT104..DLX..(EUR,GEN)197701-197808

RH.

main68190-20080×2iRT104..4F..SA;RT102,104,116,117,118..STD..4D197308-197905

main68240-20040iRT104..3FC..SA;RT104..DLX..(EUR,GEN)197701-197808

LH.

68231BSEAL, REAR DOOR DRAIN HOLE DUST

main68231-30020×4iRT10#,116,117,118..4D197308-197905

7403

6777120021WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-20021

6777220021WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-20021

9015935183

main90159-35183

9165140614

main91651-40614

9322915008

main93229-15008

9354014010

main93540-14010

32 parts on this diagram · 1 diagram in section
