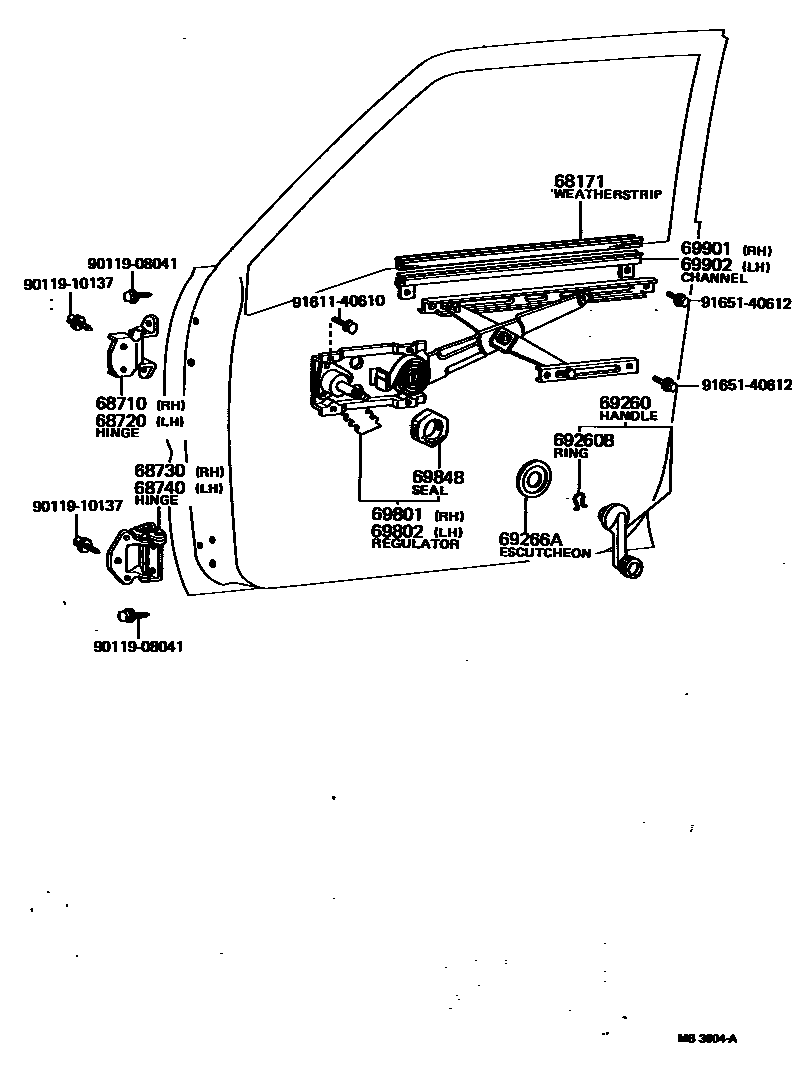

FRONT DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1

68171WEATHERSTRIP, FRONT DOOR GLASS CHANNEL

main68171-22020iRT10#,116,117,118197308-197905

sub69971-22010

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-20040iRT10#,116,117,118..4D197308-197905

main68710-20050iRT110,112,114197308-197808

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-20030iRT10#,116,117,118..4D197308-197905

main68720-20040iRT104..2D197308-197808

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-20050iRT10#,116,117,118..4D197308-197505

sub68730-30050

main68730-20060iRT110,112,114197308-197808

main68730-30050iRT10#,116,117,118197505-197905

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-20050iRT10#,116,117,118..4D197308-197505

sub68740-30030

main68740-20060iRT104..2D197308-197808

main68740-30030iRT10#,116,117,118197505-197905

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-12010-01iRT10#,11#197509-197905

BLACK,BLACK,TRIM1#,2#

sub69260-12010

main69260-12010-05iRT10#,11#197701-197905

BEIGE,BEIGE,TRIM4#

sub69260-12010

main69260-12010-06iRT10#,11#197509-197701

BROWN,BROWN,TRIM4#

sub69260-12010

main69260-14010iRT10#,11#197308-197509

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002iRT10#,11#197701-197905

sub90520-01274

main90520-01274iRT10#,11#197308-197701

69266AESCUTCHEON, DOOR REGULATOR HANDLE(FOR FRONT DOOR)

main69266-22010iRT10#,11#197308-197509

main69266-22010-01iRT10#,11#197602-197905

BLACK,BLACK,TRIM2#

sub69266-22010

main69266-22010-05iRT10#,11#197701-197905

BEIGE,BEIGE,TRIM4#

sub69266-22010

main69266-22010-06iRT10#,11#197602-197701

BROWN,BROWN,TRIM4#

sub69266-22010

main69285-22010iRT10#,11#197509-197602

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-20060iRT110,112,114197308-197410

sub69801-95502

main69801-20080iRT10#,116,117,118197308-197509

main69801-20081iRT10#,116,118197509-197905

main69801-95502iRT110,112,114197410-197508

main69801-95503iRT110,112,114197508-197808

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-20060iRT110,112,114197308-197410

sub69802-95502

main69802-20080iRT10#,116,117,118197308-197509

main69802-20081iRT10#,116,118197509-197905

main69802-95502iRT110,112,114197410-197508

main69802-95503iRT110,112,114197508-197808

69848SEAL, WINDOW REGULATOR HOLE

main69848-30010iRT10#,11#197308-197808

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-20060iRT10#..STD..4D197308-197509

FOR GLASS T=5.0

main69901-20070iRT10#..DLX197308-197905

FOR GLASS T=4.0

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69901-20060iRT104..ARL197308-197509

FOR GLASS T=5.0

main69901-20070iRT116,117,118197308-197905

FOR GLASS T=4.0

9011908041

main90119-08041

9011910137

main90119-10137

9161140610

main91611-40610

9165140612

main91651-40612

17 parts on this diagram · 2 diagrams in section
