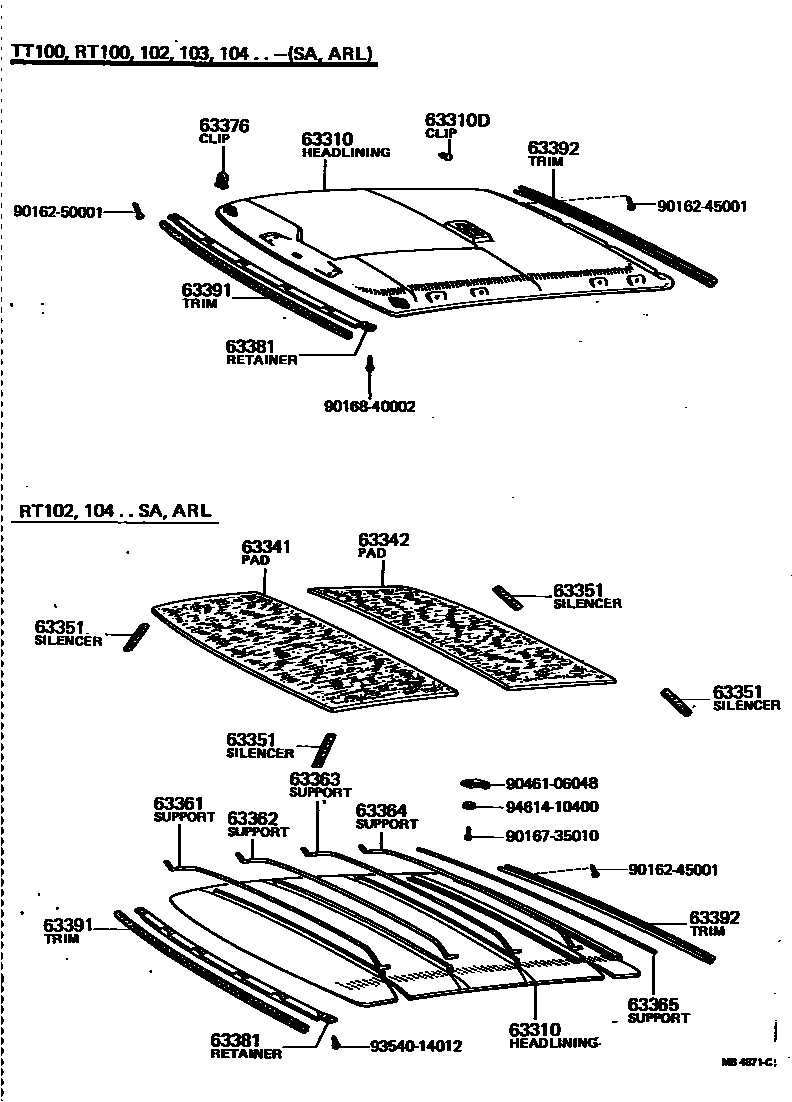

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1 0003 1

63310HEADLINING ASSY, ROOF

main63310-20060-03iRT112..RHD197308-197402

GRAY,GRAY,TRIM1#

sub63310-20060

sub63310-95502

main63310-20060-13iRT112..RHD197402-197509

GRAY,GRAY,TRIM1#

sub63310-20060

sub63310-95502

main63310-20090iRT100,102..RHD..(EUR,GEN)197308-197404

sub63310-20091

main63310-20091-03iRT100,102..RHD..(EUR,GEN)197404-197612

GRAY,GRAY,TRIM1#

sub63310-20091

sub63310-20092

sub81240-20051

main63310-20091-05iRT100,104..RHD197701-197704

BEIGE,BEIGE,TRIM4#

sub63310-20091

sub63310-20092

sub81240-20051

main63310-20091-13iRT100,104..RHD197701-197704

GRAY,GRAY,TRIM1#,2#

sub63310-20091

sub63310-20092

sub81240-20051

main63310-20092-03iRT100,104..RHD197704-197905

GRAY,GRAY,TRIM1#,2#

sub63310-20092

main63310-20092-05iRT100,104..RHD197704-197905

BEIGE,BEIGE,TRIM4#

sub63310-20092

main63310-20120iRT100,102..LHD197308-197404

sub63310-20121

main63310-20121-03iRT100..DLX..PHL;RT10#..LHD..(EUR,GEN)197404-197612

GRAY,GRAY,TRIM1#

sub63310-20121

sub63310-20122

sub81240-20051

main63310-20121-05iRT100,104..LHD197701-197704

BEIGE,BEIGE,TRIM4#

sub63310-20121

sub63310-20122

sub81240-20051

main63310-20121-13iRT100,104..LHD197701-197704

GRAY,GRAY,TRIM1#,2#

sub63310-20121

sub63310-20122

sub81240-20051

main63310-20122-03iRT100,104..LHD197704-197905

GRAY,GRAY,TRIM1#,2#

sub63310-20122

main63310-20122-05iRT100,104..LHD197704-197905

BEIGE,BEIGE,TRIM4#

sub63310-20122

main63310-20130-03iRT112..LHD197308-197402

GRAY,GRAY,TRIM1#

sub63310-20130

sub63310-95504

main63310-20130-13iRT112..LHD197402-197509

GRAY,GRAY,TRIM1#

sub63310-20130

sub63310-95504

main63310-20150iRT102,104..ARL,SA197308-197509

sub63310-20151

main63310-20150iRT10#..ARL,GEN,PHL,SA197509-197701

FOR HANGING CLOTH LINING

sub63310-20151

main63310-20151-03iRT10#..ARL,GEN,PHL,SA197701-197905

HANGING CLOTH LINING,GRAY,GRAY,TRIM1#,2#

main63310-20151-05iRT10#..ARL,GEN,PHL,SA197701-197905

HANGING CLOTH LINING,BEIGE,BEIGE,TRIM4#

main63310-95502iRT114..RHD..3FC;RT114..RHD..4F..GEN197509-197701

main63310-95504iRT114..LHD197509-197701

main63310-95507-03iRT114..RHD..4F..GEN197701-197704

GRAY,GRAY,TRIM1#,2#

sub63310-95513

sub81240-20051

main63310-95507-05iRT114..RHD..4F..GEN197701-197704

BEIGE,BEIGE,TRIM4#

sub63310-95513

sub81240-20051

main63310-95511-03iRT114..LHD197701-197808

GRAY,GRAY,TRIM1#,2#

main63310-95511-05iRT114..LHD197701-197808

BEIGE,BEIGE,TRIM4#

main63310-95513-03iRT114..RHD..4F..GEN197704-197808

GRAY,GRAY,TRIM1#,2#

main63310-95513-05iRT114..RHD..4F..GEN197704-197808

BEIGE,BEIGE,TRIM4#

main63311-21010-03iRT116,117,118197308-197612

GRAY,GRAY,TRIM1#

sub63311-21010

main63311-21010-05iRT116,118197701-197905

BEIGE,BEIGE,TRIM4#

sub63311-21010

main63311-21010-13iRT116,118197701-197905

GRAY,GRAY,TRIM1#

sub63311-21010

63310DCLIP, ROOF HEADLINING

main90467-06143iRT100,102..STD..(EUR,GEN)197308-197701

main90467-06143-13iRT100,104..STD..(ARL,EUR,GEN)197701-197905

GRAY,GRAY,TRIM1#

sub90467-06143

main90467-06143-15iRT100,104..STD..(ARL,EUR,GEN)197701-197905

BEIGE,BEIGE,TRIM4#

sub90467-06143

63341PAD, ROOF SILENCER, NO.1

main63341-14010iRT102,104..ARL,SA197308-197509

sub63341-22H92

main63341-14010iRT10#..ARL,GEN,PHL,SA197509-197905

FOR HANGING CLOTH LINING

sub63341-22H92

main63341-21010iRT116,117,118197308-197311

main63342-21010iRT116,117,118197311-197905

sub63341-91256

63342PAD, ROOF SILENCER, NO.2

main63342-21010iRT116,117,118197308-197905

sub63341-91256

63351SILENCER, ROOF SIDE

main63351-20010iRT102,104..4D..(ARL,SA)197407-197701

main63351-20011iRT10#..ARL,GEN,PHL,SA197701-197905

63361SUPPORT, ROOF HEADLINING, NO.1

main63361-21010iRT10#..ARL,GEN,PHL,SA197308-197905

L=950

main63362-20050iRT102,104..ARL,SA197308-197905

L=960 & YELLOW

main63363-20020iRT102,104..ARL,SA197308-197905

L=955 & GREEN

63362SUPPORT, ROOF HEADLINING, NO.2

main63361-21010iRT102,104..ARL,SA197308-197905

L=950

main63362-20050iRT10#..ARL,GEN,PHL,SA197308-197905

L=960 & YELLOW

main63363-20020iRT102,104..ARL,SA197308-197905

L=955 & GREEN

63363SUPPORT, ROOF HEADLINING, NO.3

main63361-21010iRT116,117,118197308-197905

L=950

main63362-20050iRT102,104..ARL,SA197308-197905

L=960 & YELLOW

main63363-20020iRT102,104..ARL,SA197308-197905

L=955 & GREEN

63364SUPPORT, ROOF HEADLINING, NO.4

main63361-21010iRT102,104..ARL,SA197308-197905

L=950

main63362-20050iRT10#..ARL,GEN,PHL,SA197308-197905

L=960 & YELLOW

main63363-20020iRT10#..ARL,GEN,PHL,SA197308-197905

L=955 & GREEN

63365SUPPORT, ROOF HEADLINING, NO.5

main63361-21010iRT116,117,118197308-197905

main63364-20010iRT10#..ARL,GEN,PHL,SA197308-197701

sub63364-20011

main63364-20011iRT10#..ARL,GEN,PHL,SA197701-197905

63376CLIP, HEADLINING

main63376-20010iRT100,104,114..EUR,GEN197308-197905

63381RETAINER, HEADLINING, FRONT

main63372-20020iRT100,104..ARL,EUR,GEN197308-197905

main63372-20030iRT110,112,114197308-197808

main63372-21010iRT116,117,118197308-197701

FOR HANGING CLOTHLINING

main63372-21010iRT102,104..ARL,SA197308-197905

FOR HANGING CLOTH LINING

main63381-20010iRT10#..ARL,GEN,PHL,SA197701-197905

63391TRIM, ROOF HEADLINING, FRONT

main63391-20010iRT100,102..EUR,GEN197308-197403

main63391-20010-03iRT114197403-197701

GRAY,GRAY,TRIM1#

sub63391-20010

main63391-20010-13iRT100,104,114..ARL,EUR,GEN197701-197905

GRAY,GRAY,TRIM1#,2#

sub63391-20010

main63391-20010-15iRT100,104,114..ARL,EUR,GEN197701-197905

BEIGE,BEIGE,TRIM4#

sub63391-20010

main63391-20020-03iRT112,114197308-197403

GRAY,GRAY,TRIM1#

sub63391-20010

main63391-21010-01iRT116,118197701-197905

FOR HAGING CLOTH LINING,BLACK,BLACK,TRIM2#

sub63391-21010

main63391-21010-03iRT116,118197308-197701

FOR HANGING CLOTH LINING,GRAY,TRIM1#

sub63391-21010

main63391-21010-05iRT116,118197701-197905

FOR HANGING CLOTH LINING,BEIGE,BEIGE,TRIM4#

sub63391-21010

main63391-21010-13iRT10#..ARL,GEN,PHL,SA197701-197905

FOR HANGING CLOTH LINING,GRAY,GRAY,TRIM1#,2#

sub63391-21010

63392TRIM, ROOF HEADLINING, REAR

main63392-20010iRT10#197308-197404

sub63392-20011

main63392-20011iRT10#197404-197509

main63392-20011-03iRT100,104197509-197701

GRAY,GRAY,TRIM1#

sub63392-20011

main63392-20011-13iRT10#197701-197905

GRAY,GRAY,TRIM1#,2#

sub63392-20011

main63392-20011-15iRT10#197701-197905

BEIGE,BEIGE,TRIM4#

sub63392-20011

main63392-20020-03iRT110,112,114197308-197509

GRAY,GRAY,TRIM1#

sub63392-95500

main63392-95500-03iRT110,114197509-197701

GRAY,GRAY,TRIM1#

main63392-95500-13iRT114197701-197808

GRAY,GRAY,TRIM1#

main63392-95500-15iRT114197701-197808

BEIGE,BEIGE,TRIM4#

9016245001

main90162-45001

9016250001

main90162-50001

9016735010

main90167-35010

9016840002

main90168-40002

9046106048

main90461-06048

9354014012

main93540-14012

9461410400

main94614-10400

21 parts on this diagram · 3 diagrams in section
