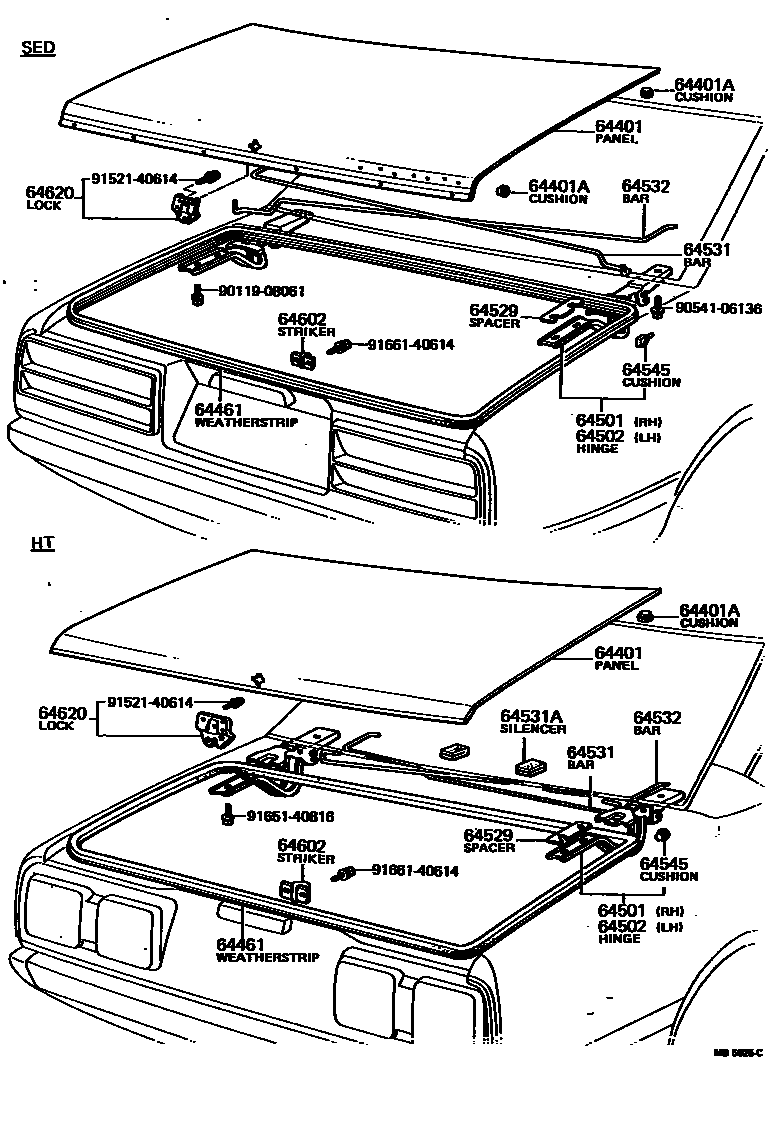

LUGGAGE COMPARTMENT DOOR & LOCK
64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64501HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH
64502HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH
64529SPACER, LUGGAGE COMPARTMENT DOOR HINGE
64531BAR, LUGGAGE DOOR HINGE TORSION, RH
64531ASILENCER(FOR LUGGAGE DOOR HINGE TORSION BAR)
FOR LUGGAGE COMPARTMENT
64532BAR, LUGGAGE DOOR HINGE TORSION, LH
64545CUSHION, LUGGAGE DOOR HINGE
64602STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK
64620LOCK ASSY, LUGGAGE COMPARTMENT DOOR
9011908061
main90119-08061
9054106136
main90541-06136
9152140614
main91521-40614
9165140816
main91651-40816
9166140614
main91661-40614
17 parts on this diagram · 1 diagram in section
