ROOF PANEL & BACK WINDOW GLASS

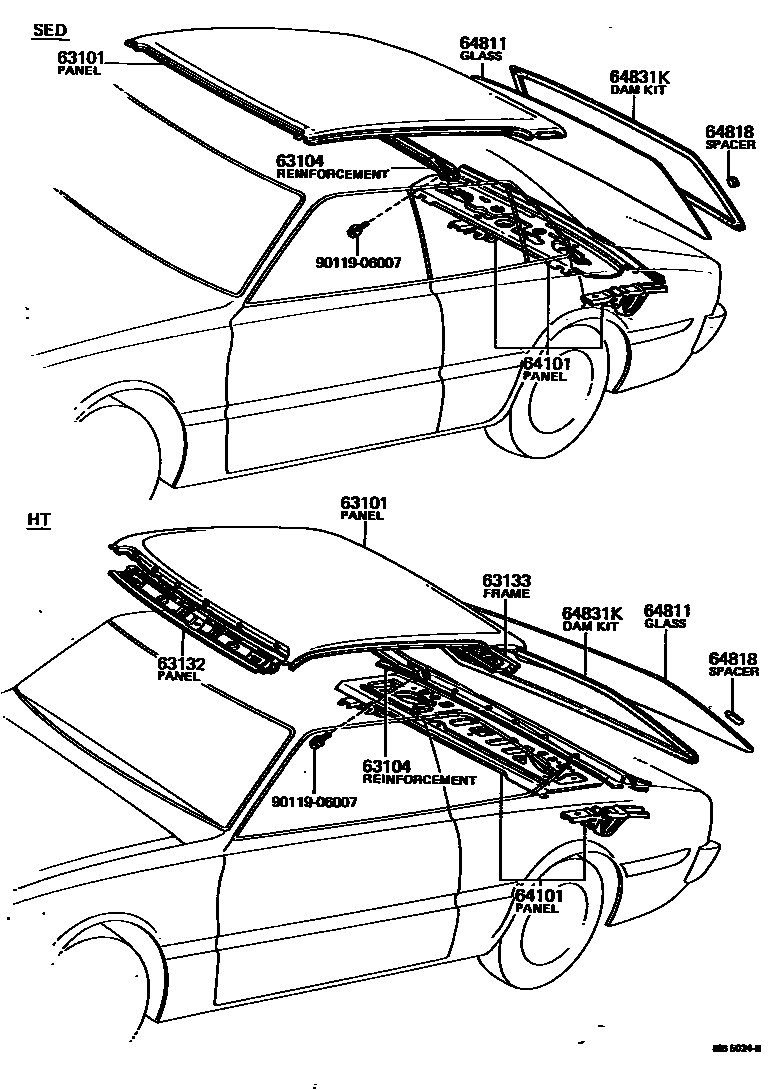

Parts diagram
63101PANEL SUB-ASSY, ROOF
main63101-20070i197308-197905
sub63111-20080¥48,900
sub63132-20060
sub63133-20060
sub63145-20030
main63101-21010i197308-197905
sub63111-21010
sub63132-20060
sub63145-20030
main63111-20070i197308-197808
63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER
main63104-21010i197308-197808
main63143-20060i197308-197905
63132PANEL, WINDSHIELD HEADER, INNER
main63132-20050i197308-197808
63133FRAME, BACK WINDOW OPENING, UPPER
main63143-20050i197308-197808
64101PANEL SUB-ASSY, UPPER BACK
main64101-20080i197308-197808
main64101-20090i197308-197603
sub64101-20100¥16,800
main64101-20100i¥16,800197603-197712
sub64101-20101
sub64531-20061¥1,290
sub64532-20061¥1,310
main64101-20101i197712-197905
main64101-95504i197407-197701
64811GLASS, BACK WINDOW
main64811-20170i¥0197308-197808
TN.TP.T=4.0
sub64811-20260¥64,400
main64811-20200i¥28,700197308-197905
TN.TP.T=4.0
sub64811-20290¥52,400
main64811-20220i¥25,100197308-197610
TP.T=5.0
sub64811-20300¥24,600
main64811-20220i¥25,100197701-197905
sub64811-20300¥24,600
main64811-20240i¥56,700197308-197905
ELECT.TP.T=4.0
sub64811-20250¥52,400
main64811-20250i¥52,400197308-197905
ELECT.TN.TP.T=4.0
main64811-20260i¥64,400197308-197808
ELECT.TN.TP.T=4.0
main64811-20270i¥30,700197509-197905
TN.TP.T=5.0
sub64811-20200¥28,700
main64811-20280i¥57,000197502-197808
ELECT.TP.T=4.0,ARCTIC
sub64811-20290¥52,400
main64811-20290i¥52,400197502-197808
ELECT.TN.TP.T=4.0,ARCTIC
main64811-20290i¥52,400197509-197701
ELECT.TN.TP.T=4.0
main64811-20300i¥24,600197504-197905
TP.T=4.0
sub64811-20200¥28,700
64818SPACER, BACK WINDOW GLASS
main56116-20030i¥200197308-197905
main56116-20040i197308-197808
64831KDAM KIT, BACK WINDOW GLASS
main04562-30010i¥2,160197308-197709
main04562-30020i¥2,170197709-197905
sub04562-30030¥2,680
9011906007
main90119-06007¥130

9 parts on this diagram · 2 diagrams in section
