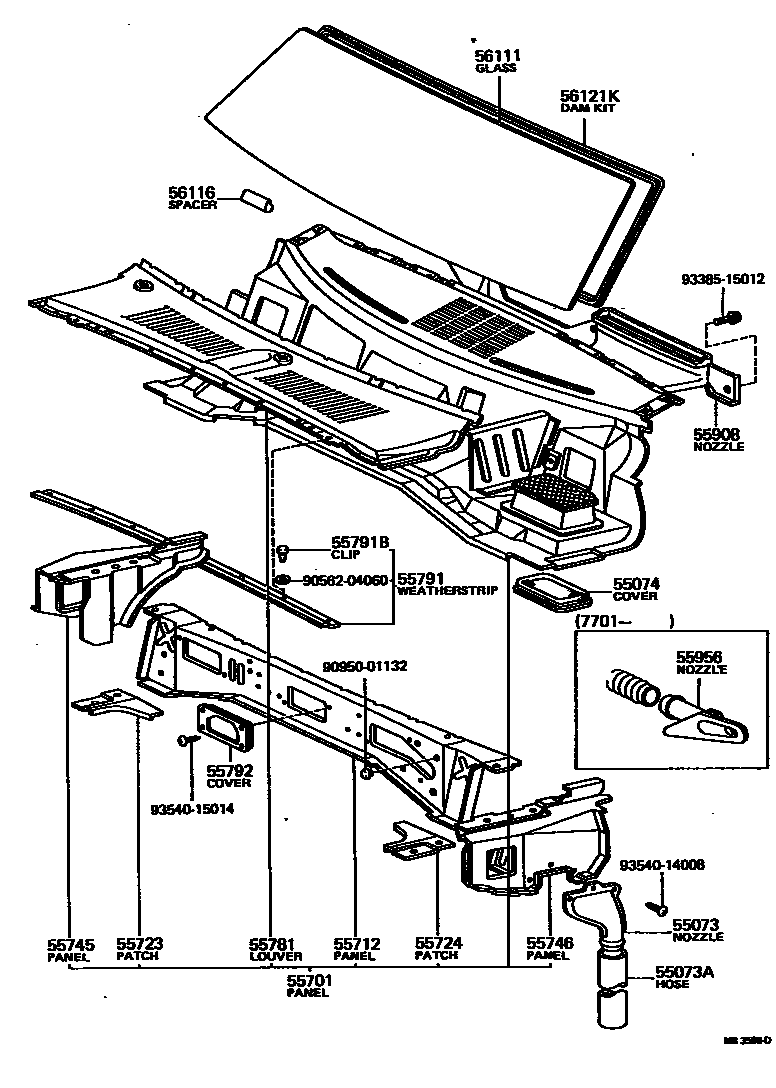

COWL PANEL & WINDSHIELD GLASS

55073NOZZLE SUB-ASSY, COWL PANEL WATER EXTRACT

main55073-20010iRT10#,11#197308-197511

55073AHOSE(FOR EXTRACT NOZZLE)

main90445-33003iRT10#,11#¥650197308-197511

55074COVER SUB-ASSY, COWL INNER HEATER AIR

main55074-20010iRT100,102,116,117..STD..(EUR,GEN)197308-197501

main55074-20011iRT100,102,116,117..STD..(EUR,GEN)¥2,090197501-197504

sub55849-20011

main55849-20011iRT100,102,116,117..STD..(EUR,GEN)197504-197905

55701PANEL SUB-ASSY, COWL

main55700-20060iRT10#,112,114,116,117,118..RHD197308-197701

sub55700-20090

main55700-20061iRT102,104,114..SA197701-197905

sub55700-20091

main55700-20080iRT10#,11#..LHD197308-197701

main55700-20081iRT100,104,11#..LHD197701-197905

main55700-20091iRT100,11#..RHD;RT104..RHD..(3FC,5F);RT104..RHD..4F..(ARL,EUR,GEN)197701-197905

55712PANEL, COWL TOP OUTSIDE, FRONT

main55712-20905iRT10#,112,114,116,117,118..RHD197308-197701

sub55712-20907

sub90463-10336¥130

main55712-20906iRT10#,11#..LHD197308-197701

sub55712-20908

sub90463-10336¥130

main55712-20907iRT10#,11#..RHD197701-197905

main55712-20908iRT100,104,11#..LHD197701-197905

55723PATCH, COWL TOP OUTER CORNER, RH

main55723-20020iRT10#,11#197308-197905

55724PATCH, COWL TOP OUTER CORNER, LH

main55724-20020iRT10#,11#197308-197905

55745PANEL, COWL TOP OUTSIDE, RH

main55706-20030iRT10#,11#¥8,100197308-197312

sub55706-20040

main55706-20040iRT10#,11#197312-197708

sub55706-20050

main55706-20050iRT10#,11#197708-197905

55746PANEL, COWL TOP OUTSIDE, LH

main55705-20030iRT100,104,11#..LHD197708-197905

main55707-20010iRT10#,11#¥8,100197308-197312

sub55707-20020¥8,100

main55707-20020iRT10#,11#¥8,100197312-197708

sub55707-20021

main55707-20021iRT10#,11#..RHD197708-197905

55781LOUVER, COWL VENTILATOR

main55711-20070iRT10#,112,114,116,117,118..RHD197308-197905

main55711-20080iRT10#,11#..LHD197308-197905

55791WEATHERSTRIP, HOOD TO COWL TOP

main53383-20030iRT10#,11#¥1,620197308-197905

55791BCLIP(FOR HOOD TO COWL TOP WEATHERSTRIP)

main90467-07050iRT10#,11#¥170197308-197610

sub90467-08008¥170

main90467-08008iRT10#,11#¥170197610-197905

55792COVER, WIPER MOTOR SERVICE HOLE

main55071-20010iRT10#,11#197308-197905

55908NOZZLE SUB-ASSY, DEFROSTER, RH

main55950-20010iRT10#,11#197308-197905

55956NOZZLE, SIDE DEFROSTER

main55961-20030iRT116;RT100,104,114,118..ARL,EUR,GEN,SA197701-197905

FOR RH.

main55962-20030iRT116;RT100,104,114,118..ARL,EUR,GEN,SA197701-197905

FOR LH.

56111GLASS, WINDSHIELD

main56111-20180iRT110,112,114¥42,200197308-197808

TN.ZN.TP.T=5.0

sub56111-20190¥83,800

main56111-20190iRT114..GEN¥83,800197308-197808

TN.LM.T=5.7

main56111-20210iRT100¥42,400197308-197905

TN.ZN.TP.T=5.0

sub56111-20230¥85,000

main56111-20220iRT10#,116,118..STD¥37,200197308-197905

ZN.TP.T=5.0

sub56111-20210¥42,400

main56111-20230iRT100,104..EUR,GEN,PHL¥85,000197308-197905

TN.LM.T=5.0

main56111-20240iRT100,102,116,117..STD¥74,100197308-197905

LM.T=5.0

sub56111-20230¥85,000

56116SPACER, WINDSHIELD GLASS

main56116-20030iRT10#,116,117,118¥200197308-197905

main56116-20040iRT110,112,114197308-197808

56121KDAM KIT, WINDSHIELD GLASS

main04562-30010iRT10#,11#¥2,160197308-197709

main04562-30020iRT10#,11#¥2,170197709-197905

sub04562-30030¥2,680

9056204060

main90562-04060

9095001132

main90950-01132¥180

9338515012

main93385-15012¥160

9354014008

main93540-14008¥90

9354015014

main93540-15014¥110

23 parts on this diagram · 1 diagram in section
