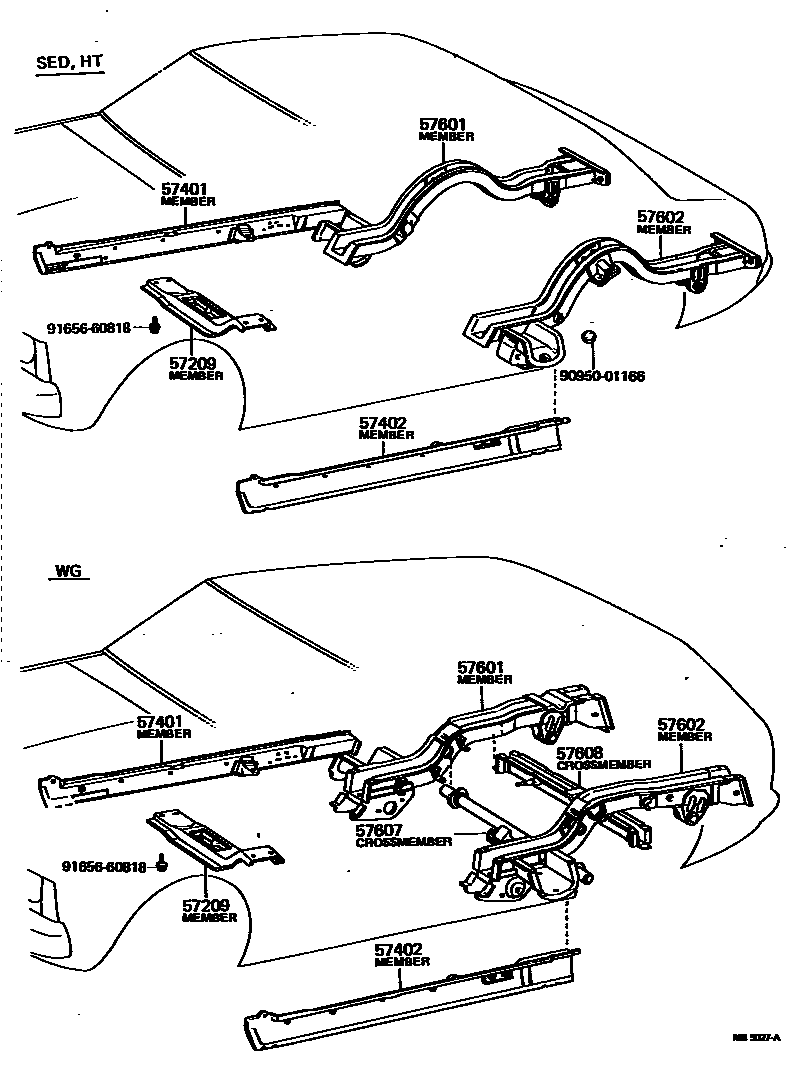

FLOOR SIDE MEMBER

57209MEMBER SUB-ASSY, ENGINE REAR SUPPORT

main57209-20040iRT10#,11#..4F,5F197308-197905

main57209-20050iRT100,116..3H197308-197509

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-20060iRT10#,112,114,116,117,118..RHD197308-197608

sub57401-20080

main57401-20070iRT100,102,110,112,116,117..LHD197308-197408

sub57401-20060

main57401-20080iRT10#,11#197608-197701

main57401-20081iRT118..GEN197701-197905

FOR W/SEAT BELT

main57401-20090iRT116..GEN;RT100,104,118197701-197905

FOR L/SEAT BELT

main57401-20120iRT114197701-197808

main57401-95500iRT114..GEN197701-197808

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-20060iRT10#,11#197308-197608

sub57402-20080

main57402-20070iRT100,102,110,112,116,117..LHD197308-197408

sub57402-20060

main57402-20080iRT10#,11#197608-197701

main57402-20081iRT118..GEN197701-197905

FOR W/SEAT BELT

main57402-20090iRT116..GEN;RT100,104,118197701-197905

FOR L/SEAT BELT

main57402-20120iRT114197701-197808

main57402-95500iRT114..GEN197701-197808

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-20050iRT10#,110,112,114..ARL,GEN,PHL,SA197308-197905

sub57601-20060

main57601-20060iRT102,104..EUR197308-197905

main57601-21010iRT116,117,118197308-197509

main57601-21011iRT116,118197509-197608

main57601-21012iRT116,118197701-197808

main57601-21020iRT116,118197608-197701

sub57601-21021

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-20050iRT10#,110,112,114..ARL,GEN,PHL,SA197308-197905

sub57602-20060

main57602-20060iRT102,104..EUR197308-197808

main57602-21010iRT116,117,118197308-197509

main57602-21011iRT116,118197509-197608

sub57602-21020

main57602-21012iRT116,118197701-197905

main57602-21020iRT116,118197608-197701

sub57602-21021

57607CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.1

main57605-21010iRT116,117,118197408-197509

main57605-91605iRT116,117,118197308-197408

sub57605-91606

main57606-21020iRT116,118197509-197905

57608CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.2

main57606-91604iRT116,117,118197308-197905

9095001166

main90950-01166

9165660818

main91656-60818

9 parts on this diagram · 1 diagram in section
