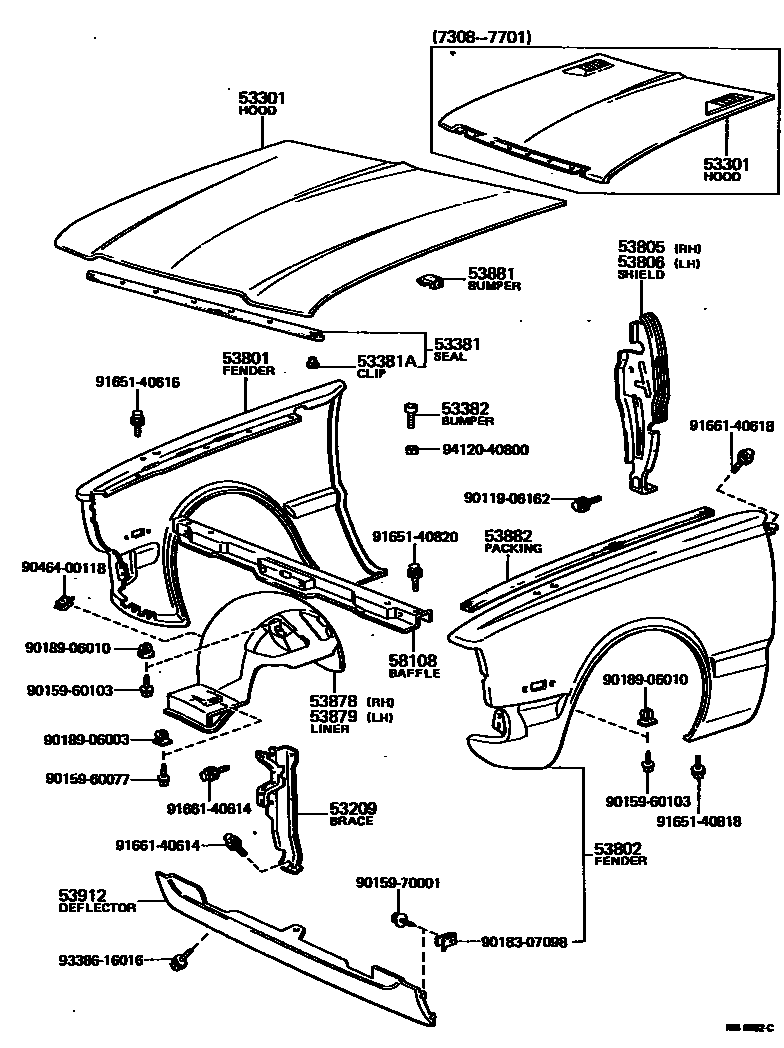

HOOD & FRONT FENDER

53209BRACE SUB-ASSY, HOOD LOCK

main53208-20010iRT10#,11#197701-197905

main53231-20020iRT10#,11#197308-197701

53301HOOD SUB-ASSY

main53301-20070iRT10#,11#197308-197701

main53301-20071iRT10#,11#197701-197708

sub53301-20072

main53301-20090iRT10#,11#197708-197905

sub53301-20072

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-20050iRT10#,11#197308-197905

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-07050iRT10#,11#197308-197610

sub90467-08008

main90467-08008iRT10#,11#197610-197905

53382BUMPER, HOOD, FRONT

main53382-20011iRT10#,11#197308-197905

sub53382-90A00

53801FENDER SUB-ASSY, FRONT RH

main53801-20240iRT10#,11#197308-197408

L/MIRROR HOLE

sub53801-20280

main53801-20260iRT100,104,112,116,117,118..EUR,GEN,PHL,SA197308-197905

W/MIRROR HOLE

main53801-20280iRT10#,11#197408-197708

L/MIRROR HOLE

main53801-20310iRT104..LHD..EUR197509-197708

sub53801-20311

main53801-20311iRT118..LHD..EUG197708-197808

main53801-20320iRT10#,11#197708-197905

L/MIRROR HOLE

53802FENDER SUB-ASSY, FRONT LH

main53802-20260iRT10#,11#197308-197408

L/MIRROR HOLE

sub53802-20300

main53802-20280iRT10#,112,114,116,117,118197308-197905

W/MIRROR HOLE

main53802-20300iRT10#,11#197408-197708

L/MIRROR HOLE

sub53802-20340

main53802-20330iRT118..LHD..EUG197509-197708

sub53802-20331

main53802-20331iRT118..LHD..EUG197708-197808

main53802-20340iRT10#,11#197708-197905

L/MIRROR HOLE

53805SHIELD SUB-ASSY, FRONT FENDER SPLASH, RH

main53805-20030iRT10#,11#197308-197808

53806SHIELD SUB-ASSY, FRONT FENDER SPLASH, LH

main53806-20030iRT10#,11#197308-197808

53878LINER, FRONT FENDER, RH

main53875-20010iRT100,104,114,116,118..EUR,GEN197608-197905

53879LINER, FRONT FENDER, LH

main53876-20020iRT100,104,114,116,118..EUR,GEN197608-197905

53881BUMPER, FENDER TO HOOD

main53881-20040iRT10#,11#197308-197905

53882PACKING, FRONT FENDER MAIN

main53882-20040iRT10#,11#197308-197708

main53882-20041iRT10#,11#197708-197905

53912DEFLECTOR, FRONT BUMPER STONE

main53911-20030iRT10#,11#197308-197905

58108BAFFLE SUB-ASSY, RADIATOR UPPER

main53165-20010iRT10#,11#197308-197905

9011906162

main90119-06162

9015960077

main90159-60077

9015960103

main90159-60103

9015970001

main90159-70001

9018307098

main90183-07098

9018906003

main90189-06003

9018906010

main90189-06010

9046400118

main90464-00118

9165140616

main91651-40616

9165140818

main91651-40818

9165140820

main91651-40820

9166140614

main91661-40614

9166140618

main91661-40618

9338616016

main93386-16016

9412040800

main94120-40800

30 parts on this diagram · 1 diagram in section
