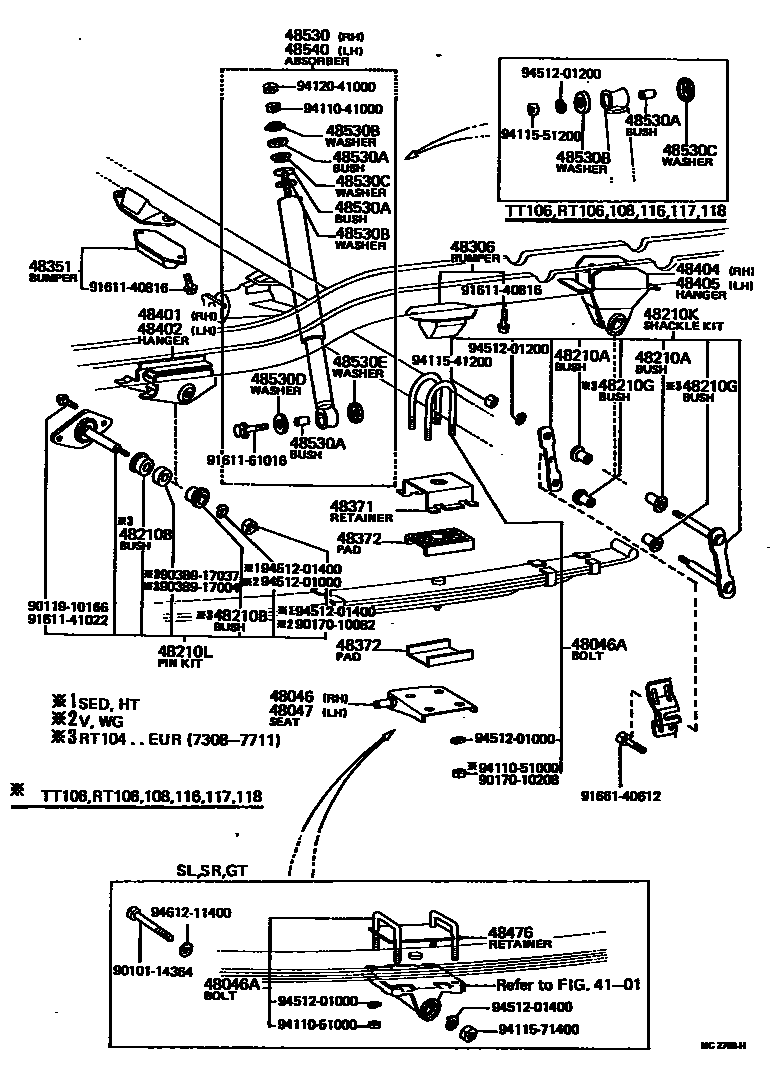

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

4101

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48046-20040iRT10#,110,112,114..ARL,GEN,PHL,SA197308-197905

main48046-23020iRT116,117,118197308-197611

main48046-23040iRT116,118197611-197905

48046ABOLT, U(FOR REAR SPRING)

main90118-10122iRT104..ARL197308-197509

sub90118-10123

main90118-10123iRT10#,110,112,114..GEN,PHL,SA197308-197905

sub90117-10003

sub90170-10208

sub94512-01000

main90118-10125iRT102,104..EUR197311-197808

sub90117-10193

sub90170-10208

sub94512-01000

main90118-12050iRT116,117,118197308-197905

sub90117-12138

sub94115-51200

sub94512-01200

sub94612-11200

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48047-20040iRT10#,110,112,114..ARL,GEN,PHL,SA197308-197905

main48047-23020iRT116,117,118197308-197611

main48047-23030iRT116,118197611-197905

48210SPRING ASSY, REAR RH

main48210-20230iRT100197308-197408

4-LEAVES

main48210-20231iRT100197408-197509

4-LEAVES

main48210-20232iRT100..GEN;RT100..DLX..PHL197509-197905

4-LEAVES

sub48210-20380

main48210-20241iRT102,104..EUR197311-197501

4-LEAVES

sub48210-20242

main48210-20242iRT102,104..EUR197501-197504

4-LEAVES

sub48210-20243

main48210-20243iRT102,104..EUR197504-197711

4-LEAVES

main48210-20251iRT100..LHD..3H..STD197406-197408

PHILIPPINES SPEC.,5-LEAVES

main48210-20252iRT100..LHD..3H..STD197408-197509

PHILIPPINES SPEC.,5-LEAVES

main48210-20253iRT110,114..GEN,PHL197509-197905

4-LEAVES

sub48210-20283

main48210-20280iRT112197308-197403

5-LEAVES

sub48210-20281

main48210-20280iRT112197308-197403

TAXI SPEC.,5-LEAVES

sub48210-20281

main48210-20281iRT100197403-197408

5-LEAVES

sub48210-20252

main48210-20281iRT110,112197403-197408

TAXI SPEC.,5-LEAVES

sub48210-20252

main48210-20282iRT100197408-197509

4-LEAVES

main48210-20282iRT100197408-197509

TAXI SPEC.4-LEAVES

main48210-20283iRT104..GEN197509-197905

4-LEAVES

main48210-20283iRT100..GEN197509-197808

TAXI SPEC.4-LEAVES

main48210-20310iRT114197308-197405

5-LEAVES

main48210-20340iRT114197405-197408

5-LEAVES

sub48210-20310

main48210-20341iRT102,104..ARL,SA197408-197509

5-LEAVES

main48210-20350iRT104..EUR197711-197808

4-LEAVES

main48210-21110iRT116,117,118197308-197403

4-LEAVES

sub48210-21111

main48210-21111iRT116,117,118197403-197509

4-LEAVES

sub48210-21112

main48210-21112iRT116,118197509-197905

4-LEAVES

48210ABUSH(FOR REAR SPRING SHACKLE UPPER)

main90385-15039iRT10#,110,112,114197308-197905

main90385-15070iRT116,117,118197308-197905

48210BBUSH(FOR REAR SPRING PIN)

main90385-13002iRT116,118197509-197905

main90385-13032iRT116,117,118197308-197509

main90385-17001iRT102,104..EUR197405-197711

main90385-17069iRT100..STD..PHL197308-197808

main90385-17069iRT100197501-197808

TAXI SPEC.

main90385-17072iRT102..EUG197311-197405

main90385-17073iRT100,110..DLX..PHL197401-197905

48210GBUSH(FOR REAR SPRING SHACKLE LOWER)

main90385-05001iRT10#,110,112,114..ARL,GEN,PHL,SA197408-197905

main90385-15039iRT10#,110,112,114197308-197711

main90385-15070iRT116,117,118197308-197905

48210KSHACKLE KIT, REAR SPRING

main04483-20010iRT104..EUR197711-197808

main04483-21010iRT116,117,118197308-197905

main04483-21030iRT10#,110,112,114..ARL,GEN,PHL,SA197408-197905

main04483-30011iRT102,104..EUR197308-197711

48210LPIN KIT, REAR SPRING

main04484-20010iRT116,117,118197308-197509

main04484-20020iRT100,110..DLX..PHL197401-197905

main04484-20030iRT102,104..EUR197311-197711

main04484-20040iRT10#,112,114..ARL,GEN,SA197308-197808

main04484-20040iRT100197501-197701

TAXI SPEC.

main04484-20050iRT104..EUR197711-197808

main04484-22020iRT116,118197509-197905

48306BUMPER SUB-ASSY, REAR SPRING

main48306-29015iRT116,117,118197308-197905

main48306-29025iRT100,110,112197308-197509

main48306-29035iRT102..EUR,SA197308-197905

48351BUMPER, DIFFERENTIAL CARRIER

main48351-19025iRT116,118197509-197905

sub48351-12020

main48351-29015iRT116,117,118197308-197509

sub48351-20020

main48351-29025iRT10#,110,112,114197308-197905

48371RETAINER, REAR SPRING PAD

main48371-20070iRT104..ARL197308-197509

main48371-20080iRT102,104,114..SA197308-197905

main48371-20080iRT100197308-197509

TAXI SPEC.

main48371-20110iRT100,104,110,114..ARL,GEN,PHL197509-197905

main48371-21030iRT116,117,118197308-197611

main48371-21031iRT116,118197611-197905

48372PAD, REAR SPRING

main48372-20030iRT102,104,110,112,114..ARL,GEN,PHL,SA197308-197905

main48372-20030iRT100197308-197509

TAXI SPEC.

main48372-21030iRT116,117,118197308-197611

main48372-22010iRT104..ARL197308-197905

main48372-23030iRT116,118197611-197905

48401BRACKET SUB-ASSY, REAR SPRING, FRONT RH

main57703-21010iRT116,117,118197308-197509

main57707-21010iRT116,118197509-197905

48402BRACKET SUB-ASSY, REAR SPRING, FRONT LH

main57704-21010iRT116,117,118197308-197509

main57708-21010iRT116,118197509-197905

48404BRACKET SUB-ASSY, REAR SPRING, REAR RH

main57701-91606iRT116,117,118197308-197905

48405BRACKET SUB-ASSY, REAR SPRING, REAR LH

main57701-91606iRT116,117,118197308-197905

48476RETAINER, U BOLT

main48476-20010iRT102,104..EUR197311-197808

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-29275iRT116,117,118197308-197410

sub48531-29276

main48531-29276iRT116,117,118197410-197905

sub48531-29278

main48531-29295iRT10#,110,112,114197308-197410

sub48531-29296

main48531-29296iRT10#,110,112,114197410-197505

sub48531-20111

main48531-29297iRT10#,110,112,114197505-197610

sub48531-29395

main48531-29297iRT100..GEN;RT100..STD..PHL197610-197707

TAXI SPEC.

sub48531-29395

main48531-29395iRT100..GEN;RT100..DLX..PHL;RT102,104,110,114197610-197905

sub48531-29396

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16060iRT10#,11#197308-197905

sub90385-16004

main90948-01003iRT10#,110,112,114197308-197905

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-02007iRT10#,110,112,114197308-197905

main90948-03003iRT116,117,118197308-197905

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-02002iRT10#,110,112,114197308-197905

main90948-03004iRT116,117,118197308-197905

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-03004iRT116,117,118197308-197905

main90948-03012iRT10#,110,112,114197308-197905

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03004iRT10#,110,112,114197308-197905

main90948-03012iRT116,117,118197308-197905

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-29275iRT116,117,118197308-197410

sub48531-29276

main48531-29276iRT116,117,118197410-197905

sub48531-29278

main48531-29295iRT10#,110,112,114197308-197410

sub48531-29296

main48531-29296iRT10#,110,112,114197410-197505

sub48531-20111

main48531-29297iRT10#,110,112,114197505-197610

sub48531-29395

main48531-29297iRT100..GEN;RT100..STD..PHL197610-197707

TAXI SPEC.

sub48531-29395

main48531-29395iRT100..GEN;RT100..DLX..PHL;RT102,104,110,114197610-197905

sub48531-29396

9010114364

main90101-14364

9011910166

main90119-10166

9017010082

main90170-10082

9017010208

main90170-10208

9038917004

main90389-17004

9038917037

main90389-17037

9161140816

main91611-40816

9161141022

main91611-41022

9161161016

main91611-61016

9166140612

main91661-40612

9411041000

main94110-41000

9411051000

main94110-51000

9411541200

main94115-41200

9411551200

main94115-51200

9411571400

main94115-71400

9412041000

main94120-41000

9451201000

main94512-01000

9451201200

main94512-01200

9451201400

main94512-01400

9461211400

main94612-11400

46 parts on this diagram · 6 diagrams in section
