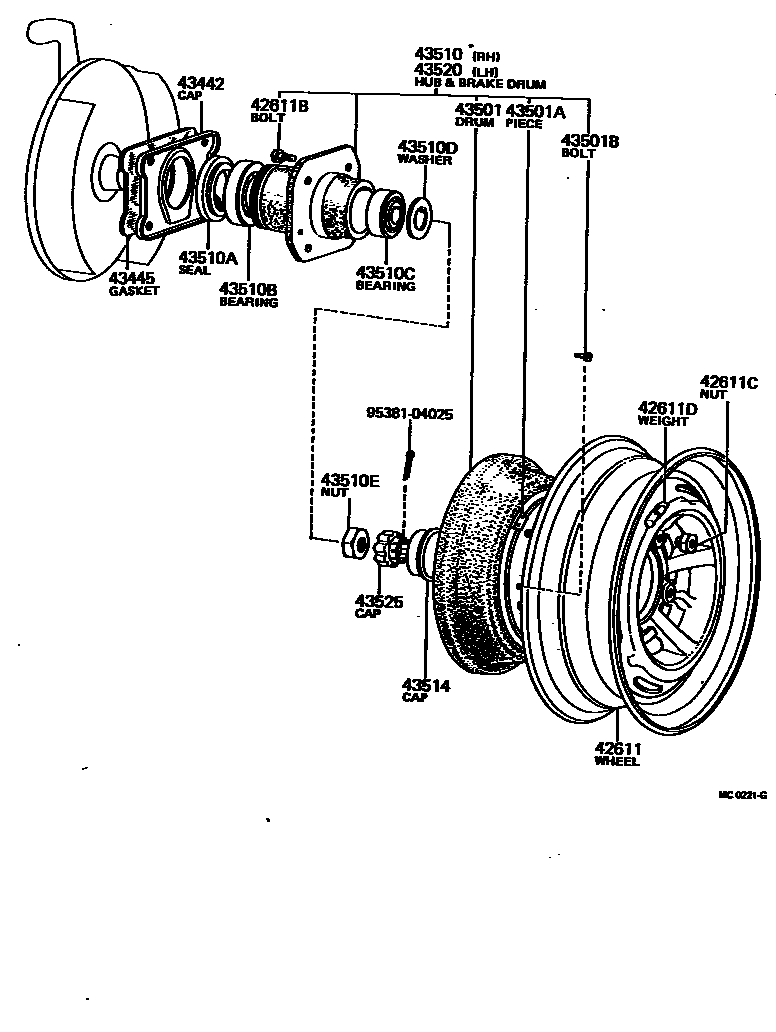

FRONT AXLE HUB

0001 1100,116.. -PHL 0004 1

42611WHEEL, DISC

main42601-21022iRT116;RT100..GEN;RT100..STD..PHL197308-197609

4J-13,6PRY

sub42611-21050

main42611-12260iRT104,114,118..GEN197701-197905

4.5J-13,165 SR 13,6.45-13-4

sub42611-13040

main42611-12260iRT104,114..GEN197512-197609

4.5J-13,FOR TUBELESS

sub42611-13040

main42611-12260iRT104,114..GEN197609-197701

4.5J-13

sub42611-13040

main42611-12270iRT104,114..GEN197512-197609

4.5J-13,FOR W/TUBE

main42611-13030iRT114..RHD..4F..GEN197603-197609

4.5J-13,W/T.,FOR 6PR.

main42611-13040iRT118197701-197905

4.5J-13,FOR 6.45-13-6

sub42611-22121

main42611-13040iRT114..RHD..4F..GEN197609-197701

4.5J-13,FOR 6PR.

sub42611-22121

main42611-13040iRT118..RHD..GEN197512-197602

4.5J-13,T/L.,FOR 6PR.

sub42611-22121

main42611-13040iRT116,118..GEN197511-197602

4,5J-13,FOR TUBELESS

sub42611-22121

main42611-14060iRT116,117,118..GEN197407-197511

4.5J-13,FOR TUBELESS

main42611-14210iRT114..RHD..4F..GEN197512-197603

4.5J-13,W/T.,FOR 6PR.

main42611-14220iRT100,104,114..GEN197511-197603

4.5J-13,FOR TUBELESS

main42611-14221iRT100,104,114,116,118..GEN197609-197905

4.5J-13,6.45-13-4,165 SR 13

main42611-14230iRT100,104,114,116,118..GEN197511-197603

4.5J-13,FOR W/TUBE

sub42611-13040

main42611-20050iRT100..GEN197308-197609

4J-13,FOR W/TUBE

sub42611-20060

main42611-20060iRT100..GEN;RT100,110..DLX..PHL197609-197808

4J-13,FOR 5.60-13-4

main42611-20060iRT100..GEN;RT100,110..DLX..PHL197308-197609

4J-13,FOR 4PR. TUBELESS,WSW.

main42611-20070iRT102,104,114..SA197308-197807

5J-14,FOR TUBELESS

sub42611-20071

main42611-20070iRT102,114..SA197609-197905

5J-14

sub42611-20071

main42611-20081iRT118..EUR197311-197510

5J-14

main42611-20140iRT102,112,116,117..GEN197308-197407

4.5J-13,TUBELESS

main42611-20150iRT100,102,112..GEN197308-197407

4.5J-13,FOR W/TUBE

main42611-20170iRT104,118..ARL197509-197605

5J-14

sub42611-20171

main42611-20171iRT104,118..ARL,EUR197605-197701

5J-14

sub42611-20210

main42611-20190iRT104..EUR197509-197510

5J-14

main42611-20210iRT104,118..ARL197701-197905

5J-14,6.45-14-4

main42611-20230iRT104..SDN197608-197701

5J-14

sub42611-20171

main42611-21030iRT117..GEN197308-197407

4.5J-13,FOR TUBELESS

main42611-21040iRT112..RHD..4F197404-197407

4.5J-13,FOR W/T.THAILAND SPEC.

main42611-21040iRT117..GEN197308-197407

4.5J-13,FOR W/TUBE

main42611-21050iRT116;RT100..GEN;RT100..STD..PHL197609-197701

4J-13,6PRY

sub42611-21060

main42611-21050iRT100,116197701-197808

4J-13,FOR 5.60-13-6

sub42611-21060

main42611-22030iRT112..RHD..4F197407-197509

4.5J-13,FOR W/T.THAILAND SPEC.

sub42611-14060

main42611-22030iRT114,116,117,118..GEN197407-197511

4.5J-13,FOR W/TUBE

sub42611-14060

main42611-22080iRT100,104,114..GEN197407-197511

4.5J-13,FOR TUBELESS

sub42611-14060

main42611-22090iRT10#,112,114,116,117,118..GEN197407-197511

4.5J-13,FOR W/TUBE

sub42611-14060

main42611-22110iRT117,118..EUR197311-197609

5J-14

main42611-22121iRT114..RHD197701-197905

4.5J-13,FOR 6.45-13-6

main42611-22121iRT100,104,114,116,118..GEN197603-197701

4,5J-13

main42611-22130iRT114,116,118..GEN197511-197609

4.5J-13,FOR W/TUBE

main42611-22140iRT104,118..ARL,EUR197701-197905

5J-14,165 SR 14,175 SR 14

sub42611-20210

main42611-22140iRT104..SA197807-197905

5J-14

sub42611-20210

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02021iRT10#,11#197308-197703

sub90942-02035

main90942-02035iRT104,118..LHD..STD197703-197905

FR BRAKE=DRUM

sub90942-02047

main90942-02035iRT104..LHD..4F..STD..GEN197711-197905

L=36-37

sub90942-02047

main90942-02036iRT10#,11#197703-197711

FR BRAKE=DISC,L=33-34

sub90942-02048

main90942-02036iRT100,104,11#..GEN,PHL197711-197905

sub90942-02048

42611CNUT, HUB (FOR FRONT AXLE)

main90942-01007iRT102..GEN,SA197308-197905

main90942-01017iRT102,104..EUR197311-197411

CAP NUT

main90942-01020iRT104,114,118..ARL,EUR,GEN197411-197704

CAP NUT

main90942-01021iRT104,114,118..ARL,EUR,GEN197704-197905

CAP NUT

42611DWEIGHT, BALANCE(FOR FRONT DISC WHEEL)

main90942-03017iRT10#,11#197308-197905

20G.

main90942-03020iRT10#,11#197308-197905

30G.

main90942-03022iRT10#,11#197308-197905

40G.

main90942-03025iRT10#,11#197308-197905

50G.

main90942-03027iRT10#,11#197308-197905

60G.

main90942-03029iRT10#,11#197308-197905

70G.

main90942-03031iRT10#,11#197308-197905

80G.

main90942-03041iRT10#,11#197308-197905

10G.

43442CAP, KNUCKLE GREASE RETAINER, INNER

main43442-20030iRT104..LHD..4F..STD..GEN197701-197905

TAXI

main43442-20030iRT100,116197308-197808

43445GASKET, KNUCKLE GREASE RETAINER CAP

main43445-20030iRT100,116197308-197808

main43445-20030iRT104..LHD..4F..STD..GEN197701-197905

TAXI

43501DRUM SUB-ASSY, FRONT BRAKE

main42431-20031iRT100..GEN;RT100..STD..PHL197308-197905

main42431-20031iRT100..GEN197605-197808

W/P VALVE

main43512-20050iRT116;RT100..GEN;RT100..DLX..PHL197308-197808

43501APIECE, BALANCE (FOR FRONT BRAKE DRUM)

main90937-01045iRT100..GEN197308-197905

10G,10G.DRUM TANDEM

main90937-01046iRT102..LHD..3FC..GEN197308-197905

25G,25G.DRUM TANDEM

main90937-01047iRT102..LHD..3FC..GEN197308-197905

40G,40G.DRUM TANDEM

main90937-01065iRT100..GEN;RT100..STD..PHL197308-197902

55G.DRUM TANDEM

main90937-01117iRT116;RT100..GEN;RT100..DLX..PHL197308-197808

10G,10G.

main90937-01141iRT116;RT100..GEN;RT100..DLX..PHL197308-197808

20G.

main90937-01142iRT100,116..GEN197308-197808

30G.

main90937-01143iRT100,116..GEN197308-197808

40G.

main90937-01144iRT100,116..GEN197308-197808

50G.

main90937-01145iRT116;RT100..GEN;RT100..DLX..PHL197308-197808

10G,60G.

main90937-01217iRT104..GEN197902-197905

55G,55G.DRUM TANDEM

43501BBOLT, SET (FOR FRONT BRAKE DRUM SETTING)

main90113-10007iRT100,116197308-197905

43510HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH

main43510-20070iRT116;RT100..GEN;RT100..DLX..PHL197308-197808

main43510-20080iRT102,117..LHD..(3FC,4F)197308-197905

FOR DRUM

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-48122iRT10#,11#197308-197905

sub90311-48001

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-31067iRT10#,11#197308-197905

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-19037iRT10#,11#197308-197905

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-20005iRT10#,11#197308-197905

43510ENUT (FOR STEERING KNUCKLE)

main90170-19185iRT10#,11#197308-197905

43514CAP, FRONT HUB GREASE

main43514-22020iRT10#,11#197308-197905

43520HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH

main43510-20070iRT116;RT100..GEN;RT100..DLX..PHL197308-197808

main43510-20080iRT100197308-197905

FOR DRUM

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-22010iRT10#,11#197308-197905

9538104025

main95381-04025

19 parts on this diagram · 2 diagrams in section
