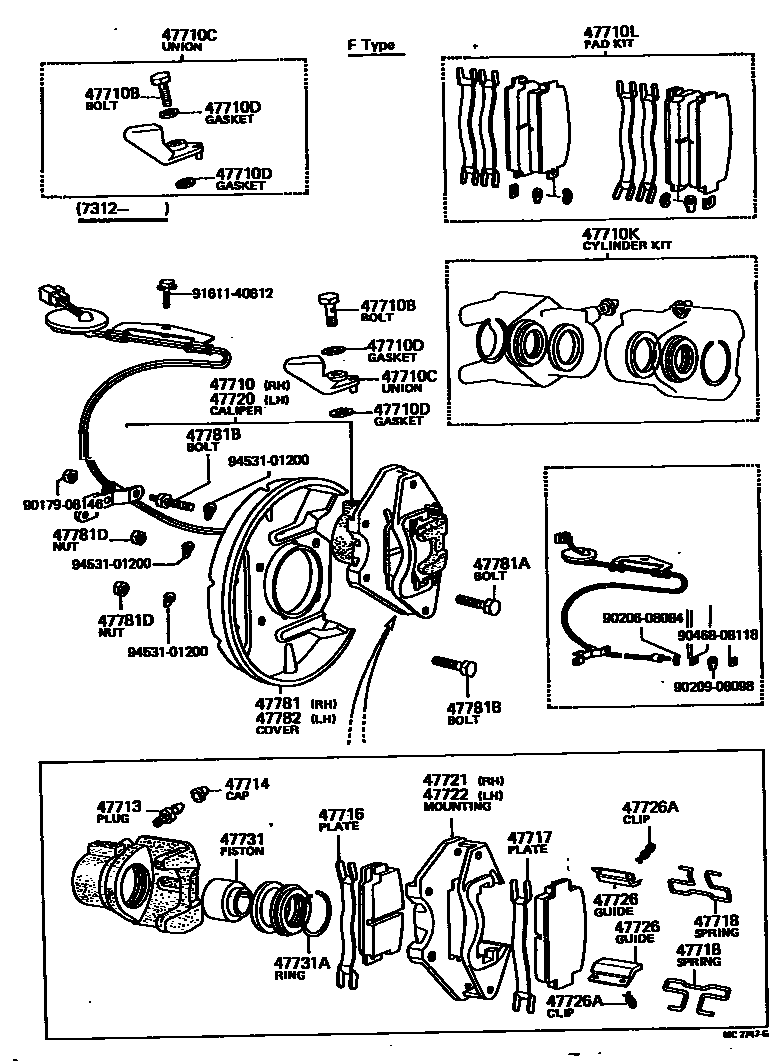

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

47710CALIPER ASSY, DISC BRAKE, FRONT, RH

main47710-20070iRT10#,112,114,116,117,118..GEN197308-197608

13IN.DISC

sub47730-20040

main47710-20070iRT10#,112,114,116,117,118..GEN197308-197605

13IN,DISC

sub47730-20040

main47710-20090iRT102,104,114,117,118..ARL,EUR,SA197308-197312

141N.D1SC

main47710-20091iRT102,104,114,117,118..ARL,EUR,SA197312-197501

141N.D1SC

47710BBOLT, UNION(FOR FRONT DISC BRAKE CALIPER)

main90401-10092iRT100,102,112,116,117..GEN197308-197312

13IN.DISC

main90401-10098iRT110197312-197905

13IN.DISC

47710CUNION(FOR FRONT DISC BRAKE CALIPER)

main90404-10292iRT100,102,112,116,117..GEN197308-197312

RH.

sub90999-99022

main90404-10293iRT100,102,112,116,117..GEN197308-197312

LH.

sub90999-99023

main90999-99022iRT10#,112,114,116,117,118..GEN197312-197905

RH.

main90999-99023iRT100,104,11#..GEN,PHL197312-197905

LH.

47710DGASKET(FOR FRONT DISC BRAKE CALIPER UNION)

main90430-10074iRT10#,112,114,116,117,118..GEN197308-197905

13IN.DISC

47710KCYLINDER KIT, DISC BRAKE, FRONT

main04479-14010iRT110197405-197905

main04479-20041iRT10#,11#197308-197405

sub04479-14010

main04479-30021iRT102,104,114,117,118..ARL,EUR,SA197308-197905

sub04479-30022

47710LPAD KIT, DISC BRAKE, FRONT

main04491-20050iRT10#,11#197308-197701

13IN.DISC

sub04491-20051

main04491-20051iRT100,104,11#197701-197905

13IN.DISC

sub04465-28250

main04491-20090iRT102,104,114,117,118..ARL,EUR,SA197308-197312

141N.D1SC

sub04491-30060

main04491-22070iRT102,104,114,117,118..ARL,EUR,SA197312-197905

141N.D1SC

sub04491-22071

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12020iRT10#,112,114,116,117,118..GEN197308-197905

13IN.DISC

main47547-20030iRT102,104,114,117,118..ARL,EUR,SA197308-197905

141N.DISC

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iRT110197308-197905

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-14010iRT110197308-197905

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47716-14010iRT110197308-197905

47718SPRING, FRONT DISC BRAKE CYLINDER SUPPORT

main47718-14010iRT110197308-197905

47720CALIPER ASSY, DISC BRAKE, FRONT, LH

main47720-20070iRT10#,112,114,116,117,118..GEN197308-197608

13IN.DISC

sub47750-20030

main47720-20090iRT102,104,114,117,118..ARL,EUR,SA197308-197312

141N.D1SC

sub47750-20050

main47720-20091iRT102,104,114,117,118..ARL,EUR,SA197312-197501

141N.D1SC

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-20020iRT110197308-197905

13IN.DISC

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-20020iRT110197308-197905

47726GUIDE, FRONT DISC BRAKE CYLINDER

main47726-14010iRT110197308-197905

47726ACLIP(FOR FRONT DISC BRAKE CYLINDER)

main90468-12017iRT100,102,112,116,117..GEN197308-197405

sub90468-12134

main90468-12134iRT110197405-197905

47731PISTON, FRONT DISC BRAKE

main47731-20030iRT110197308-197905

main47731-20040iRT102,104,114,118..ARL,EUR,SA197308-197905

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-54038iRT110197308-197905

13IN.DISC

sub90522-58001

main90522-58026iRT102,104,114,117,118..ARL,EUR,SA197308-197905

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-20040iRT102,104,114,117,118..ARL,EUR,SA197308-197905

141N.DISC

main47781-20050iRT110197308-197905

13IN.DISC

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90101-12019iRT10#,11#197701-197905

main91161-71250iRT10#,112,114,116,117,118..ARL,EUR,GEN,SA197308-197701

47781BBOLT(FOR DUST COVER SETTING)

main90101-12018iRT10#,11#197701-197905

sub90119-12068

main91161-71230iRT10#,112,114,116,117,118..ARL,EUR,GEN,SA197308-197701

sub91162-81230

47781DNUT(FOR DUST COVER SETTING)

main94115-51200iRT10#,11#197308-197905

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-20040iRT102,104,114,117,118..ARL,EUR,SA197308-197905

main47782-20050iRT110197308-197905

13IN.DISC

9017908146

main90179-08146

9020608084

main90206-08084

9020908098

main90209-08098

9046808118

main90468-08118

9161140612

main91611-40612

9453101200

main94531-01200

29 parts on this diagram · 6 diagrams in section
