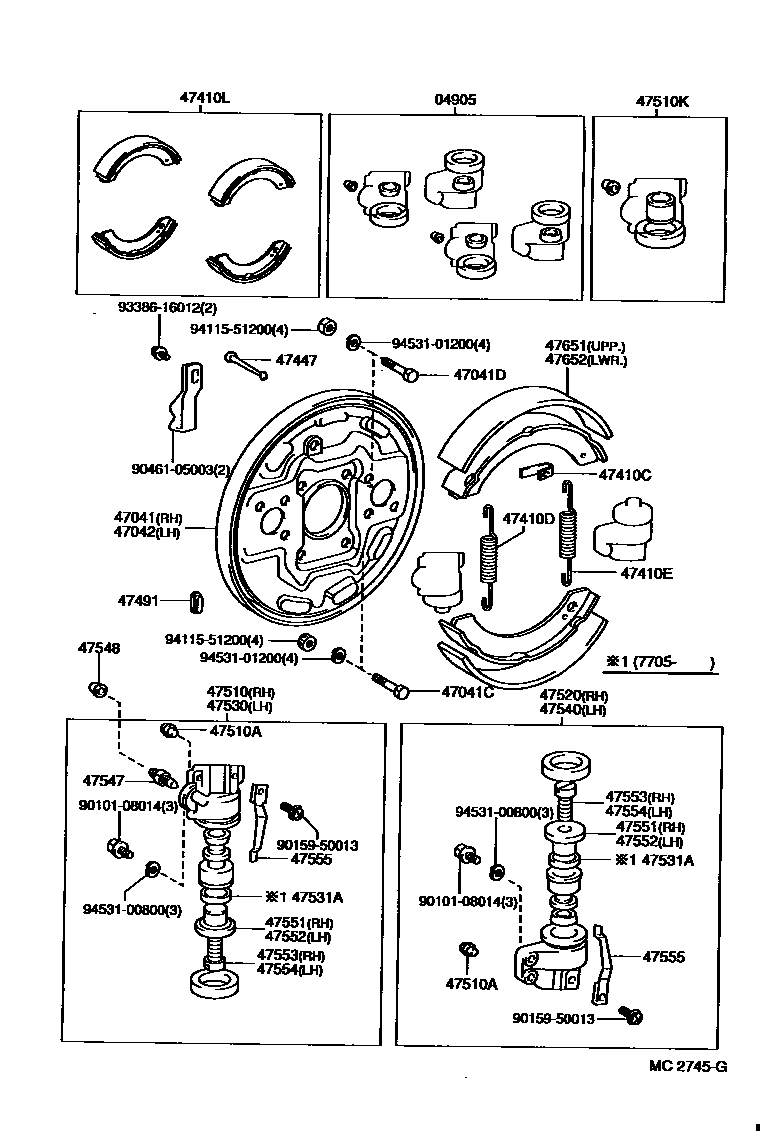

FRONT DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1

04905CUP KIT, FRONT WHEEL CYLINDER

main04905-12020iRT100,116197605-197808

EXCEPT PHILIPPINES

main04905-12020iRT100,116197308-197605

EXCEPT RT100L-KRFM

main04905-20050iRT100197308-197509

TAXI SPEC.

main04905-20050iRT100197509-197605

TAXI SPEC.,EXCEPT RT100L-KDFM

main04905-20050iRT100197605-197808

TAXI SPEC.,EXCEPT PHILIPPINES

main04905-20050iRT118..LHD197509-197905

TAXI SPEC.,EXCEPT EUROPE,AUSTRALIA

47041PLATE SUB-ASSY, BRAKE BACKING, FRONT RH

main47041-20070iRT100,116197308-197402

sub47041-20071

main47041-20071iRT116;RT100..GEN;RT100..DLX..PHL197402-197808

main47041-20080iRT100197308-197402

TAXI SPEC

sub47041-20081

main47041-20080iRT100197308-197402

TAXI SPEC.

sub47041-20081

main47041-20081iRT100..GEN;RT100..STD..PHL197402-197810

TAXI SPEC.

sub47041-20082

main47041-20082iRT104,118..GEN197810-197905

TAXI SPEC.

47041CBOLT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)

main90101-12019iRT104..LHD..4F..STD..GEN197701-197905

TAXI SPEC.

main90101-12019iRT100,116..GEN197701-197808

main91161-71250iRT100,116..GEN197605-197701

TAXI SPEC.

main91161-71250iRT104,118..LHD..(3FC,4F)197406-197605

main91171-71250iRT100,116197308-197406

47041DBOLT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING)

main90101-12018iRT104..LHD..4F..STD..GEN197701-197905

TAXI SPEC.

sub90119-12068

main90101-12018iRT100,116..GEN197701-197808

sub90119-12068

main91161-71230iRT104,118..LHD..(3FC,4F)197406-197605

sub91162-81230

main91161-71230iRT100,116..GEN197605-197701

TAXI SPEC.

sub91162-81230

main91171-71230iRT102,117..LHD..(3FC,4F)197308-197406

47042PLATE SUB-ASSY, BRAKE BACKING, FRONT LH

main47042-20070iRT100,116197308-197402

sub47042-20071

main47042-20071iRT100,116..GEN197402-197808

main47042-20080iRT100197308-197402

TAXI SPEC.

sub47042-20081

main47042-20081iRT104..LHD..4F..STD..GEN197402-197810

TAXI SPEC.

sub47042-20082

main47042-20082iRT104,118..GEN197810-197905

TAXI SPEC.

47410CSPRING(FOR FRONT BRAKE SHOE HOLD DOWN)

main47446-10010iRT102,117..LHD..(3FC,4F)197308-197808

main47446-10010iRT104..LHD..4F..STD..GEN197605-197905

TAXI SPEC.

47410DSPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)

main90506-18313iRT116;RT100..GEN;RT100..DLX..PHL197308-197808

main90506-23388iRT102,117..LHD..(3FC,4F)197308-197905

TAXI SPEC.

47410ESPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)

main90506-18313iRT116;RT100..GEN;RT100..DLX..PHL197308-197808

main90506-23388iRT102,117..LHD..(3FC,4F)197308-197905

TAXI SPEC.

47410LSHOE KIT, FRONT BRAKE

main04494-20090iRT100197308-197403

TAXI SPEC.

sub04494-20091

main04494-20091iRT102,117..LHD..(3FC,4F)197403-197905

TAXI SPEC.

sub04494-20092

main04494-20100iRT100,116197308-197403

sub04494-20101

main04494-20101iRT116;RT100..GEN;RT100..DLX..PHL197403-197808

sub04494-14011

47447PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

main47447-20020iRT116;RT100..GEN;RT100..DLX..PHL197308-197808

main47447-20030iRT100197308-197905

TAXI SPEC.

47491PLUG, HOLE(FOR FRONT BRAKE)

main47491-20020iRT100,116197308-197808

main47491-20020iRT104..LHD..4F..STD..GEN197605-197905

TAXI SPEC.

47510CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER)

main47510-19095iRT100,116..GEN197705-197808

main47510-29105iRT100,116..GEN197308-197705

sub47510-19095

main47510-29115iRT102,117..LHD..(3FC,4F)197308-197412

TAXI SPEC.

sub47510-29116

main47510-29116iRT100..GEN197412-197905

TAXI SPEC.

47510ASEAT, UNION(FOR FRONT WHEEL BRAKE CYLINDER)

main90410-03015iRT104,118..LHD..(3FC,4F)197308-197905

47510KCYLINDER KIT, FRONT WHEEL

main04473-12021iRT100,116..GEN197308-197808

main04473-20050iRT102,117..LHD..(3FC,4F)197308-197412

TAXI SPEC.

sub04473-20051

main04473-20051iRT100197412-197905

TAXI SPEC.

47520CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER)

main47520-19085iRT100,116..GEN197705-197808

main47520-29035iRT100,116..GEN197308-197705

sub47520-19085

main47520-29045iRT102,117..LHD..(3FC,4F)197308-197412

TAXI SPEC.

sub47520-29046

main47520-29046iRT102,117..LHD..(3FC,4F)197412-197905

TAXI SPEC.

47530CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER)

main47530-19095iRT100,116..GEN197705-197808

main47530-29105iRT100,116..GEN197308-197705

sub47530-19095

main47530-29115iRT102,117..LHD..(3FC,4F)197308-197412

TAXI SPEC.

sub47530-29116

main47530-29116iRT102,117..LHD..(3FC,4F)197412-197905

TAXI SPEC.

47531AINSERT, WHEEL CYLINDER PISTON(FOR FRONT BRAKE)

main47532-14010iRT100,116..GEN197705-197808

47540CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER)

main47540-19085iRT100,116..GEN197705-197808

main47540-29035iRT100,116..GEN197308-197705

sub47540-19085

main47540-29045iRT100197308-197412

TAXI SPEC.

sub47540-29046

main47540-29046iRT102,117..LHD..(3FC,4F)197412-197905

TAXI SPEC.

47547PLUG, BLEEDER(FOR FRONT DRUM BRAKE)

main47547-12010iRT100,116197308-197905

47548CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT)

main31478-30010iRT104,118..LHD..(3FC,4F)197308-197808

main31478-30010iRT104..LHD..4F..STD..GEN197605-197905

TAXI SPEC.

47551NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

main47551-14010iRT116;RT100..GEN;RT100..DLX..PHL197308-197608

sub47551-14011

main47551-14011iRT100,116..GEN197608-197705

main47551-14020iRT100,116..GEN197705-197808

main47551-20010iRT102,117..LHD..(3FC,4F)197308-197905

TAXI SPEC.

47552NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

main47552-14010iRT100,116..GEN197308-197608

sub47552-14011

main47552-14011iRT100,116..GEN197608-197705

main47552-14020iRT100,116..GEN197705-197808

main47552-20010iRT100197308-197905

TAXI SPEC.

47553BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

main47553-12011iRT116;RT100..GEN;RT100..DLX..PHL197308-197608

main47553-20010iRT102,117..LHD..(3FC,4F)197308-197905

TAXI SPEC.

main47553-20020iRT100,116..GEN197608-197808

47554BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

main47554-12011iRT116;RT100..GEN;RT100..DLX..PHL197308-197608

main47554-20010iRT102,117..LHD..(3FC,4F)197308-197905

TAXI SPEC.

main47554-20020iRT100,116..GEN197608-197808

47555SPRING, ADJUSTER LOCK(FOR FRONT BRAKE)

main47555-12050iRT116;RT100..GEN;RT100..DLX..PHL197509-197808

RH.

main47555-14011iRT100,116197308-197509

RH.

main47555-20011iRT102,117..LHD..(3FC,4F)197308-197905

TAXI SPEC.

main47556-12030iRT100,116..GEN197509-197808

LH.

main47556-14011iRT100,116197308-197509

LH.

47651LINING, FRONT BRAKE SHOE(FOR FRONT OR UPPER)

main47651-20100iRT100..GEN;RT100..STD..PHL197308-197905

TAXI SPEC.

sub47651-20101

main47651-20110iRT100,116197308-197403

sub47651-20111

main47651-20111iRT116;RT100..GEN;RT100..DLX..PHL197403-197808

47652LINING, FRONT BRAKE SHOE(FOR REAR OR LOWER)

main47651-20100iRT102,117..LHD..(3FC,4F)197308-197905

TAXI SPEC.

sub47651-20101

main47651-20110iRT100,116197308-197403

sub47651-20111

main47651-20111iRT100,116..GEN197403-197808

9010108014

main90101-08014

9015950013

main90159-50013

9046105003

main90461-05003

9338616012

main93386-16012

9411551200

main94115-51200

9453100800

main94531-00800

9453101200

main94531-01200

34 parts on this diagram · 2 diagrams in section
