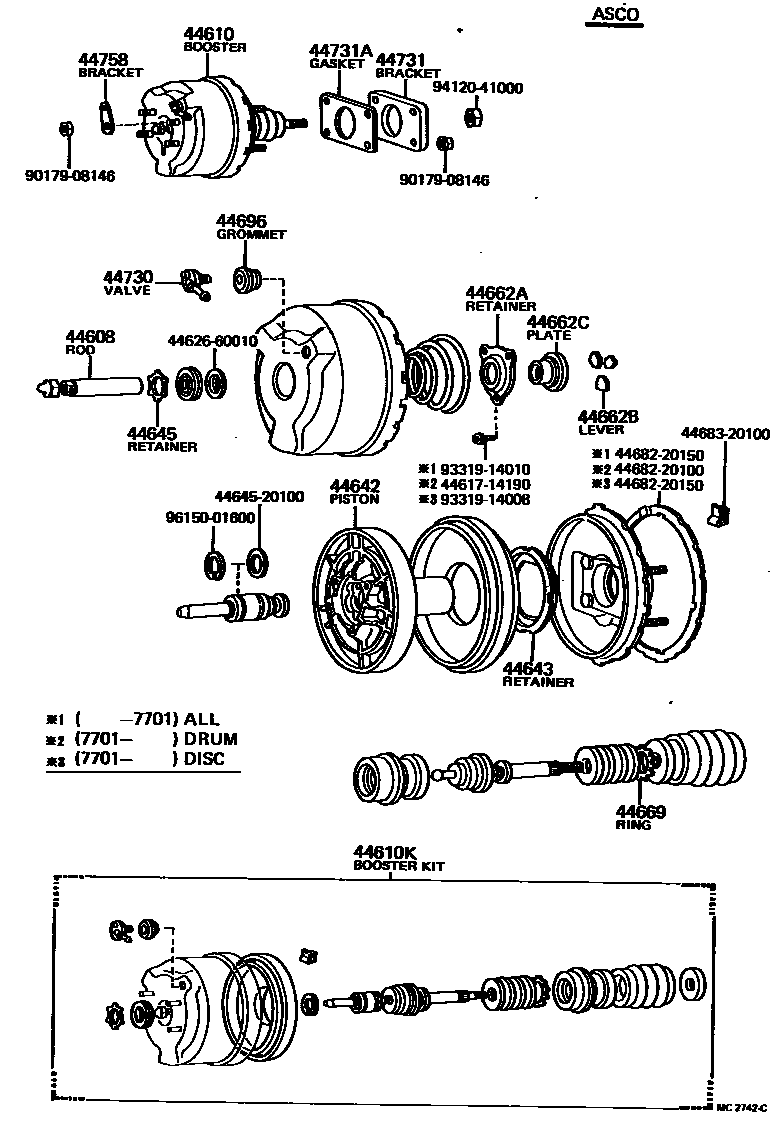

BRAKE BOOSTER & VACUUM TUBE

0001 1 0003 1 0004 1 0005 1 0006 1 0007 1

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-30050iRT100..GEN;RT102,104,11#;RT100..STD..PHL197308-197905

ASCO

sub44606-35100

main44608-14040iRT110197308-197905

JKK.

44610BOOSTER ASSY, BRAKE

main44610-20100iRT100..RHD197308-197510

DRUM TANDEM,W/BOOSTER

main44610-20101iRT100..RHD197510-197701

DRUM TANDEM,W/BOOSTER

sub44610-20100

main44610-20102iRT100..RHD197701-197808

DRUM TAXI SPEC.

main44610-20120iRT100..LHD197308-197510

DRUM TANDEM,W/BOOSTER

main44610-20121iRT104..LHD..4F..STD..GEN197510-197905

DRUM TANDEM,W/BOOSTER

sub44610-20120

main44610-20130iRT104..RHD..(3FC,5F);RT100,102,114,116,118..RHD;RT104..RHD..4F..(EUR,GEN,SA)197308-197701

main44610-20170iRT100,104,114,116,118..LHD197509-197701

FOR 13IN.DISC

main44610-20170iRT102,112,117..LHD197308-197311

main44610-20170iRT102..LHD..DLX;RT102..LHD..STD..GEN;RT100,110,112,116,117..LHD197311-197509

13IN.DISC

main44610-20171iRT116..PHL197701-197808

FRONT DISC

main44610-20171iRT104,114,118..LHD197701-197905

main44610-20270iRT100,116..LHD197308-197311

13IN.DISC

sub44610-20170

sub44758-22030

sub44773-20101

main44610-20290iRT100..LHD197308-197311

DRUM TANDEM

sub44610-20120

sub44758-20050

sub44773-20101

main44610-20320iRT102,104,117,118..LHD..EUR197311-197808

main44610-20410iRT100..RHD197701-197808

FRONT DISC

main44610-20410iRT104,118..ARL197610-197905

44610KBOOSTER KIT, BRAKE

main04443-14070iRT110197308-197701

main04443-20040iRT100..LHD197308-197311

DRUM TANDEM

sub04443-14150

main04443-20060iRT100,116..LHD197308-197311

ASCO,13IN.DISC

main04443-20070iRT100,116..LHD197308-197311

JKK.13IN.DISC

main04443-20080iRT100..RHD197308-197701

ASCO,DRUM TANDEM

main04443-20081iRT100..RHD197701-197808

ASCO,DRUM TAXI SPEC.

main04443-20090iRT100..RHD197308-197701

JKK.DRUM TANDEM

main04443-20091iRT100..RHD197701-197808

JKK.FRONT DRUM TAXI SPEC.

main04443-20100iRT10#,112,114,116,117,118..RHD197308-197701

ASCO,DISC

main04443-20110iRT10#,112,114,116,117,118..RHD197308-197701

JKK.,DISC

main04443-20120iRT110197308-197701

ASCO,13IN.DISC

main04443-20121iRT116..PHL197701-197808

ASCO,FRONT DISC

main04443-20121iRT116..PHL197701-197905

ASCO

main04443-20131iRT116..PHL197701-197808

JKK,FRONT DISC

main04443-20131iRT104,114,118..LHD197701-197905

JKK.

main04443-20140iRT102,104,117,118..LHD..EUR197311-197808

ASCO

main04443-20150iRT102,104,117,118..LHD..EUR197311-197808

JKK.,14 IN.DISC

main04443-20160iRT102..LHD..3FC197308-197905

ASCO,DRUM TANDEM

main04443-20160iRT100..LHD..GEN;RT100..DLX..PHL197605-197808

DRUM TANDEM,TAXI SPEC.

main04443-20160iRT100..LHD..GEN;RT100..STD..PHL197311-197605

DRUM TANDEM

main04443-20190iRT100..RHD197701-197808

ASCO,FRONT DISC

main04443-20190iRT104,118..ARL197610-197905

ASCO

main04443-20200iRT102,104,114,118..RHD197610-197905

JKK.

main04443-20200iRT100..RHD197701-197808

JKK.FRONT DISC

44642PISTON, BRAKE BOOSTER

main44642-14170iRT104,118..ARL197610-197905

ASCO

main44642-14170iRT100..RHD197701-197808

ASCO,DISC

main44642-14190iRT100..LHD..GEN197701-197808

ASCO,DRUM TAXI SPEC.

main44642-14190iRT104..LHD..4F..STD..GEN197701-197905

ASCO,DRUM

main44642-20080iRT100..RHD197308-197808

JKK.DRUM TANDEM

main44642-20100iRT102..LHD..3FC..GEN197308-197701

ASCO,DRUM TANDEM

main44642-20100iRT100..GEN;RT100..STD..PHL197308-197701

ASC0,DRUM TANDEM

main44642-20100iRT100..RHD197701-197808

ASCO,DRUM TAXI SPEC.

main44642-20140iRT116..PHL197308-197905

JKK.

main44642-20140iRT102,104,117,118..RHD..EUG197311-197701

JKK. 14IN. DISC

main44642-20140iRT116..PHL197701-197808

JKK.DISC

main44642-20150iRT10#,112,114,116,117,118..ARL,GEN,SA197308-197808

ASCO,DISC

main44642-20150iRT104,114,118..LHD197701-197905

ASCO

main44642-20150iRT102,104,117,118..RHD..EUG197311-197701

ASCO,14IN. DISC

main44642-20330iRT102,104,117,118..LHD..EUR197311-197808

JKK.14IN. DISC

main44642-30030iRT102,104,117,118..LHD..EUR197311-197808

ASCO,14IN. DISC

44643RETAINER, DIAPHRAGM

main44643-60010iRT10#,11#197308-197905

44645RETAINER, BOOSTER PUSH ROD SEAL

main44628-60010iRT10#,11#197308-197905

ASCO

main44645-22020iRT10#,112,114,116,117,118..ARL,EUR,GEN,SA197308-197905

JKK.

44662RETAINER, REACTION, NO.1

main44662-60010iRT102,104,117,118..LHD..EUR197311-197808

ASCO,14 IN. DISC

44662ARETAINER, REACTION, NO.2

main44662-14190iRT104..LHD..4F..STD..GEN197701-197905

ASCO,FRONT DRUM TAXI SPEC.

main44662-20100iRT10#,112,114,116,117,118..ARL,GEN,SA197308-197905

ASCO

main44662-20100iRT110197311-197701

ASCO,14 IN. DISC

main44662-20100iRT116..PHL197701-197808

ASCO,FRONT DISC

main44663-30030iRT102,104,117,118..LHD..EUR197311-197808

ASCO,14 IN. DISC

44662BLEVER, REACTION

main44661-14190iRT104..LHD..4F..STD..GEN197701-197905

ASCO,FRONT DRUM

main44661-14190iRT100..GEN197701-197808

ASCO,FRONT DRUM TAXI SPEC.

main44661-60010iRT100..GEN;RT102,104,11#;RT100..STD..PHL197308-197905

sub44661-35100

44662CPLATE, REACTION, NO.1

main44653-20100iRT104..LHD..4F..STD..GEN197701-197905

ASCO,DRUM

main44653-20100iRT100..GEN197701-197808

ASCO,DRUM TAXI SPEC.

main44653-20100iRT100..GEN;RT100..STD..PHL197308-197701

ASCO,DRUM TANDEM

main44653-20150iRT10#,11#..ARL,GEN,PHL,SA197308-197905

ASCO

main44653-20150iRT116..PHL197701-197808

ASCO,DISC

main44653-30030iRT102,104,117,118..LHD..EUR197311-197808

44669RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER)

main44669-60010iRT100..GEN;RT102,104,11#;RT100..STD..PHL197308-197905

44696GROMMET, CHECK VALVE

main44673-25020iRT100,102,112,116,117..RHD197308-197509

JKK.

sub90480-24438

main90480-24438iRT10#,114,116,118197308-197905

JKK.

sub90480-24517

main90480-24439iRT100..GEN;RT102,104,11#;RT100..STD..PHL197308-197905

ASCO

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-14030iRT100,116..LHD197308-197311

JKK.13IN.DISC

sub44730-30010

main44730-14040iRT100,116..LHD197308-197311

ASCO

sub44730-22080

main44730-20030iRT10#,11#..RHD197610-197905

ASCO

main44730-20040iRT10#,11#..RHD197610-197905

JKK

main44730-22030iRT104..RHD..(3FC,5F);RT100,102,114,116,118..RHD;RT104..RHD..4F..(EUR,GEN,SA)197308-197701

JKK.,DISC

sub44730-20040

main44730-22040iRT104..RHD..(3FC,5F);RT100,102,114,116,118..RHD;RT104..RHD..4F..(EUR,GEN,SA)197308-197701

ASCO

sub44730-20030

main44730-22050iRT100,104,11#..LHD197308-197905

JKK.,DISC

sub44730-22090

main44730-22060iRT102,112,117..LHD197308-197905

ASCO

44731BRACKET, BRAKE BOOSTER, FRONT

main44731-20060iRT10#,112,114,116,117,118..RHD197308-197905

main44731-20070iRT100..LHD..GEN;RT100..STD..PHL;RT102,104,11#..LHD197308-197905

44731AGASKET, BRAKE BOOSTER BRACKET

main44785-14010iRT10#,112,114,116,117,118..RHD197308-197905

main44785-22010iRT10#,11#..LHD197308-197801

sub44785-30020

main44785-30020iRT100,104,11#..LHD197801-197905

44758BRACKET, VACUUM CHECK VALVE

main44758-20050iRT100197308-197510

DRUM TANDEM

sub44758-20051

main44758-20051iRT100..GEN;RT100..STD..PHL197510-197905

DRUM TANDEM

main44758-20060iRT100,116..LHD197308-197808

main44758-20090iRT102,104,114,118..ARL,GEN,SA197610-197905

main44758-20090iRT116..PHL197701-197808

FRONT DISC

main44758-22030iRT110197308-197701

4461714190JOINT, BOOSTER PIPE

main44617-14190

4462660010RETAINER, BOOSTER ROD CUP

main44626-60010

4464520100RETAINER, BOOSTER PUSH ROD SEAL

main44645-20100

4468220100VALVE, BOOSTER VACUUM

main44682-20100

4468220150VALVE, BOOSTER VACUUM

main44682-20150

4468320100CONNECTOR, BOOSTER BODY

main44683-20100

9017908146

main90179-08146

9331914008

main93319-14008

9331914010

main93319-14010

9412041000

main94120-41000

9615001600

main96150-01600

27 parts on this diagram · 6 diagrams in section
