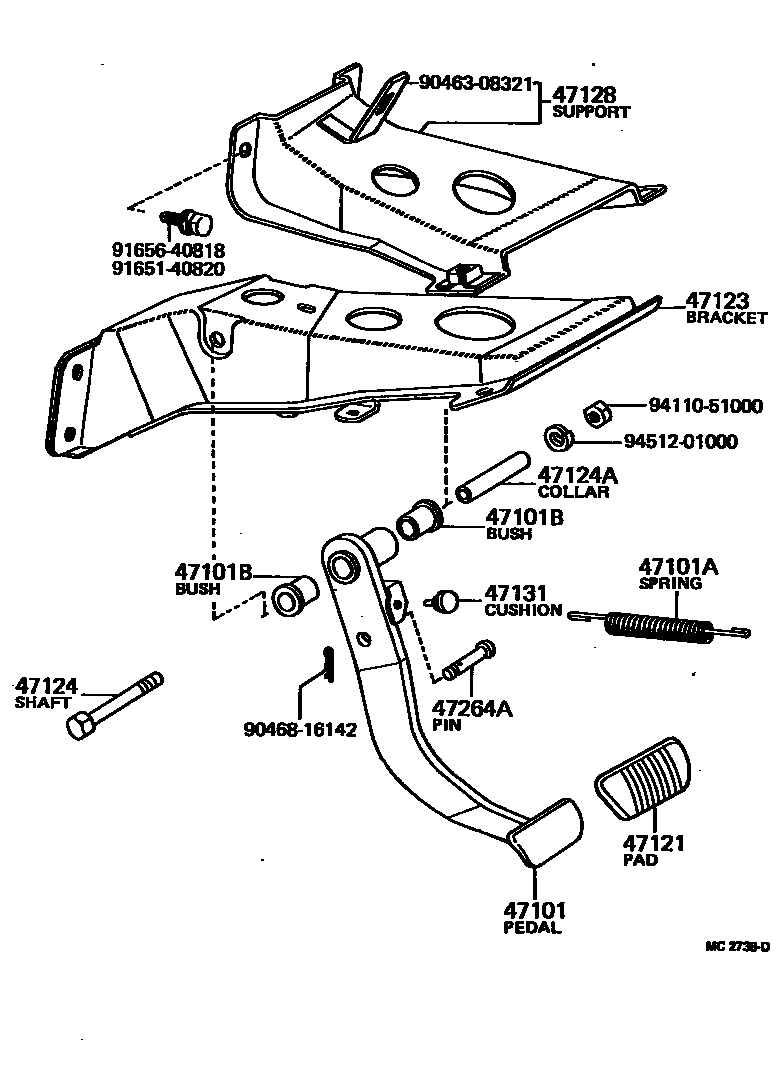

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101PEDAL SUB-ASSY, BRAKE

main47101-20160iRT10#,112,114,116,117,118..RHD..MTM197308-197905

main47101-20170iRT102,104,112,114,118..RHD..3FC197308-197905

main47101-20180iRT10#,11#..LHD..MTM197308-197612

sub47101-20200

main47101-20190iRT102,104,112,114..LHD..3FC197308-197808

main47101-20200iRT100,104,11#..LHD..MTM197612-197905

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-14010iRT10#,11#197701-197905

main90506-16333iRT10#,11#197308-197701

47101BBUSH(FOR BRAKE PEDAL)

main90386-13192iRT10#,11#197308-197905

47121PAD, BRAKE PEDAL

main31321-20020iRT10#,11#..MTM197308-197905

main47121-30010iRT102,104,112,114,118..3FC197308-197905

47123BRACKET, BRAKE PEDAL

main55106-20110iRT10#,112,114,116,117,118..RHD..MTM197308-197411

main55106-20111iRT10#,112,114,116,117,118..RHD..MTM197411-197701

main55106-20112iRT10#,11#..RHD..MTM197701-197905

main55106-20120iRT102,104,112,118..RHD..3FC197308-197411

main55106-20121iRT102,104,112,114,118..RHD..3FC197411-197701

main55106-20122iRT104,114,118..RHD..3FC197701-197905

sub55106-20112

main55106-20130iRT10#,11#..LHD197308-197701

sub55106-20131

main55106-20131iRT100,104,11#..LHD197701-197905

47124SHAFT, BRAKE PEDAL

main90101-10039iRT10#,11#197308-197905

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iRT10#,11#197308-197905

47128SUPPORT SUB-ASSY, PEDAL BRACKET

main55156-20020iRT10#,112,114,116,117,118..RHD197308-197701

main55156-20021iRT10#,11#..RHD197701-197905

main55156-20030iRT10#,11#..LHD197308-197701

main55156-20031iRT100,104,11#..LHD197701-197905

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06008iRT10#,11#197308-197905

47264APIN(FOR PUSH ROD)

main90249-10064iRT10#,11#197308-197905

9046308321

main90463-08321

9046816142

main90468-16142

9165140820

main91651-40820

9165640818

main91656-40818

9411051000

main94110-51000

9451201000

main94512-01000

16 parts on this diagram · 2 diagrams in section
