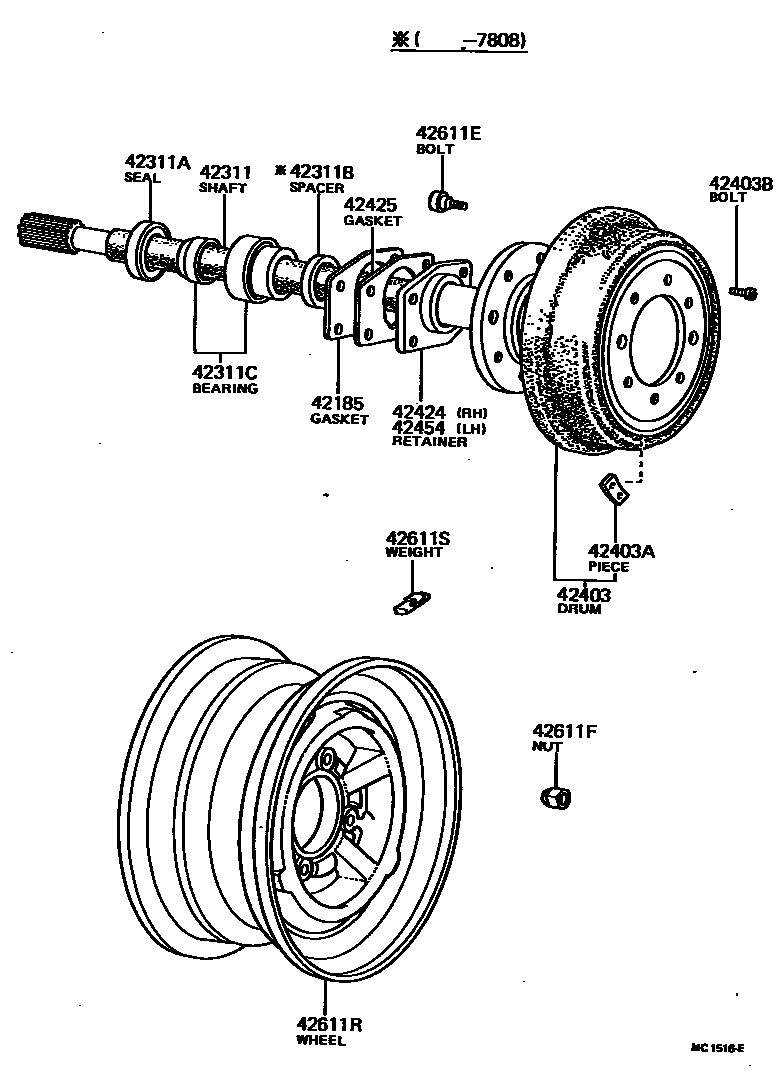

REAR AXLE SHAFT & HUB

42185GASKET, REAR AXLE HOUSING END

main42185-22020iRT10#,11#197308-197905

42311SHAFT, REAR AXLE

main42311-15010iRT10#197808-197905

main42311-20060iRT10#,110,112,114197308-197808

sub42311-15010

sub90369-35003

main42311-22051iRT116,117,118197308-197312

sub42311-22053

sub90369-35003

main42311-22052iRT116,117,118197312-197611

sub42311-22100

sub90369-35003

main42311-22100iRT116,118197611-197905

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-52059iRT10#,11#197308-197905

42311BSPACER(FOR REAR AXLE SHAFT BEARING)

main90560-35153iRT10#,11#197308-197808

42311CBEARING(FOR REAR AXLE SHAFT)

main04421-30010iRT10#,11#197308-197611

sub04421-30011

main04421-30011iRT10#,11#197611-197905

sub04421-30012

42403DRUM SUB-ASSY, REAR BRAKE

main42431-14060iRT10#,11#197707-197905

sub42431-12060

main42431-20040iRT10#,11#197308-197701

sub42431-22050

main42431-22050iRT10#,11#197701-197707

sub42431-12060

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90937-01117iRT10#,11#197308-197905

10G,10G.

main90937-01118iRT10#,11#197701-197905

20G,20G.

main90937-01119iRT10#,11#197701-197905

30G,30G.

main90937-01120iRT10#,11#197701-197806

40G,40G.

main90937-01121iRT10#,11#197701-197806

50G,50G.

main90937-01122iRT10#,11#197701-197806

60G,60G.

main90937-01141iRT10#,11#197308-197701

20G.

main90937-01142iRT10#,11#197308-197701

30G.

main90937-01143iRT10#,11#197308-197701

40G.

main90937-01144iRT10#,11#197308-197701

50G.

main90937-01145iRT10#,11#197308-197701

10G,60G.

main90937-01195iRT10#,11#197806-197905

40G,40G.

main90937-01196iRT10#,11#197806-197905

50G,50G.

main90937-01197iRT10#,11#197806-197905

60G,60G.

42403BBOLT, SET (FOR REAR BRAKE DRUM SETTING)

main90113-10007iRT10#,11#197308-197505

42424RETAINER, REAR AXLE BEARING, OUTER, RH

main42424-21010iRT10#,11#197308-197905

42425GASKET, REAR AXLE BEARING RETAINER

main42425-22020iRT10#,11#197308-197905

42454RETAINER, REAR AXLE BEARING, OUTER, LH

main42454-21010iRT10#,11#197308-197905

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02021iRT10#,11#197308-197703

sub90942-02035

main90942-02035iRT10#,11#197703-197905

sub90942-02047

42611FNUT, HUB (FOR REAR AXLE)

main90942-01007iRT102,104..ARL,GEN,SA197308-197905

main90942-01017iRT102,104..EUR197311-197411

CAP NUT

main90942-01020iRT104,114,118..ARL,EUR,GEN197411-197704

CAP NUT

main90942-01021iRT104,114,118..ARL,EUR,GEN197704-197905

CAP NUT

42611SWEIGHT, BALANCE(FOR REAR DISC WHEEL)

main90942-03017iRT10#,11#197308-197905

20G.

main90942-03020iRT10#,11#197308-197905

30G.

main90942-03022iRT10#,11#197308-197905

40G.

main90942-03025iRT10#,11#197308-197905

50G.

main90942-03027iRT10#,11#197308-197905

60G.

main90942-03029iRT10#,11#197308-197905

70G.

main90942-03031iRT10#,11#197308-197905

80G.

main90942-03041iRT10#,11#197308-197905

10G.

14 parts on this diagram · 1 diagram in section
