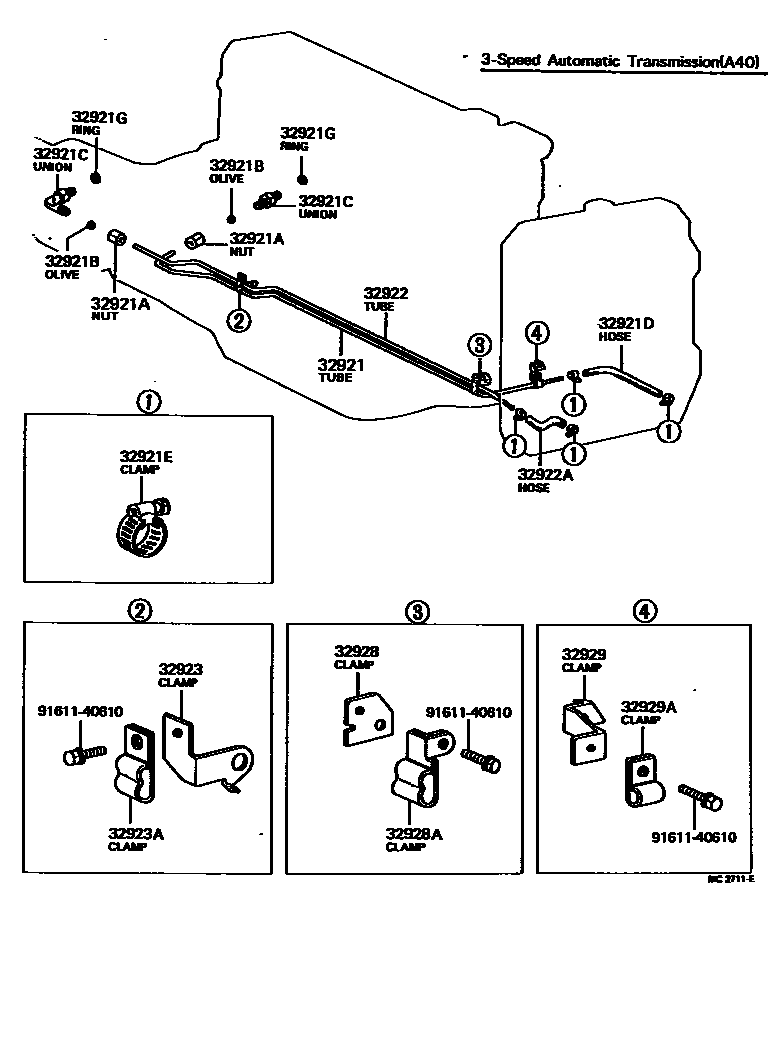

OIL COOLER & TUBE (ATM)

32921TUBE, OIL COOLER INLET, NO.1

main32921-22030iRT102,104,112,118..3FC197308-197310

main32921-22031iRT102,104,112,114,118..3FC197310-197905

32921ANUT, UNION(FOR OIL COOLER TUBE)

main90402-13041iRT102,104,112,114,118..3FC197308-197905

32921BOLIVE(FOR OIL COOLER TUBE)

main96395-71400iRT102,104,112,114,118..3FC197308-197905

32921CUNION(FOR OIL COOLER TUBE)

main90404-13265iRT102,104,112,114,118..3FC197308-197905

FOR INLET

main90407-13060iRT102,104,112,114,118..3FC197308-197905

FOR OUTLET

sub90407-13002

32921DHOSE(FOR OIL COOLER INLET)

main90445-14259iRT102,104,112,114,118..3FC197308-197905

32921ECLAMP, HOSE(FOR OIL COOLER)

main90460-14085iRT102,104,112,114,118..3FC197308-197905

sub90460-20004

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iRT102,104,112,114,118..3FC197308-197905

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-20060iRT102,104,112,114,118..3FC197308-197905

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-14236iRT102,104,112,114,118..3FC197308-197905

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-20021iRT102,104,112,118..3FC197308-197411

sub32923-20030

main32923-20022iRT102,104,112,114,118..3FC197411-197905

32923ACLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main90461-08070iRT102,104,112,114,118..3FC197409-197905

main90461-08076iRT102,104,112,118..3FC197308-197409

sub90461-08070

32928CLAMP, FLEXIBLE HOSE, NO.1

main32928-20031iRT102,104,112,118..3FC197308-197310

main32928-20050iRT102,104,112,114,118..3FC197310-197905

32928ACLAMP(FOR FLEXIBLE HOSE CLAMP)

main90461-08049iRT102,104,112,114,118..3FC197310-197905

main90461-08076iRT102,104,112,118..3FC197308-197310

sub90461-08070

32929CLAMP, FLEXIBLE HOSE, NO.2

main32929-20030iRT102,104,112,114,118..3FC197308-197905

32929ACLAMP(FOR FLEXIBLE HOSE CLAMP)

main90461-06033iRT104,114,118..3FC197509-197905

main90461-12120iRT102,104,112,118..3FC197308-197509

9161140610

main91611-40610

16 parts on this diagram · 1 diagram in section
