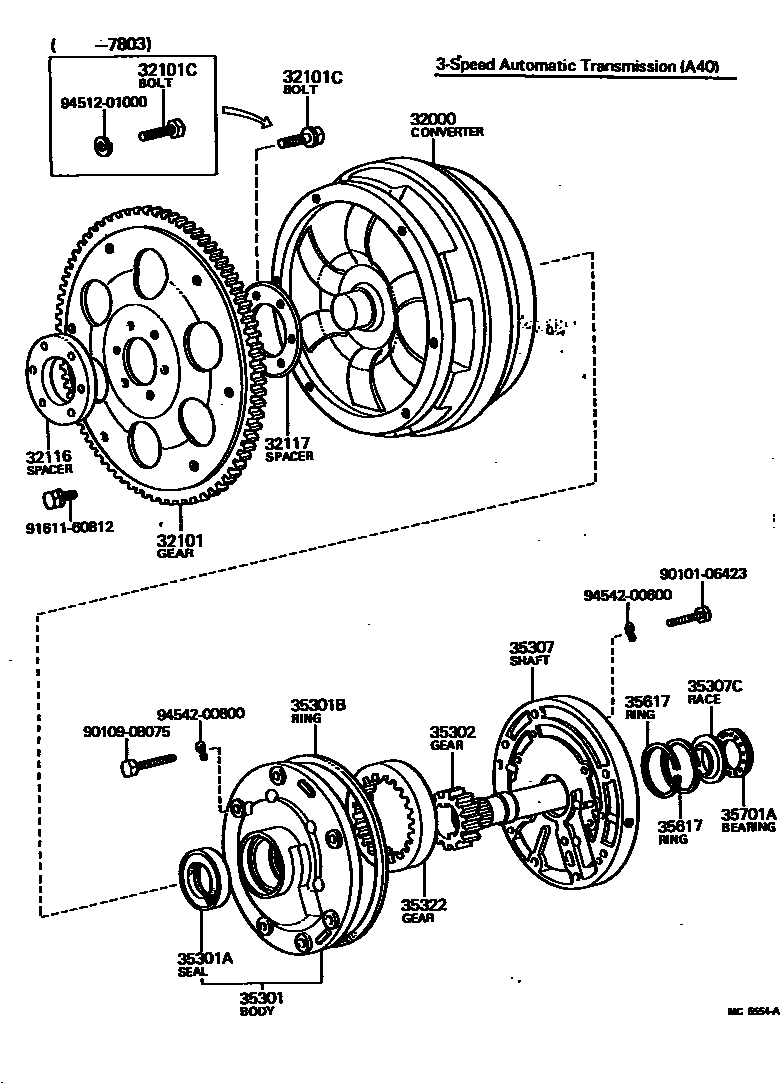

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

32000CONVERTER ASSY, TORQUE

main32000-22010iRT102,104,112,114,118..3FC197308-197701

sub32000-22020

main32000-22020iRT104,114,118..3FC197701-197905

sub32000-22021

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-22020iRT102,104,112,114,118..3FC197308-197905

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90101-10035iRT104,114,118..3FC197702-197803

sub90105-10006

main90101-10435iRT102,104,112,114,118..3FC197308-197702

main90105-10006iRT104,114,118..3FC197803-197905

*10-1.25X23-14.5

32116SPACER, DRIVE PLATE, FRONT

main32116-22010iRT102,104,112,114,118..3FC197308-197706

sub32116-22011

main32116-22011iRT104,114,118..3FC197706-197905

32117SPACER, DRIVE PLATE, REAR

main32117-22010iRT102,104,112,114,118..3FC197308-197706

sub32117-22011

main32117-22011iRT104,114,118..3FC197706-197905

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-22011iRT102,104,112,114,118..3FC197308-197905

sub35301-30030

sub90101-06002

sub90101-08046

sub90301-99010

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38129iRT102,104,112,114,118..3FC197308-197905

sub90311-38020

35301BRING, O (FOR FRONT OIL PUMP BODY)

main35147-22010iRT102,104,112,114,118..3FC197308-197905

35302GEAR SUB-ASSY, FRONT OIL PUMP DRIVE

main35321-22010iRT102,104,112,114,118..3FC197308-197905

sub35321-22090

35307SHAFT SUB-ASSY, STATOR

main35307-22011iRT102,104,112,114,118..3FC197308-197905

sub35370-22010

35307CRACE, THRUST BEARING (FOR STATOR SHAFT)

main35789-22010iRT102,104,112,114,118..3FC197308-197905

T=4.3

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-22010iRT102,104,112,114,118..3FC197308-197905

T=15.286-15.235

sub35322-22090

35617RING, CLUTCH DRUM OIL SEAL

main35617-22010iRT102,104,112,114,118..3FC197308-197905

35701ABEARING, THRUST (FOR INPUT SHAFT FRONT)

main90374-23012iRT102,104,112,114,118..3FC197308-197905

9010106423

main90101-06423

9010908075

main90109-08075

9161160812

main91611-60812

9451201000

main94512-01000

9454200600

main94542-00600

9454200800

main94542-00800

20 parts on this diagram · 1 diagram in section
