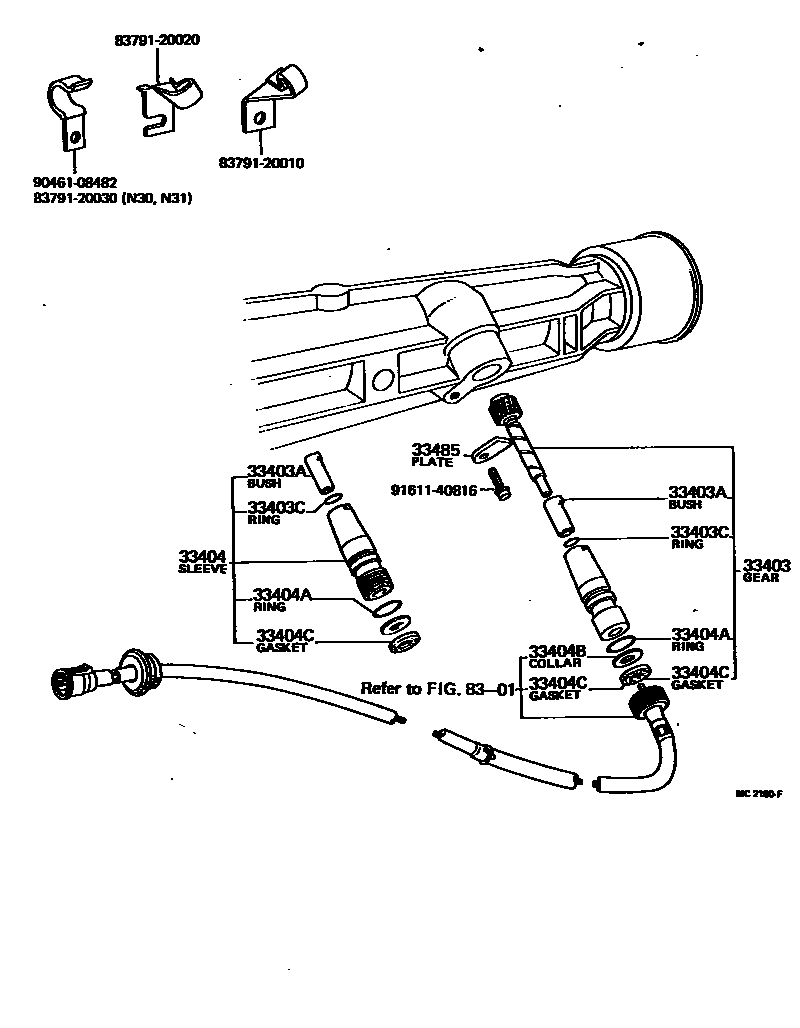

SPEEDOMETER DRIVEN GEAR (MTM)

0001 1 0002 1

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-29065iRT104,114..EUR,GEN197701-197905

N=21,DIFF.GEAR R=4.100

main33403-29065iRT112..4F;RT102..RHD..4F;RT102..LHD..MTM197308-197701

N=20

main33403-39016iRT116197308-197808

N=18

main33403-39036iRT104,114..GEN197404-197905

N=17,N=17

main33403-69026iRT118..EUG;RT118..4F..ARL;RT104,114..4F..(ARL,EUR,SA)197308-197905

N=19

main33482-29025iRT116..4F197701-197808

N=22

main33482-39015iRT100..STD..PHL197308-197701

N=21

main33482-39015iRT100197701-197905

N=21,DIFF.GEAR R=4.100

33403ABUSH (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT SLEEVE)

main90386-09078iRT10#,11#..MTM197308-197809

33403CRING, O (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT)

main90301-09010iRT10#,11#..MTM197308-197809

sub90301-09017

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-30040iRT10#,118..4F197809-197905

main33404-39016iRT10#,11#..MTM197308-197809

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iRT10#,11#..MTM197308-197905

33404BCOLLAR, SPEEDOMETER FLEXIBLE TUBE SHAFT GASKET (MTM)

main90201-07069iRT10#,11#..MTM197308-197905

33404CGASKET, SPEEDOMETER FLEXIBLE TUBE SHAFT (MTM)

main90303-06017iRT10#,11#..MTM197308-197905

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-30010iRT10#,11#..MTM197308-197809

main33485-30020iRT10#,118..4F197809-197905

8301

8379120010

main83791-20010

8379120020

main83791-20020

8379120030

main83791-20030

9046108482

main90461-08482

9161140816

main91611-40816

14 parts on this diagram · 2 diagrams in section
