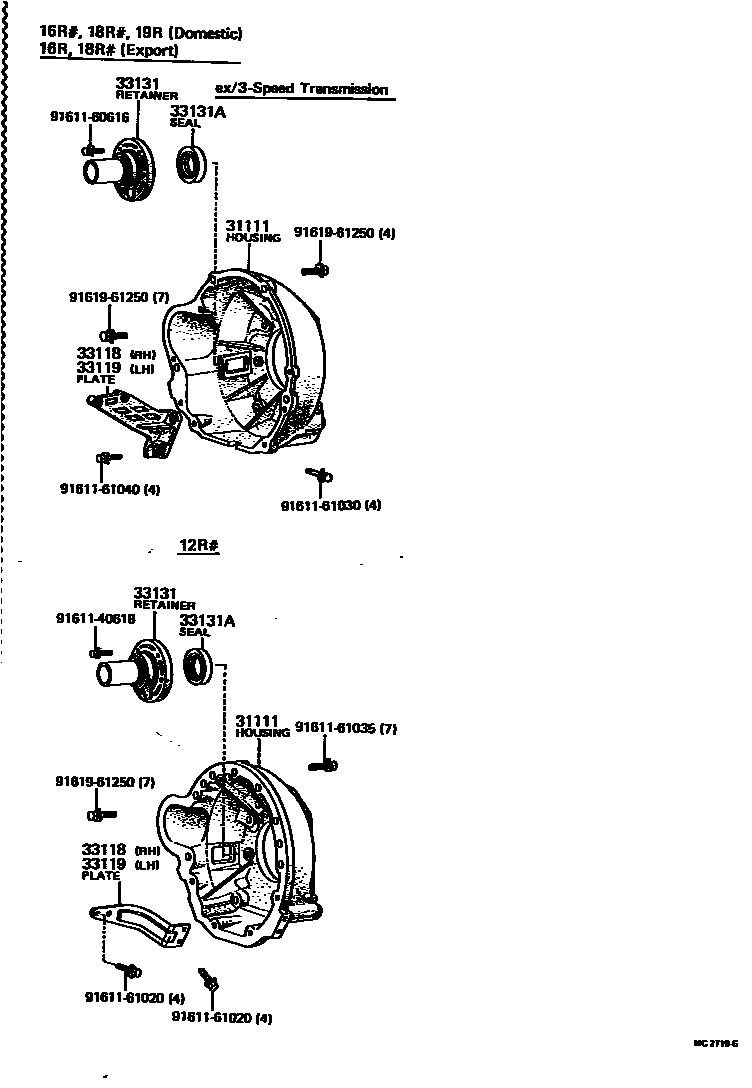

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0003 1 0005 1

31111HOUSING, CLUTCH

main31111-20050iRT102,104,112,114,117,118..MTM197308-197905

sub31111-20090

main31111-20070iRT100,110,116197308-197808

33118PLATE, STIFFENER, RH(MTM)

main33118-20030iRT100,110,116197308-197808

main33118-20050iRT102,104,112,114,117,118..MTM197308-197408

sub33118-22030

main33118-22030iRT102,104,112,114,117,118..MTM197408-197905

33119PLATE, STIFFENER, LH(MTM)

main33119-20030iRT100,110,116197308-197808

main33119-20050iRT102,104,112,114,117,118..MTM197308-197408

sub33119-22020

sub91611-61030

main33119-22020iRT102,104,112,114,117,118..MTM197408-197807

sub33119-22021

main33119-22021iRT102,104,114,118..MTM197807-197905

sub33119-22022

33131RETAINER, BEARING, FRONT(MTM)

main33131-20030iRT100,116..3H197308-197509

main33131-30040iRT100,116..3H197509-197808

main33131-31010iRT10#,11#..4F,5F197308-197905

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30115iRT10#,11#..4F,5F197308-197905

main90311-32106iRT100,116..3H197308-197808

9161140618

main91611-40618

9161160616

main91611-60616

9161161020

main91611-61020

9161161030

main91611-61030

9161161035

main91611-61035

9161161040

main91611-61040

9161961250

main91619-61250

12 parts on this diagram · 3 diagrams in section
