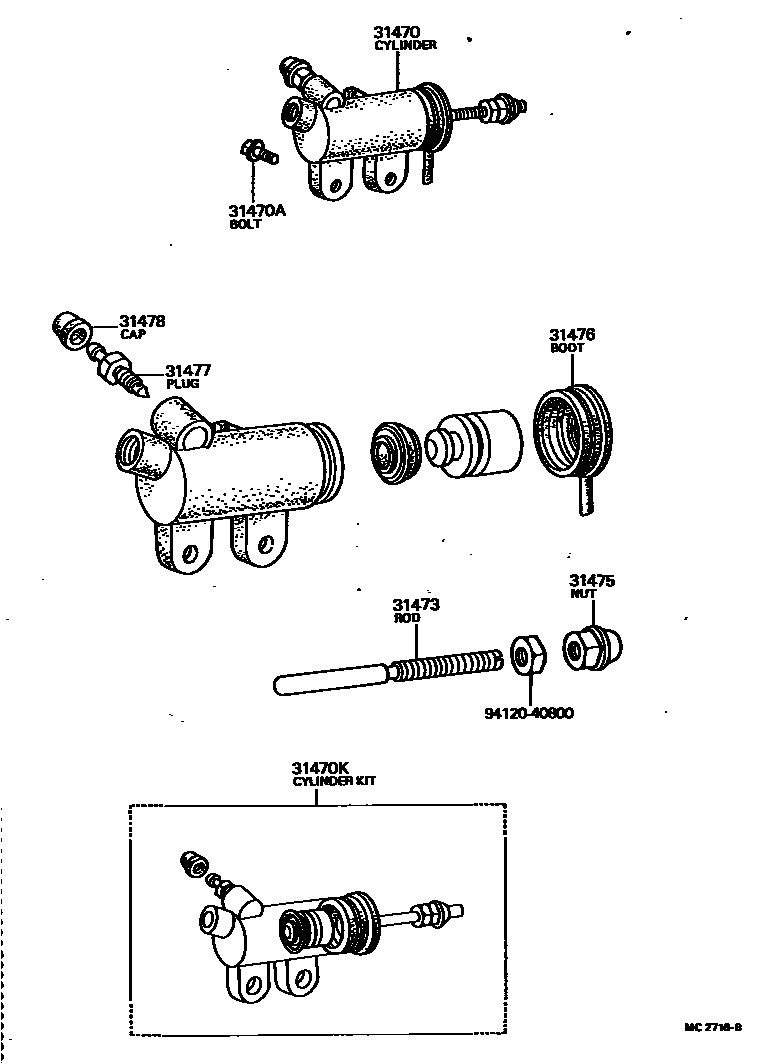

CLUTCH RELEASE CYLINDER

0001 1 0003 1

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-20090iRT102,104,112,114,117,118..MTM197308-197408

sub31470-20091

main31470-20091iRT102,104,112,114,117,118..MTM197408-197701

sub31470-26020

main31470-20100iRT100,110,116197308-197408

sub31470-20101

main31470-20101iRT100,110,116197408-197708

main31470-20130iRT102,104,114,118..MTM197701-197905

sub31470-20131

main31470-20140iRT100,116197708-197808

sub31470-20141

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-40825iRT10#,11#..MTM197308-197905

*8-1.25PX25-25

sub91611-B0825

31470KCYLINDER KIT, CLUTCH RELEASE

main04313-30052iRT10#,11#..MTM197308-197408

sub04313-30054

main04313-30054iRT10#,11#..MTM197408-197708

main04313-30100iRT102,104,114,118..MTM197701-197905

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-30021iRT10#,11#..MTM197308-197708

main31473-30050iRT102,104,114,118..MTM197701-197905

31475NUT, CLUTCH RELEASE CYLINDER PUSH ROD

main31475-30010iRT10#,11#..MTM197308-197404

main31475-30011iRT10#,11#..MTM197404-197708

sub31475-30020

main31475-30020iRT100,110,116197509-197701

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-20040iRT10#,11#..MTM197408-197708

main31476-30021iRT10#,11#..MTM197308-197408

sub31476-20040

main31476-30040iRT102,104,114,118..MTM197701-197905

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iRT10#,11#..MTM197308-197905

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iRT10#,11#..MTM197308-197905

9412040800

main94120-40800

9 parts on this diagram · 2 diagrams in section
