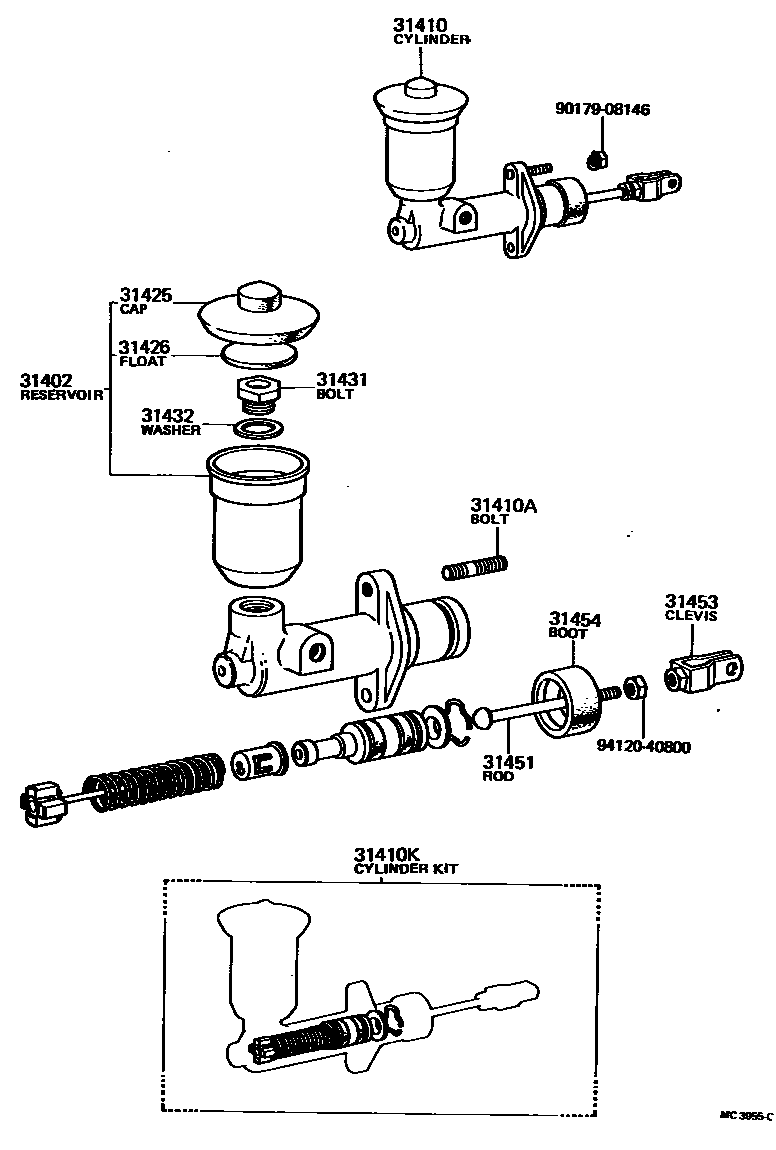

CLUTCH MASTER CYLINDER

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main47202-12050iRT10#,11#..MTM197308-197905

31410CYLINDER ASSY, CLUTCH MASTER

main31410-14010iRT10#,112,114,116,117,118..RHD..MTM197402-197905

sub31410-14260

main31410-20090iRT10#,11#..RHD..MTM197308-197402

sub31410-20100

main31410-20100iRT10#,11#..LHD..MTM197308-197905

sub31410-20101

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main90116-08097iRT10#,112,114,116,117,118..RHD..MTM197402-197905

main90116-08205iRT10#,11#..RHD..MTM197308-197402

main90116-08302iRT10#,11#..LHD..MTM197308-197905

31410KCYLINDER KIT, CLUTCH MASTER

main04311-14010iRT10#,11#..MTM197701-197905

sub04311-14011

main04311-20050iRT10#,11#..MTM197308-197701

sub04311-14011

31425CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-12030iRT10#,11#..MTM197308-197905

sub47230-20040

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iRT10#,11#..MTM197308-197905

31431BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main47231-30010iRT10#,11#..MTM197308-197905

31432WASHER, CLUTCH RESERVOIR SET BOLT

main47232-30010iRT10#,11#..MTM197308-197905

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-14010iRT10#,11#..MTM197308-197905

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main47264-10011iRT10#,11#..MTM197308-197905

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iRT10#,11#..MTM197308-197905

9017908146

main90179-08146

9412040800

main94120-40800

13 parts on this diagram · 1 diagram in section
