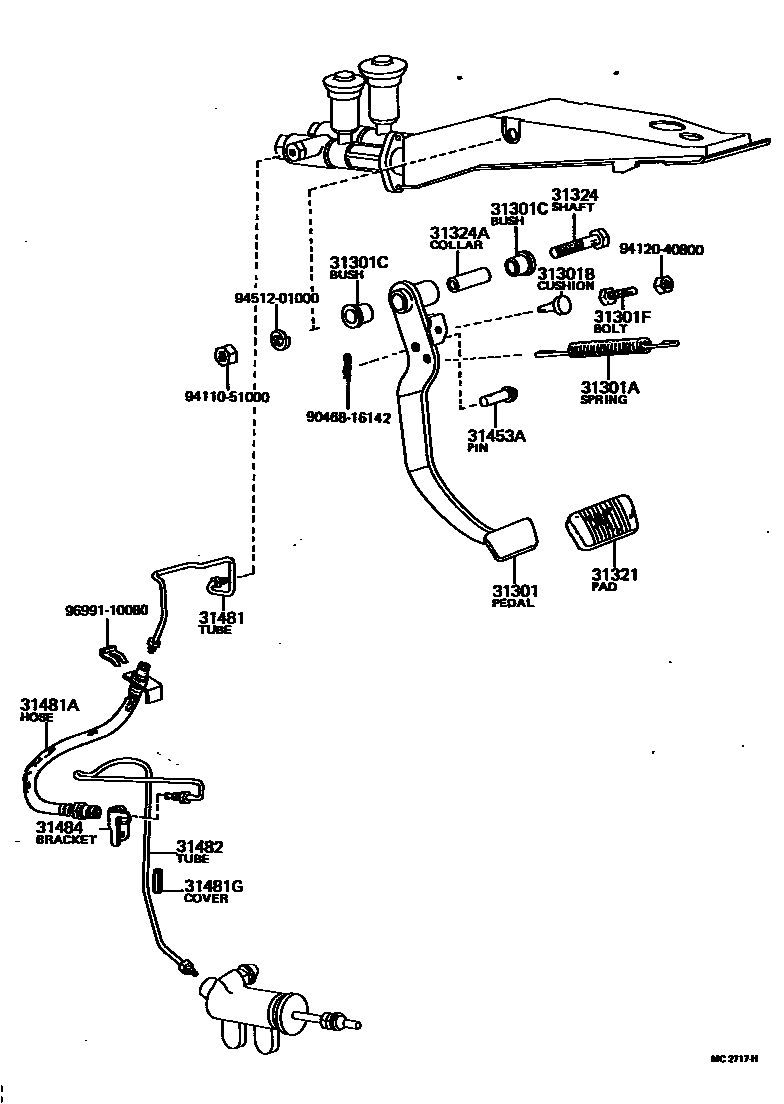

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-20100iRT10#,112,114,116,117,118..RHD..MTM197308-197905

main31301-20110iRT10#,11#..LHD..MTM197308-197905

31301ASPRING(FOR CLUTCH PEDAL)

main90506-12467iRT10#,112,114,116,117,118..RHD..MTM197308-197905

main90506-14002iRT10#,11#..LHD..MTM197409-197905

main90506-16435iRT100,102,110,112,116,117..LHD..MTM197308-197409

sub90506-14002

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06008iRT10#,11#..MTM197308-197905

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13192iRT10#,11#..MTM197308-197905

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90109-08001iRT10#,11#..MTM197308-197905

sub90101-08071

31321PAD, CLUTCH PEDAL

main31321-20020iRT10#,11#..MTM197308-197905

31324SHAFT, CLUTCH PEDAL

main90101-10039iRT10#,11#..MTM197308-197905

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iRT10#,11#..MTM197308-197905

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08040iRT10#,11#..MTM197308-197905

31481TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE

main31481-20070iRT10#,112,114,116,117,118..RHD..MTM197308-197905

main31481-20080iRT10#,11#..LHD..MTM197308-197905

31481AHOSE, CLUTCH, NO.1

main90947-02206iRT10#,11#..MTM197308-197905

31481GCOVER, TUBE

main47341-20010iRT10#,11#..MTM197308-197905

31482TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE

main31482-20210iRT100,110,116197308-197808

main31482-20220iRT102,104,112,114,117,118..MTM197308-197905

31484BRACKET, FLEXIBLE HOSE(FOR CLUTCH)

main31484-20120iRT102,104,112,114,117,118..MTM197308-197905

main31484-20140iRT100,110,116197308-197808

9046816142

main90468-16142

9411051000

main94110-51000

9412040800

main94120-40800

9451201000

main94512-01000

9699110080

main96991-10080

19 parts on this diagram · 2 diagrams in section
