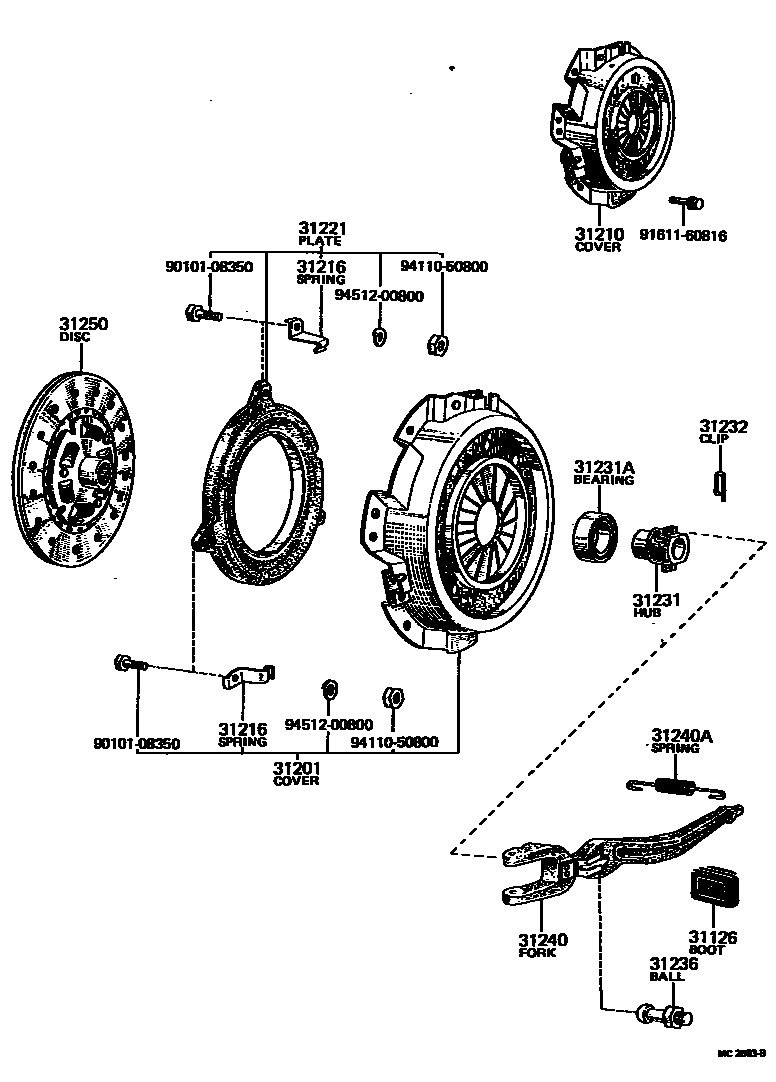

CLUTCH & RELEASE FORK

0001 1 0002 1 0003 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20050iRT10#,11#..MTM197408-197905

main31126-22030iRT10#,11#..MTM197308-197408

sub31126-20050

31201COVER SUB-ASSY, CLUTCH

main31201-19046iRT102197701-197802

sub31201-19047

main31201-19047iRT102197802-197905

sub31201-19048

main31201-29055iRT102,112,117..MTM197308-197312

sub31201-29056

main31201-29056iRT102,112,117..MTM197312-197802

sub31201-29057

main31201-29057iRT100,116197802-197808

sub31201-29058

main31201-29065iRT100,116197308-197312

sub31201-29066

main31201-29066iRT100,110,116197312-197608

sub31201-29067

main31201-39027iRT104,114,118..4F197308-197312

sub31201-39045

main31201-39045iRT104,114,118..MTM197312-197905

sub31201-39046

31210COVER ASSY, CLUTCH

main31210-20080iRT102,112,117..MTM197308-197312

sub31210-20150

main31210-20081iRT100,116197802-197808

sub31210-20082

main31210-20090iRT100,116197308-197312

sub31210-20160

main31210-20150iRT100,102,110,116197312-197802

sub31210-20081

main31210-20160iRT100,110,116197312-197608

sub31210-20091

main31210-23010iRT102197701-197905

sub31210-23011

main31210-30130iRT104,114,118..4F197308-197312

sub31210-30140

main31210-30140iRT104,114,118..MTM197312-197905

sub31210-30141

31216SPRING, CLUTCH RETRACTING

main31216-20020iRT100,102,110,112,116,117..MTM197308-197905

main31216-30010iRT104,114,118..MTM197308-197905

31221PLATE, CLUTCH PRESSURE

main31221-19025iRT100,102,116197608-197905

main31221-29015iRT100..GEN;RT102,110,116;RT100..DLX..PHL197308-197701

main31221-39025iRT104,114,118..MTM197308-197905

31231HUB, CLUTCH RELEASE BEARING

main31231-20030iRT104,114,118..MTM197308-197701

sub31231-20031

main31231-20040iRT102,112,117..MTM197308-197701

sub31231-20041

main31231-20050iRT100,110,116197308-197708

sub31231-20051

main31231-22030iRT104,114,118..MTM197701-197905

sub31231-22031

main31231-30060iRT100,116197708-197808

sub31231-30061

main31231-30070iRT102197701-197905

sub31231-30071

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40001iRT102,104,114,118..MTM197701-197905

sub90363-40008

main90363-40003iRT100,116197601-197708

sub90363-40010

main90363-40078iRT10#,11#..MTM197308-197601

sub90363-40003

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-30010iRT10#,11#..MTM197308-197905

main31232-30020iRT100,116197708-197808

31236BALL, RELEASE FORK

main31236-20020iRT102,104,114,118..MTM197308-197905

sub31236-30060

main31236-30030iRT100,116197308-197808

31240FORK ASSY, CLUTCH RELEASE

main31204-20020iRT102,104,112,114,117,118..MTM197308-197905

sub31204-26010

main31204-20030iRT100,110,116197308-197808

sub31204-20031

31240ASPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)

main90506-16402iRT102,104,112,114,117,118..MTM197308-197701

sub90506-16004

main90506-16466iRT100,110,116197308-197708

sub90506-14041

31250DISC ASSY, CLUTCH

main31250-20021iRT100,110,116197308-197609

sub31250-20022

main31250-20022iRT100,110,116197609-197704

sub31250-20023

main31250-20023iRT100,116197704-197808

sub31250-20024

main31250-20050iRT102,112,117..MTM197308-197610

sub31250-20051

main31250-20051iRT102197610-197905

sub31250-20052

main31250-22042iRT104,114,118..MTM197308-197905

sub31250-22043

9010108350

main90101-08350

9161160816

main91611-60816

9411050800

main94110-50800

9451200800

main94512-00800

16 parts on this diagram · 3 diagrams in section
