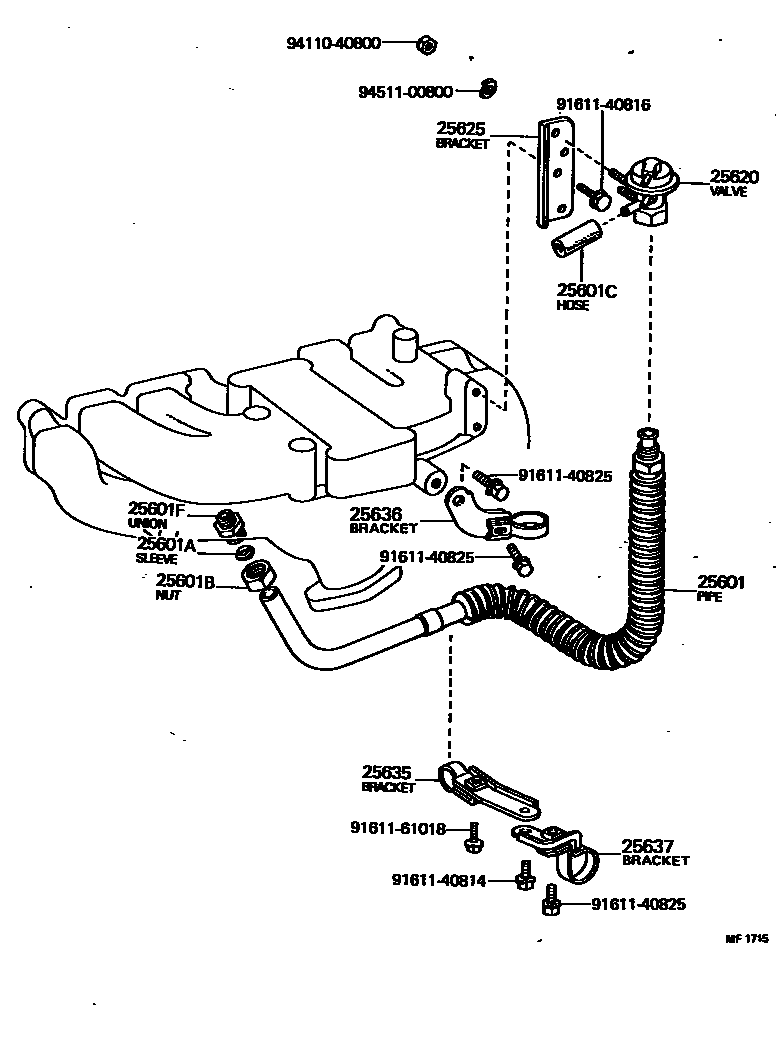

EXHAUST GAS RECIRCULATION SYSTEM

25601PIPE SUB-ASSY, EGR, NO.1

main25601-34040i18RC..RT104,118197704-197905

sub25601-34041

25601ASLEEVE, BALL, EGR PIPE, NO.1

main90410-18038i18RC..RT104,118197704-197905

25601BNUT, UNION, EGR PIPE, NO.1

main90402-26074i18RC..RT104,118197704-197905

sub90402-26002

25601CHOSE(FOR EGR PIPE, NO.1)

main90445-19956i18RC..RT104,118197704-197803

main90445-20016i18RC..RT104,118197805-197905

main90445-23004i18RC..RT104,118197803-197805

25601FUNION(FOR EGR PIPE, NO.1)

main90404-26284i18RC..RT104,118197704-197905

25620VALVE ASSY, EGR

main25620-34130i18RC..RT104,118..MTM197704-197808

main25620-34140i18RC..RT104,118..MTM197706-197905

main25620-34150i18RC..RT104..3FC197704-197905

25625BRACKET, EGR VALVE

main25625-34010i18RC..RT104,118197704-197905

25635BRACKET, EGR PIPE, NO.1

main25635-34021i18RC..RT104,118197704-197905

25636BRACKET, EGR PIPE, NO.2

main25636-34020i18RC..RT104,118197704-197905

25637BRACKET, EGR PIPE, NO.3

main25637-34021i18RC..RT104,118197704-197905

9161140814

main91611-40814

9161140816

main91611-40816

9161140825

main91611-40825

9161161018

main91611-61018

9411040800

main94110-40800

9451100800

main94511-00800

16 parts on this diagram · 1 diagram in section
