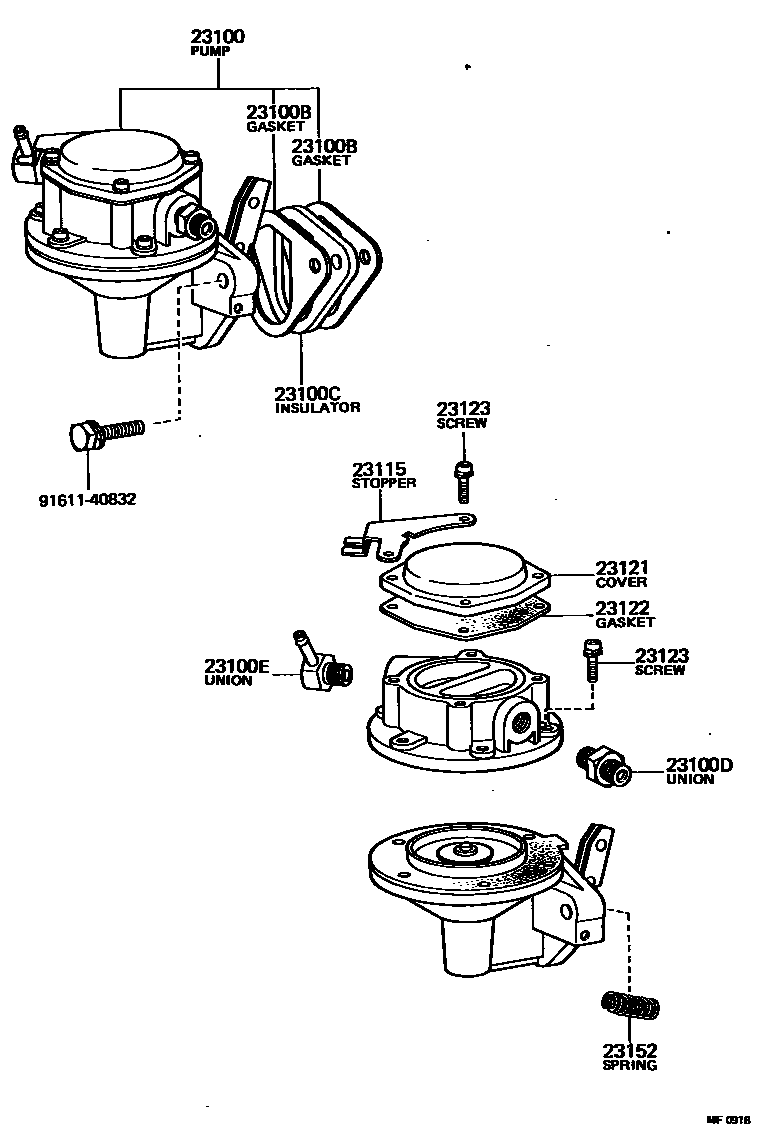

FUEL PUMP & PIPE

0001 1 0002 1

23100PUMP ASSY, FUEL

main23100-39095i12R#..RT100,110,116197308-197808

sub23100-39097

main23100-39115i16R,18R..RT102,104,112,114,117,118197308-197311

sub23100-39116

main23100-39116i16R,18R..RT102,104,112,114,117,118197311-197509

sub23100-39117

main23100-39117i16R,18R#..RT102,104,114,118197509-197905

sub23100-39118

23100BGASKET, FUEL PUMP

main90923-05005i12R#,16R,18R#..RT10#,11#197308-197905

sub90923-05019

23100CINSULATOR, FUEL PUMP

main90923-06001i12R,16R,18R..RT10#,11#197308-197905

sub90923-06009

23100DUNION, NIPPLE(FOR FUEL OUTLET)

main23119-36020i16R,18R#..RT102,104,114,118197311-197905

AISAN

main90404-13105i12R#..RT100,110,116197308-197808

23100EUNION, NIPPLE(FOR FUEL INLET)

main23116-31040i12R#..RT100,110,116197308-197808

main23119-45020i16R,18R#..RT102,104,114,118197311-197905

AISAN

main90404-51244i16R,18R..RT102,104,112,114,117,118197308-197511

23115STOPPER, UNION NIPPLE

main23115-31040i12R#..RT100,110,116197308-197808

23121COVER, FUEL PUMP

main23121-34020i12R#..RT100,110,116197308-197808

main23121-34050i16R,18R..RT102,104,112,114,117,118197311-197905

AISAN

main23121-41030i16R,18R#..RT102,104,114,118197308-197511

23122GASKET, FUEL PUMP COVER

main23122-34020i12R#..RT100,110,116197308-197808

main23122-34050i16R,18R..RT102,104,112,114,117,118197311-197905

AISAN

main23122-41030i16R,18R..RT102,104,112,114,117,118197308-197511

23123SCREW, COVER SET, NO.1

main23123-33011i12R#..RT100,110,116197308-197808

FOR COVER SET

main23123-60022i16R,18R..RT102,104,112,114,117,118197308-197311

main93219-15014i16R,18R..RT102,104,112,114,117,118197311-197905

AISAN

main93319-15014i16R,18R..RT102,104,112,114,117,118197311-197511

main93319-15014i12R#..RT100,110,116197308-197808

FOR BODY SET

23152SPRING, ROCKER ARM

main23152-30020i12R#..RT100,110,116197308-197808

main23152-34040i16R,18R..RT102,104,112,114,117,118197308-197511

main23152-42012i16R,18R..RT102,104,112,114,117,118197311-197905

AISAN

9161140832

main91611-40832

11 parts on this diagram · 2 diagrams in section
