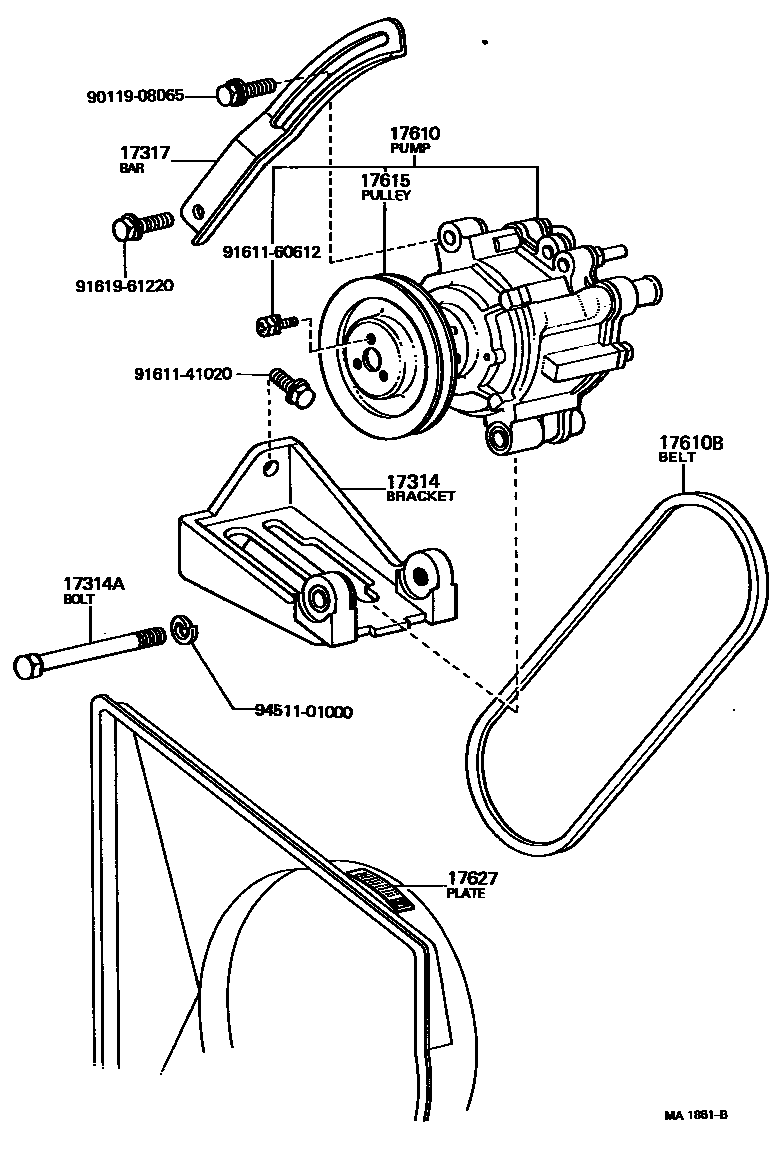

AIR PUMP

17314BRACKET, AIR PUMP

main17314-34020i18RC..RT104,118197704-197905

17314ABOLT, HEXAGON(FOR AIR PUMP BRACKET SETTING)

main90101-10080i18RC..RT104,118197704-197905

17317BAR, AIR PUMP ADJUSTING, NO.1

main17317-34020i18RC..RT104,118197704-197905

17610PUMP ASSY, AIR

main17610-34020i18RC..RT104,118197704-197905

sub17610-34050

17610BBELT, V(FOR AIR PUMP)

main99521-10780i18RC..RT104,118197704-197905

sub99321-50780

17615PULLEY(FOR AIR PUMP)

main17615-34010i18RC..RT104,118197704-197905

17627PLATE, AIR PUMP CAUTION, NO.1

main90917-07066i18RC..RT104,118197704-197905

9011908065

main90119-08065

9161141020

main91611-41020

9161160612

main91611-60612

9161961220

main91619-61220

9451101000

main94511-01000

12 parts on this diagram · 1 diagram in section
