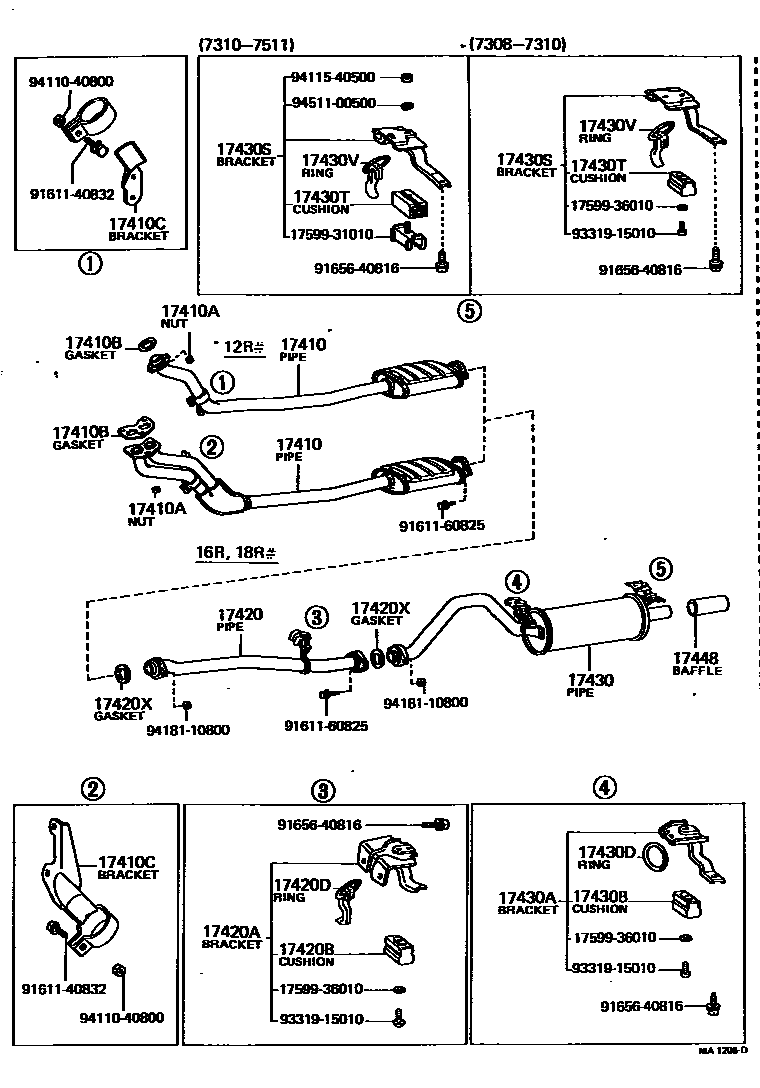

EXHAUST PIPE

0001 1 0002 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-31160i12R..RT100,116..LHD..3H197308-197808

main17410-31170i12R..RT100,116..RHD197308-197808

main17410-34140i18R#..RT104,114,118197509-197905

main17410-36020i16R,18R..RT102,104,112,114,117,118197308-197905

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10118i12R,16R,18R..RT10#,11#197308-197905

17410BGASKET, EXHAUST PIPE

main17451-41020i16R,18R..RT102,104,112,114,117,118197308-197905

sub17451-28010

main90917-06004i12R#..RT100,110,116197308-197808

sub90917-06039

17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)

main17571-31060i12R#..RT100,110,116197308-197808

main17571-34070i18R#..RT104,114,118..ARL,EUR,GEN197509-197905

main17571-36020i16R,18R..RT102,104,112,114,117,118197308-197905

17420PIPE ASSY, EXHAUST, CENTER

main17420-31050i12R,16R,18R..RT10#,11#197308-197905

17420ABRACKET, EXHAUST PIPE CENTER, FRONT

main17506-31020i12R,16R,18R..RT10#,11#197308-197905

17420BCUSHION, EXHAUST PIPE CENTER, FRONT

main17591-36010i12R,16R,18R..RT10#,11#197308-197905

sub17591-36011

sub90159-50207

17420DBOLT OR RING, EXHAUST PIPE CENTER, FRONT

main90301-34172i12R,16R,18R..RT10#,11#197308-197709

sub90301-34207

main90301-34207i12R#,16R,18R#..RT10#,11#197709-197905

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06001i12R,16R,18R..RT10#,11#197308-197905

REAR

sub90917-06038

main90917-06004i12R,16R,18R..RT10#,11#197308-197905

FRONT

sub90917-06039

17430PIPE ASSY, EXHAUST, TAIL

main17430-20010i12R..RT100,110197308-197509

sub17430-31050

main17430-31050i16R,18R..RT102,104,112,114197308-197905

sub17430-34110

main17430-31060i18R..RT118..ARL,GEN197308-197905

main17430-34080i18R..RT118..ARL197704-197905

ALMINIZED,18RC

main17430-34080i16R..RT117197308-197808

ALMINIZED

main17430-36030i16R..RT102197308-197808

ALMINIZED

sub17430-34110

main17430-36030i18R..RT118..ARL197704-197905

ALMINIZED,18RC

sub17430-34110

17430ABRACKET, EXHAUST TAILPIPE(FOR FRONT)

main17507-31020i12R,16R,18R..RT10#,110,112,114197308-197905

main17507-36020i12R,16R,18R..RT116,117,118197308-197905

17430BCUSHION, EXHAUST TAILPIPE(FOR FRONT)

main17591-36010i12R#,16R,18R#..RT10#,110,114197308-197905

sub17591-36011

sub90159-50207

main17591-36020i12R#,18R#..RT116,118197308-197905

17430DBOLT OR RING, EXHAUST TAILPIPE (FOR FRONT)

main90301-34172i12R#,16R,18R#..RT10#,11#197308-197709

sub90301-34207

main90301-34207i12R#,16R,18R#..RT10#,11#197709-197905

17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)

main17508-31020i12R,16R,18R..RT10#,110,112,114197308-197905

main17508-36021i12R,16R,18R..RT116,117,118197308-197905

17430TCUSHION, EXHAUST TAILPIPE (FOR REAR)

main17591-31010i12R,16R,18R..RT10#,110,112,114197310-197905

main17591-36010i12R,16R,18R..RT10#,112,114197308-197310

sub17591-36011

sub90159-50207

main17591-36020i12R,16R,18R..RT116,117,118197308-197905

17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)

main90301-34172i12R,16R,18R..RT10#,11#197308-197709

sub90301-34207

main90301-34207i12R#,16R,18R#..RT10#,11#197709-197905

17448BAFFLE, TAILPIPE

main17448-31020i12R..RT100..DLX197308-197405

main17448-31050i16R,18R..RT102,104,112,114..DLX197308-197405

1759931010HOLDER, EXHAUST PIPE SUPPORT STOPPER

main17599-31010

1759936010HOLDER, EXHAUST PIPE SUPPORT STOPPER

main17599-36010

9161140832

main91611-40832

9161160825

main91611-60825

9165640816

main91656-40816

9331915010

main93319-15010

9411040800

main94110-40800

9411540500

main94115-40500

9418110800

main94181-10800

9451100500

main94511-00500

27 parts on this diagram · 2 diagrams in section
