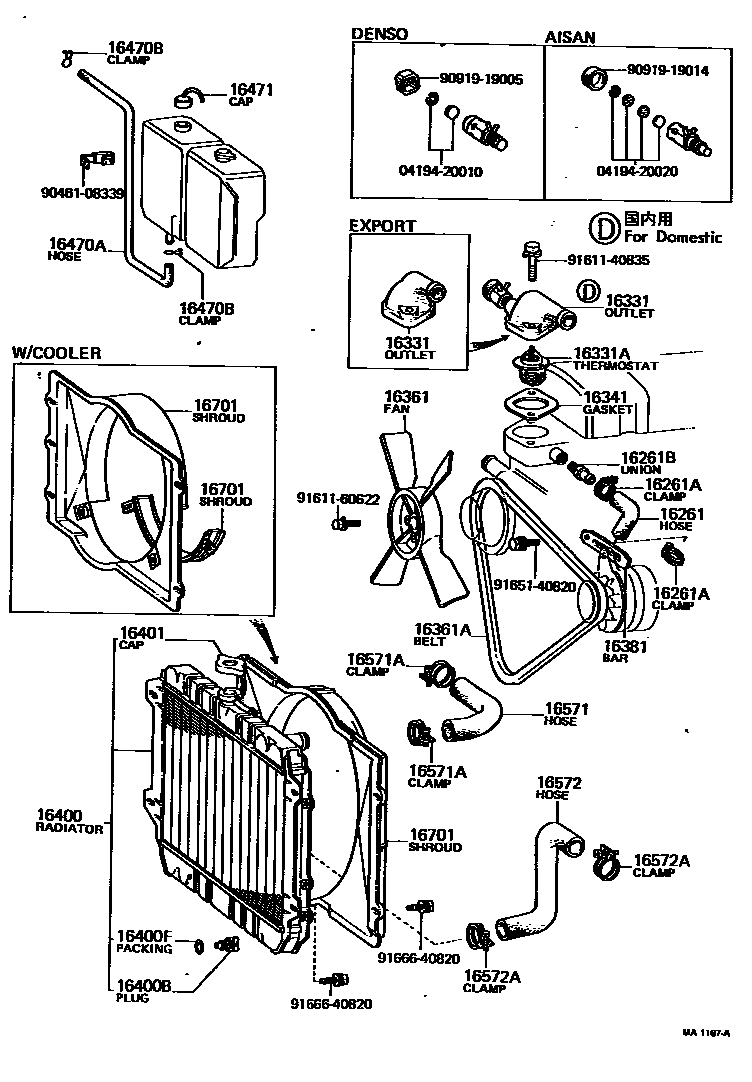

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1

16261HOSE, WATER BY-PASS

main16261-31010i12R..RT100,110,116197308-197511

main90910-05081i16R,18R..RT102,104,112,114,117,118197308-197509

main90910-05106i16R,18R#..RT102,104,114,118197509-197905

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90460-23022i12R..RT100,116197308-197411

main96112-10160i16R,18R#..RT102,104,114,118197308-197905

main96112-10240i12R..RT100,110,116197411-197511

16261BUNION(FOR WATER BY-PASS HOSE)

main90404-17005i16R,18R#..RT102,104,114,118197511-197905

main90404-17291i16R,18R..RT102,104,112,114,117,118197308-197509

main90404-52072i12R..RT100,110,116197308-197511

main90404-54002i16R,18R#..RT102,104,114,118197509-197511

16331OUTLET, WATER

main16331-31010i12R..RT100,110,116197308-197511

sub16331-26030

main16331-31031i12R..RT100,116197511-197808

main16331-36010i16R,18R..RT102,104,112,114,117,118197308-197610

main16331-36012i16R,18R#..RT102,104,114,118197610-197905

main16331-36020i16R..RT102,112,117..EUR,GEN197308-197412

CAST IRON BODY

16331ATHERMOSTAT

main90916-03033i16R,18R..RT102,104,112,114,117,118197308-197606

WAX 82-95 FUJI-THOMSON

sub90916-03034

main90916-03034i18R..RT104,114,118197801-197905

ONLY FOR PERU WAX 82-95

main90916-03034i12R..RT100,116197308-197808

WAX 82-95 FUJI-THOMSON

main90916-03036i16R,18R#..RT102,104,114,118197606-197905

WAX 88-100 FUJI-THOMSON

sub90916-03040

main90916-03036i16R,18R#..RT102,104,114,118197502-197606

WAX 88-100 FUJI-THOMSON ARCTIC

sub90916-03040

main90916-03037i12R,16R,18R..RT10#,11#197308-197808

WAX 82-95 KUZEH

sub90916-03083

main90916-03037i18R..RT104,114,118197801-197905

ONLY FOR PERU WAX82-95 KUZEH

sub90916-03083

main90916-03040i16R,18R#..RT102,104,114,118197606-197905

WAX 88-100 KUZEH

sub90916-03078

16341GASKET, WATER OUTLET

main16341-38010i16R,18R..RT10#,118197809-197905

sub16341-38012

main16341-49010i12R#,16R,18R#..RT10#,11#197308-197809

sub16341-38010

16361FAN

main16361-31021i12R#..RT100,110,116197308-197808

4 BLADES

main16361-31050i12R..RT100,116197308-197808

5 BLADES,W/COOLER

main16361-33020i16R,18R..RT102,104,112,114,117,118197308-197701

6 BLADES OD=360

main16361-34030i18RC..RT104,118197509-197905

7 BLADES OD=380

main16361-41022i16R..RT102,112,117..EUR,GEN197308-197412

6 BLADES OD=380

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02048i18RC..RT104,118197704-197905

sub99341-50840

main90916-02055i12R#..RT100,110,116197511-197612

L=900

sub90916-02061

main90916-02061i12R#..RT100,110,116197612-197804

L=900

sub99332-00900

main99321-00840i16R,18R..RT10#,118197809-197905

FOR 12V 45A&55A ALTERNATOR

main99332-00900i12R#..RT100,116197804-197808

L=900

main99521-10839i16R,18R..RT102,104,114,118197609-197809

FOR 12V 45A&55A ALTERNATOR

sub99321-00840

main99521-10843i16R,18R#..RT102,104,114,118197308-197609

FOR 12V 45A ALTERNATOR

sub99321-00840

main99521-10860i16R,18R#..RT102,104,114,118197502-197704

FOR 12V 55A ALTERNATOR

sub99321-00860

main99521-10897i12R..RT100,110,116197308-197511

L=897

sub99321-00895

16381BAR, FAN BELT ADJUSTING

main16381-30020i12RM..RT100,110,116197308-197808

main16381-30021i12R..RT100,116197511-197808

main16381-33010i16R,18R..RT102,104,112,114,117,118197308-197509

FOR 12V 45A ALTERNATOR

main16381-34030i16R,18R#..RT102,104,114,118197509-197701

FOR 12V 45A ALTERNATOR

main16381-34030i16R,18R#..RT102,104,114,118197701-197905

FOR 12V 45A&55A ALTERNATOR

main16381-36010i16R,18R..RT102,104,112,114,117,118197502-197509

FOR 12V 55A ALTERNATOR

main16381-36011i18R#..RT104,118197509-197701

FOR 12V 55A ALTERNATOR

16400RADIATOR ASSY

main16400-31170i12RM..RT100,110,116197308-197808

main16400-31171i12R..RT100,116197511-197808

main16400-36010i16R,18R#..RT102,104,114,118..MTM197308-197905

main16400-36020i16R,18R..RT102,104,112,118..3FC197308-197905

16400BPLUG, RADIATOR DRAIN COCK

main90910-09054i12R,16R,18R..RT10#,11#197308-197905

16400FPACKING(FOR RADIATOR DRAIN COCK)

main96710-01007i12R,16R,18R..RT10#,11#197308-197905

sub96711-19007

16401CAP SUB-ASSY, RADIATOR

main16401-36010i12R#,16R,18R#..RT10#,11#197308-197809

sub16401-36011

main16401-36011i16R,18R..RT10#,118197809-197905

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12521i12R#,16R,18R#..RT10#,11#197308-197905

main90445-12781i18R..RT104,118..EUR197409-197509

L=1000(*H,L=750),W/HEAD LAMP CLEANER

sub90099-33534

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i12R,16R,18R..RT10#,11#197308-197905

16471CAP SUB-ASSY, RESERVE TANK

main85332-20030i12R#,16R,18R#..RT10#,11#197308-197905

16571HOSE, RADIATOR, INLET

main16571-36010i16R,18R..RT102,104,112,114,117,118197308-197905

main16572-31040i12R..RT100,110,116197308-197808

main16572-31060i12R..RT100,116197511-197808

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90460-43005i12R..RT100,116197308-197411

ID=43

sub96111-10430

main90460-47036i16R,18R..RT102,104,112,114,117,118197308-197406

ID=47

main90467-37001i16R,18R#..RT102,104,114,118197702-197905

WATER OUTLET SIDE

sub90467-37003

main96111-10430i12R#..RT100,110,116197411-197808

ID=43

main96111-10430i16R,18R#..RT102,104,114,118197702-197905

RADIATOR SIDE

main96111-10450i16R,18R..RT102,104,112,114,117,118197406-197702

ID=45

16572HOSE, RADIATOR, OUTLET

main16571-31050i12R..RT100,110,116197308-197511

main16571-31051i12R#..RT100,110,116197511-197703

main16571-31052i12R#..RT100,116197703-197808

sub16571-31023

sub16571-31051

main16572-36020i16R,18R..RT102,104,112,114,117,118197308-197904

sub16572-36021

sub96111-10490

main16572-36021i16R,18R..RT10#,118197904-197905

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90460-47036i12R..RT100,116197308-197411

ID=47

main90460-49062i16R,18R..RT102,104,112,114,117,118197308-197406

ID=49

sub96111-10490

main96111-10450i16R,18R..RT102,104,112,114,117,118197406-197509

ID=45

main96111-10450i16R,18R#..RT102,104,114,118197509-197904

ID=45 RADIATOR SIDE

main96111-10460i12R#..RT100,110,116197411-197808

ID=46

main96111-10480i16R,18R..RT102,104,112,114,117,118197406-197509

ID=48

main96111-10480i16R,18R#..RT102,104,114,118197509-197904

ID=48 ENGINE SIDE

main96111-10480i16R,18R..RT10#,118197904-197905

ID=48 RADIATOR SIDE

main96111-10490i16R,18R..RT10#,118197904-197905

ID=49 ENGINE SIDE

16701SHROUD SUB-ASSY, FAN

main16711-31060i12R#..RT100,110,116197308-197808

main16711-31070i12R..RT100,116197308-197511

UPP FOR COOLER

main16711-31071i12R..RT100,116197511-197808

UPP FOR COOLER

main16711-36020i16R,18R..RT102,104,112,114,117,118197308-197509

sub16711-36021

main16711-36021i16R,18R#..RT102,104,114,118197509-197905

main16712-31010i12R..RT100,116197308-197808

LWR FOR COOLER

0419420010

main04194-20010

0419420020

main04194-20020

9046108339

main90461-08339

9091919005

main90919-19005

9091919014

main90919-19014

9161140835

main91611-40835

9161160622

main91611-60622

9165140820

main91651-40820

9166640820

main91666-40820

30 parts on this diagram · 4 diagrams in section
