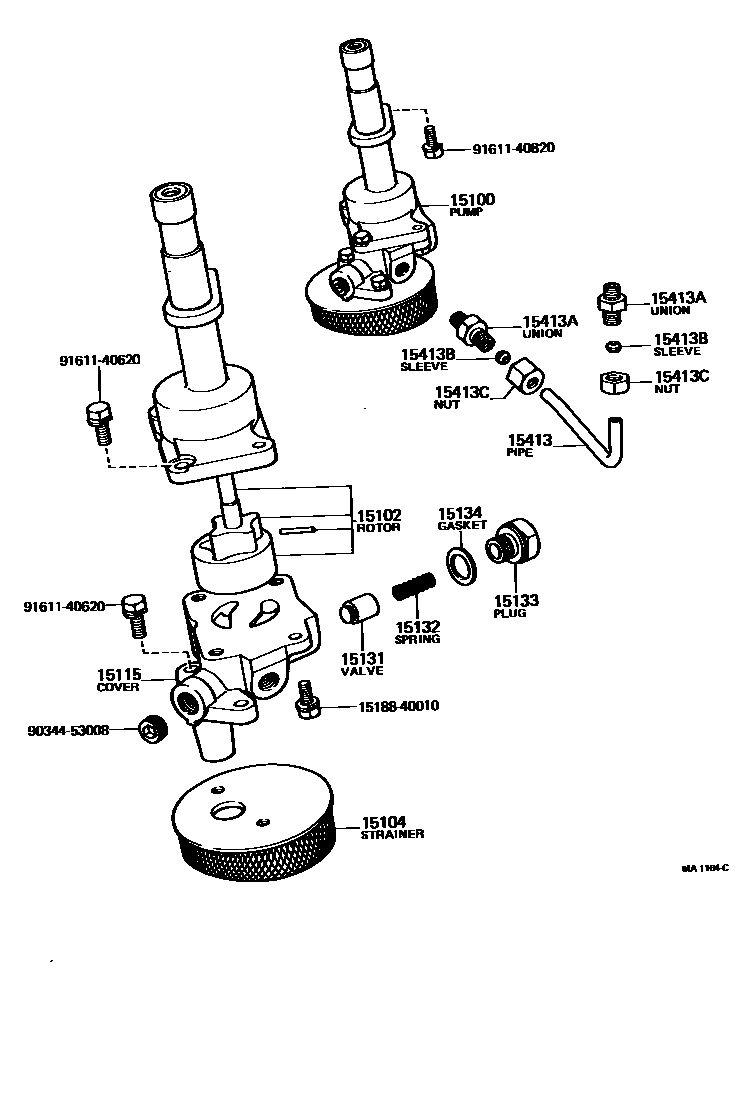

ENGINE OIL PUMP

0001 1 0002 1

15100PUMP ASSY, OIL

main15100-31030i12R#..RT100,110,116197308-197808

main15100-36010i16R,18R..RT102,104,112,114,117,118197308-197905

sub15100-36011

15102ROTOR SET, OIL PUMP

main15101-31011i12R#..RT100,110,116197308-197808

main15102-33011i16R,18R#..RT102,104,114,118197308-197802

sub15102-36010

main15102-36010i16R,18R#..RT102,104,114,118197802-197905

15104STRAINER SUB-ASSY, OIL

main15104-31030i12R#..RT100,110,116197308-197808

main15104-36010i16R,18R#..RT102,104,114,118197308-197905

15115COVER, OIL PUMP

main15012-31031i12R#..RT100,116197705-197808

sub15115-31030

main15115-31030i12R#..RT100,110,116197308-197705

15131VALVE, OIL PUMP RELIEF

main15131-40010i12R#..RT100,110,116197308-197808

main15131-41010i16R,18R#..RT102,104,114,118197308-197808

15132SPRING, OIL PUMP RELIEF VALVE

main15132-40010i12R#,16R,18R#..RT10#,11#197308-197905

15133PLUG, OIL PUMP RELIEF VALVE

main15133-20010i12R,16R,18R..RT10#,11#197308-197905

main15133-41030i12R#..RT100,116197705-197808

sub15133-20010

15134GASKET, OIL PUMP RELIEF VALVE

main15134-20010i16R,18R#..RT102,104,114,118197308-197802

15413PIPE, OIL PUMP OUTLET

main15413-31010i12R#..RT100,110,116197308-197808

15413AUNION(FOR OIL PUMP OUTLET PIPE)

main90404-16008i12R#..RT100,110,116197308-197808

15413BSLEEVE, BALL(FOR OIL PUMP OUTLET PIPE)

main90410-11005i12R#..RT100,110,116197308-197808

15413CNUT, UNION(FOR OIL PUMP OUTLET PIPE)

main90402-16042i12R#..RT100,110,116197308-197808

1518840010GASKET, OIL PUMP

main15188-40010

9034453008

main90344-53008

9161140620

main91611-40620

9161140820

main91611-40820

16 parts on this diagram · 2 diagrams in section
