VENTILATION HOSE

0001 1 0002 1 0003 1

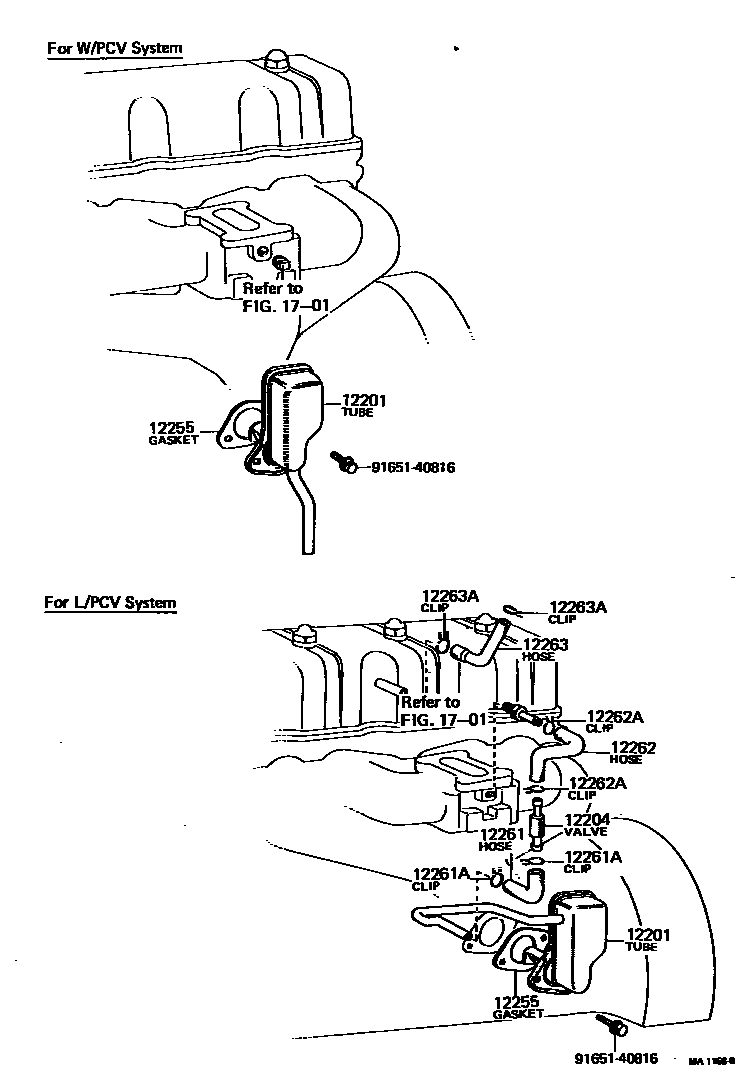

12201TUBE SUB-ASSY, VENTILATION

main12201-31030i12R..RT100,116197308-197511

W/PCV

main12201-31050i12R..RT100,110,116197308-197511

L/PCV

main12201-33011i16R,18R..RT102,104,114..SA197308-197512

L/PCV

12204VALVE SUB-ASSY, VENTILATION

main12204-31020i12R#..RT100,110,116197308-197808

main12204-34010i16R,18R..RT102,104,112,117,118..ARL,EUR,GEN197308-197905

sub12204-28010

sub12204-35010

12255GASKET, VENTILATION

main12255-25010i12R..RT100,110,116197308-197511

main12255-34010i16R,18R..RT102,104,114..SA197308-197512

12261HOSE, VENTILATION

main90910-05023i12R..RT100,116197308-197511

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-20020i12R..RT100,116197308-197511

12262HOSE, VENTILATION, NO.2

main12261-33020i16R,18R..RT102,104,112,117,118..ARL,EUR,GEN197308-197704

main12261-34070i16R,18R#..RT102,104,114,118197704-197905

sub12261-34080

main12262-31020i12R..RT100,116197308-197511

main90445-14013i12R#..RT100,110,116197511-197808

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-13103i12R#..RT100,110,116197511-197808

main90467-16010i12R..RT100,116197308-197905

ID=16

12263HOSE, VENTILATION, NO.3

main12262-34020i18R#..RT104,114,118..ARL,EUR,GEN197509-197905

main12263-31021i12R#..RT100,110,116197308-197808

main90910-05023i16R,18R..RT102,104,112,117,118..ARL,EUR,GEN197308-197509

12263ACLIP(FOR VENTILATION HOSE)

main90467-16010i12R..RT100,116197308-197312

ID=16

main90467-20020i16R,18R#..RT102,104,114,118197308-197905

ID=19

1701

9165140816

main91651-40816

11 parts on this diagram · 3 diagrams in section
