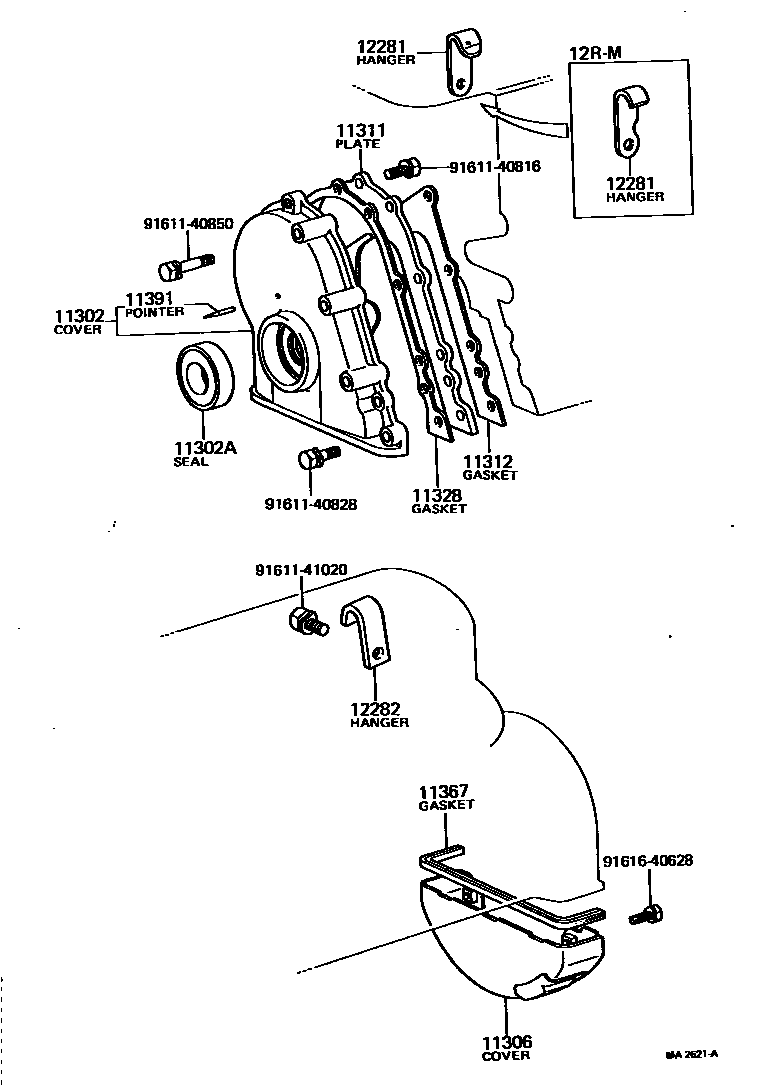

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11321-30903i12R..RT100,110,116197308-197409

main11321-31901i12R..RT100,110,116197409-197511

main11321-31903i12R..RT100,116197511-197808

sub11321-31040

sub11391-31021

sub91611-40825

main11321-33010i16R,18R..RT102,104,112,114,117,118197308-197509

main11321-34010i16R,18R#..RT102,104,114,118197509-197905

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-38002i12R#..RT100,110,116197608-197805

HTC3 38.5 58 11

sub90311-38013

main90311-38013i12R#..RT100197805-197808

HTC3 38.5 58 11

main90311-38024i12R#..RT100,110,116197308-197608

TC3 38.5 58 11

sub90311-38013

main90311-45069i16R,18R#..RT102,104,114,118197308-197905

TC3 45 68 12

sub90311-45002

11306COVER SUB-ASSY, FLYWHEEL HOUSING UNDER

main11306-31021i12R#..RT100,110,116197308-197808

11311PLATE, FRONT END

main11311-31010i12R#..RT100,110,116197308-197808

main11311-33011i16R,18R#..RT102,104,114,118197308-197905

11312GASKET, FRONT END PLATE

main11312-31010i12R#..RT100,110,116197308-197808

main11312-33011i16R,18R..RT102,104,112,114,117,118197308-197508

sub11312-33012

main11312-33012i16R,18R#..RT102,104,112,114,117,118197508-197905

sub11312-33014

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-31010i12R#..RT100,110,116197308-197808

main11328-33013i16R,18R..RT102,104,112,114,117,118197308-197508

sub11328-33014

main11328-33014i16R,18R#..RT102,104,112,114,117,118197508-197905

sub11328-33016

11367GASKET, FLYWHEEL HOUSING UNDER

main11367-31020i12R#..RT100,110,116197308-197808

11391POINTER, TIMING

main11391-31020i12R..RT100,110,116197409-197511

main11391-31021i12R#..RT100,110,116197511-197808

main11391-32010i12R..RT100,110,116197308-197409

main11391-40010i16R,18R#..RT102,104,114,118197308-197905

12281HANGER, ENGINE, NO.1

main12281-31020i12RM..RT100,110,116197308-197808

sub12281-54010

main12281-42010i12R..RT100,116197511-197808

sub12281-31040

main12282-36010i16R,18R..RT102,104,112,114,117,118197308-197905

main88892-22050i16R,18R..RT102,104,112,114,117,118197308-197509

FOR COOLER

main88892-22100i16R,18R#..RT102,104,114,118197509-197905

FOR COOLER

12282HANGER, ENGINE, NO.2

main12282-31020i12R#..RT100,110,116197308-197808

main12282-36010i16R,18R..RT102,104,112,114,117,118197308-197905

9161140816

main91611-40816

9161140828

main91611-40828

9161140850

main91611-40850

9161141020

main91611-41020

9161640628

main91616-40628

15 parts on this diagram · 2 diagrams in section
