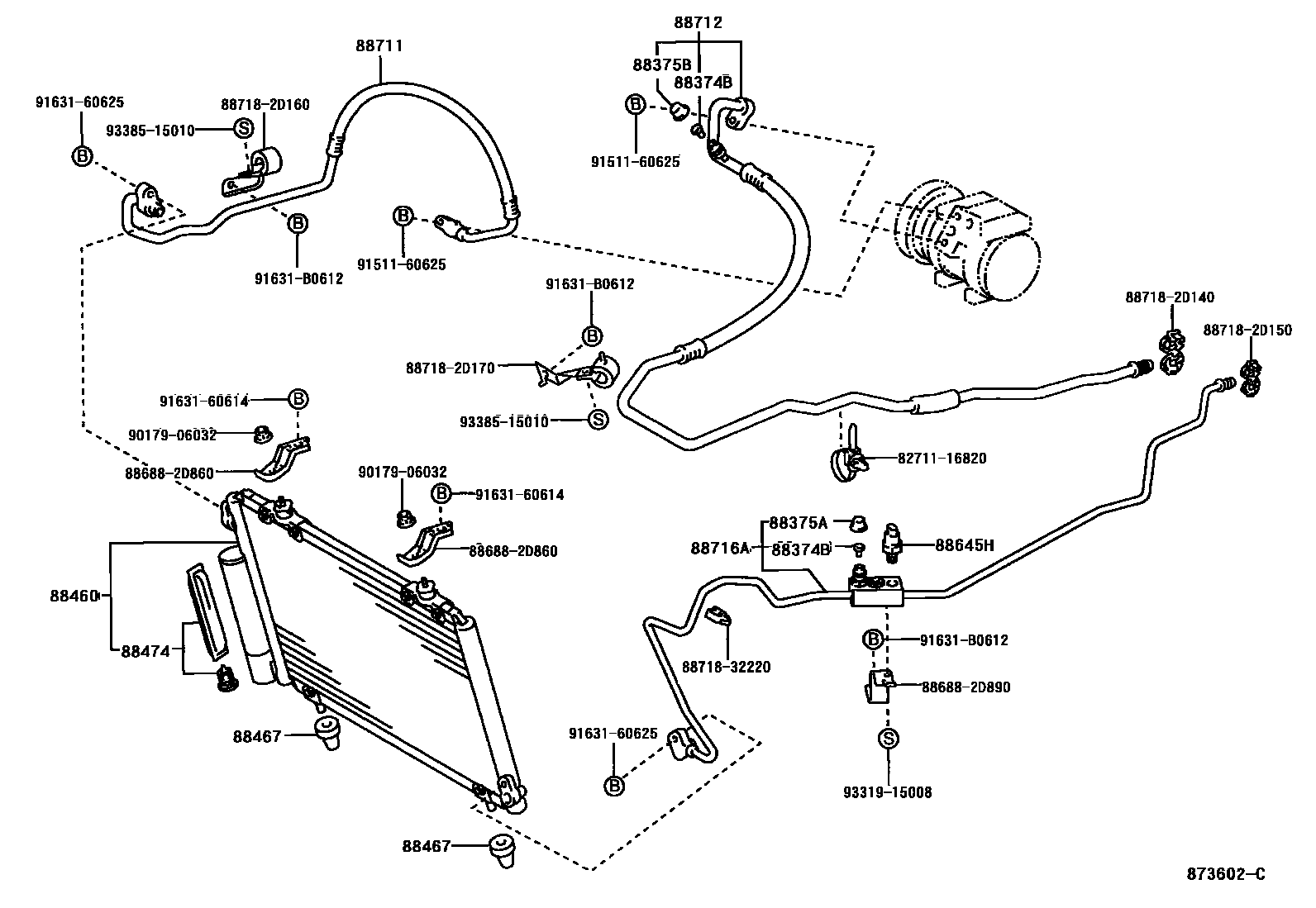

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1MAKER OPTION 0002 1MAKER OPTION 0003 1DEALER OPTION 0004 1DEALER OPTION 0005 1MAKER OPTION 0006 1MAKER OPTION 0007 1DEALER OPTION 0008 1DEALER OPTION 0009 1O-RING

88374BVALVE, SERVICE, NO.1

main88374-30010iZZT23#199908-200208

88375ACAP, SERVICE VALVE (FOR COOLER PIPE)

main88375-30280iZZT23#199908-200208

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iZZT23#199908-200208

88460CONDENSER ASSY, COOLER

main88460-20550iZZT23#..RHD199908-200208

main88460-20560iZZT23#..LHD199908-200208

main88460-20590iZZT23#..RHD200208-200509

main88460-20600iZZT23#..LHD200208-200509

88467CUSHION, COOLER CONDENSER, NO.1

main88467-20190iZZT23#200006-200208

main88467-32020iZZT230199908-200008

DEALER OPTION

88474DRYER, COOLER

main88474-17010iZZT23#200208-200509

main88474-47010iZZT23#199908-200208

88645HSWITCH, PRESSURE NO.1

main88645-60030iZZT23#199908-200208

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88703-20240iZZT230200208-200509

main88703-20250iZZT231200208-200509

main88711-2B380iZZT230199908-200208

sub88703-20240

main88711-2B390iZZT231200008-200208

sub88703-20250

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88704-20490iZZT23#..RHD200208-200509

MAKER OPTION

main88704-20500iZZT23#..LHD200208-200509

main88704-20570iZZT230..RHD200208-200509

DEALER OPTION

main88712-2D200iZZT231..RHD200008-200208

sub88704-20490

main88712-2D200iZZT230..RHD199908-200208

MAKER OPTION

sub88704-20490

main88712-2D210iZZT23#..LHD199908-200208

sub88704-20500

main88712-2D220iZZT230..RHD199908-200208

DEALER OPTION

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88706-20220iZZT23#..RHD200208-200509

MAKER OPTION

sub88716-2D570

sub88645-60030

sub88688-2D890

sub93319-15008

main88706-20230iZZT23#..LHD200208-200509

MAKER OPTION

sub88716-2D580

sub88645-60030

sub88688-2G010

sub93319-15008

main88706-20250iZZT230..LHD200208-200509

DEALER OPTION

sub88716-2D620

sub88645-60030

sub88688-2G010

sub93319-15008

main88706-20270iZZT230..RHD200208-200509

DEALER OPTION

main88716-2D570iZZT231..RHD200008-200208

main88716-2D570iZZT230..RHD199908-200208

MAKER OPTION

main88716-2D580iZZT231..LHD200008-200208

main88716-2D580iZZT230..LHD199908-200208

MAKER OPTION

main88716-2D610iZZT230..RHD199908-200208

DEALER OPTION

sub88706-20270

main88716-2D620iZZT230..LHD199908-200208

DEALER OPTION

8271116820WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16820

886882D860BRACKET, COOLER DIAPHRAGM

main88688-2D860

886882D890BRACKET, COOLER DIAPHRAGM

main88688-2D890

887182D140PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D140

887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D150

887182D160PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D160

887182D170PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D170

8871832220PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-32220

9017906032

main90179-06032

9151160625

main91511-60625

9163160614

main91631-60614

9163160625

main91631-60625

91631B0612

main91631-B0612

9331915008

main93319-15008

9338515010

main93385-15010

25 parts on this diagram · 9 diagrams in section
