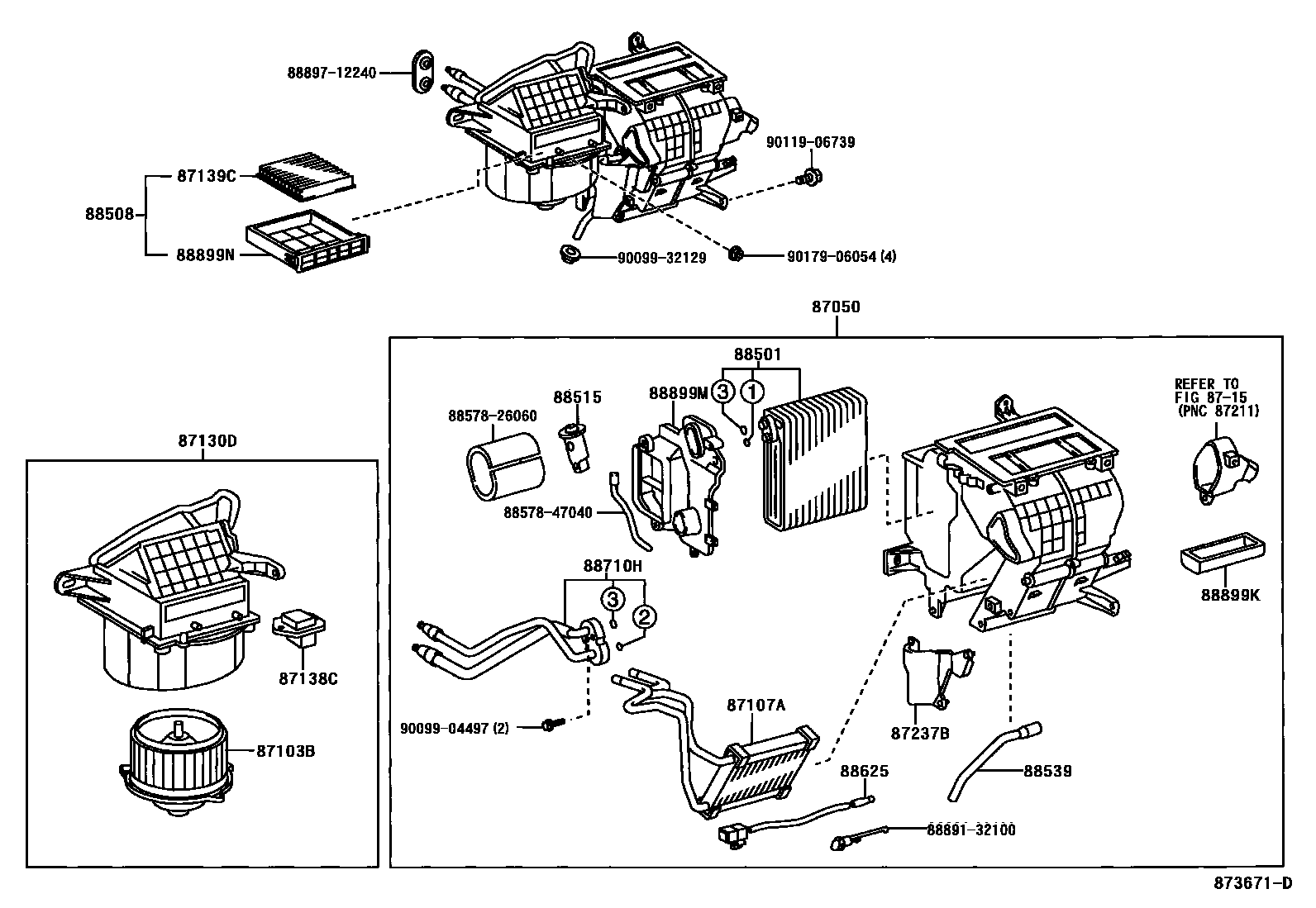

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1MANUAL AIR CONDITIONER 0002 1MANUAL AIR CONDITIONER 0003 1AUTO AIR CONDITIONER 0004 1AUTO AIR CONDITIONER 0005 1W/O(AIR CONDITIONER) 0006 1MANUAL AIR CONDITIONER 0007 1MANUAL AIR CONDITIONER1 0008 1AUTO AIR CONDITIONER 0009 1AUTO AIR CONDITIONER 0010 1W/O(AIR CONDITIONER) 0011 1O-RING

87050RADIATOR ASSY, AIR CONDITIONER

main87050-20440iZZT23#..RHD199908-200208

AUTOMATIC AIR CONDITIONER

main87050-20450iZZT230..RHD199908-200208

MANUAL AIR CONDITIONER

main87050-20460iZZT230..RHD200208-200509

main87050-20480iZZT23#..LHD200208-200509

AUTOMATIC AIR CONDITIONER

main87050-20500iZZT231..LHD200008-200208

main87050-20520iZZT230..LHD200208-200509

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-20120iZZT23#..RHD199908-200106

main87103-20130iZZT23#..LHD199908-200202

main87103-20150iZZT23#..RHD200208-200509

main87103-20160iZZT23#..LHD200208-200509

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-20670iZZT23#..RHD199908-200208

main87107-20690iZZT23#..LHD199908-200208

87130DBLOWER ASSY

main87130-20600iZZT23#..RHD199908-200208

AUTOMATIC AIR CONDITIONER

main87130-20610iZZT23#..RHD200208-200509

main87130-20620iZZT230..LHD199908-200008

AUTOMATIC AIR CONDITIONER

main87130-20630iZZT230..LHD199908-200008

main87130-20650iZZT23#..LHD200008-200208

AUTOMATIC AIR CONDITIONER

main87130-20660iZZT23#..LHD200008-200208

87138CRESISTOR, BLOWER

main87138-20350iZZT23#..RHD199908-200208

main87138-20360iZZT23#..LHD200208-200509

87139CFILTER, CLEAN AIR

main87139-47010iZZT23#200208-200509

8715

87237BCOVER, HEATER PIPING

main87237-20010iZZT23#..RHD200208-200509

main87237-20020iZZT23#..LHD199908-200208

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-20490iZZT23#..RHD200208-200509

main88501-20500iZZT23#..LHD199908-200208

88508FILTER SUB-ASSY, CLEAN AIR

main88508-20210iZZT23#200008-200208

88515VALVE, COOLER EXPANSION

main88515-28160iZZT23#200403-200509

DEALER OPTION

main88515-48040iZZT23#200208-200310

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-20300iZZT23#..RHD199908-200208

main88539-20310iZZT23#..LHD199908-200208

88625THERMISTOR, COOLER, NO.1

main88625-20510iZZT23#200208-200509

88710HTUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-20780iZZT23#..RHD199908-200208

main88710-20790iZZT23#..LHD199908-200208

88899KPLATE, COVER

main88899-47030iZZT23#200008-200208

88899MPLATE, COVER(FOR AIR FILTER)

main88899-20300iZZT230..RHD200008-200208

W(AIR CONDITIONER)

main88899-20310iZZT230..RHD200208-200509

main88899-20320iZZT230..LHD200008-200208

W(AIR CONDITIONER)

main88899-20330iZZT230..LHD199908-200208

88899NPLATE, COVER

main88899-20340iZZT23#200208-200509

main88899-41010iZZT230199908-200008

8857826060PAKING, COOLER AIR DUCT

main88578-26060

8857847040PAKING, COOLER AIR DUCT

main88578-47040

8889132100PACKING (FOR COOLER)

main88891-32100

8889712240VALVE, COOLER MAGNET

main88897-12240

9009904497

main90099-04497

9009932129

main90099-32129

9011906739

main90119-06739

9017906054

main90179-06054
