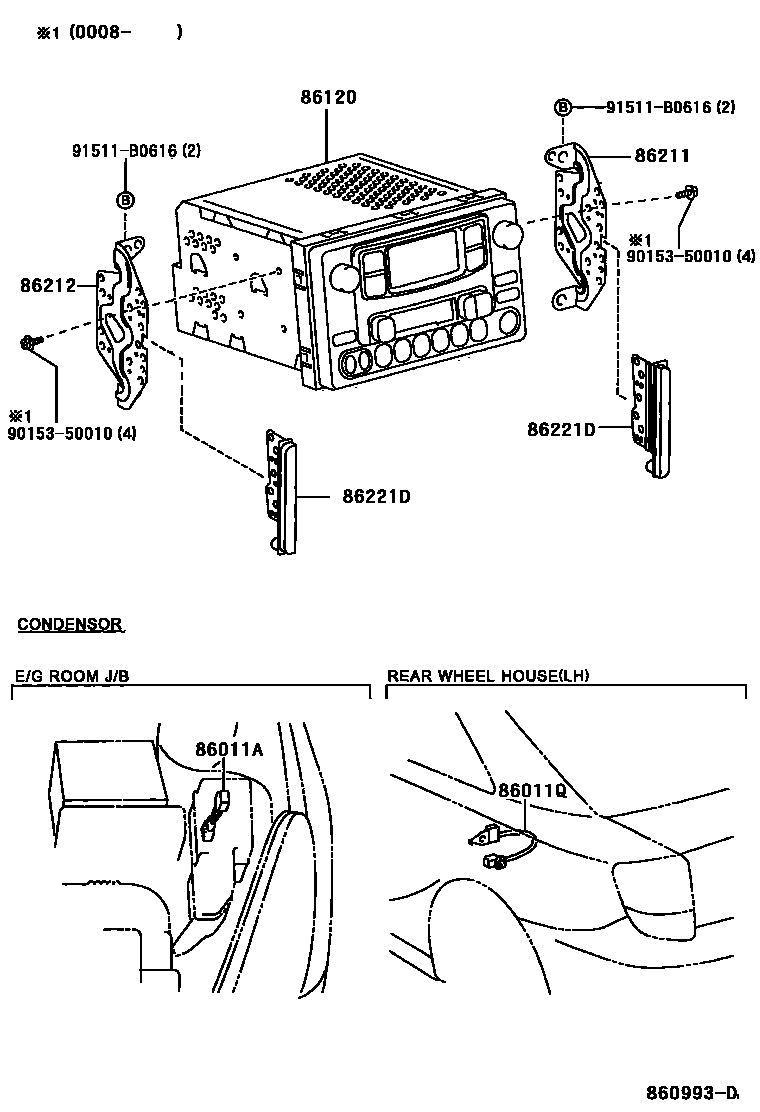

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

86011ACONDENSER, RADIO SETTING

main90980-04144iZZT23#199908-200509

86011QCONDENSER, RADIO SETTING

main90980-04134iZZT23#199908-200509

86120RECEIVER ASSY, RADIO

main86120-28351iZZT23#200008-200208

FUJITSU TEN,ID=18303,TYPE A:REFER TO ILLUSTRATION

main86120-28381iZZT23#200008-200106

MATSUSHITA, ID=58803,TYPE B:REFER TO ILLUSTRATION

sub86120-28382

main86120-28382iZZT23#200106-200208

MATSUSHITA, ID=58805,TYPE B:REFER TO ILLUSTRATION

main86120-42050iZZT23#200208-200509

FUJITSU TEN,ID=18302,TYPE A:REFER TO ILLUSTRATION

main86120-42061iZZT23#200208-200509

MATSUSHITA,ID=58806,TYPE B:REFER TO ILLUSTRATION

86211BRACKET, RADIO, NO.1

main86211-20410iZZT23#199908-200509

86212BRACKET, RADIO, NO.2

main86212-20400iZZT23#199908-200509

86221DPANEL, RADIO RECEIVER

main86221-52050iZZT23#199908-200509

LH

main86221-52060iZZT23#199908-200509

RH

9015350010

main90153-50010

91511B0616

main91511-B0616

8 parts on this diagram · 2 diagrams in section
