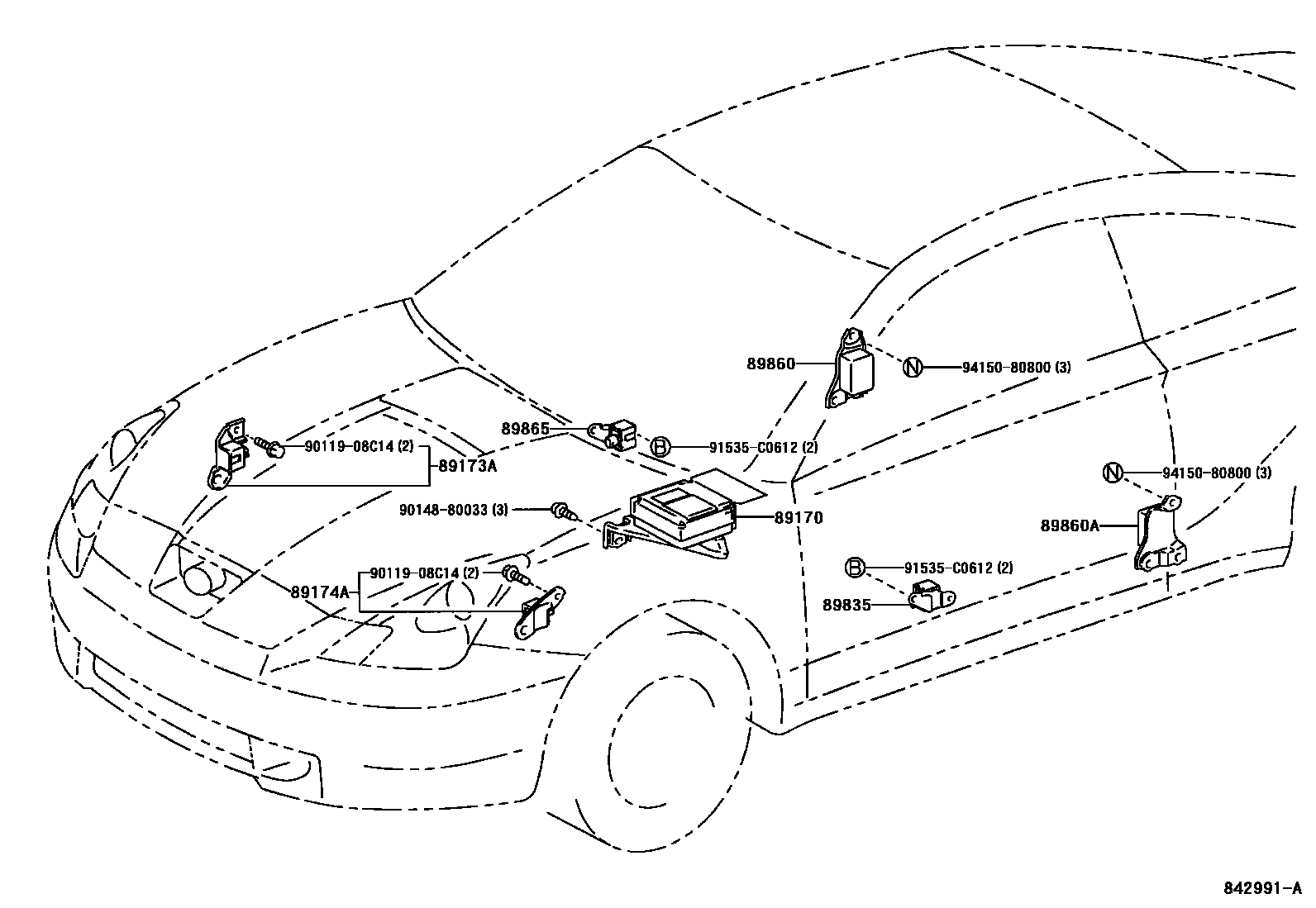

AIR BAG

89170SENSOR ASSY, AIRBAG

main89170-20140iZZT23#..LHD199908-200208

main89170-20150iZZT23#..LHD199908-200208

*80,DRIVER SIDE & PASSENGER SIDE & SIDE

89173ASENSOR, AIRBAG, FRONT RH

main89173-29155iZZT23#200208

89174ASENSOR, AIRBAG, FRONT LH

main89174-29035iZZT23#199908-200208

89835SENSOR, DOOR SIDE AIRBAG, LH

main89835-20010iZZT23#199908-200208

89860SENSOR ASSY, SIDE AIRBAG, RH

main89860-20020iZZT23#199908-200208

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89830-20020iZZT23#199908-200208

89865SENSOR, DOOR SIDE AIRBAG, RH

main89865-20010iZZT23#199908-200208

9011908C14

main90119-08C14

9014880033

main90148-80033

91535C0612

main91535-C0612

9415080800

main94150-80800

11 parts on this diagram · 1 diagram in section
