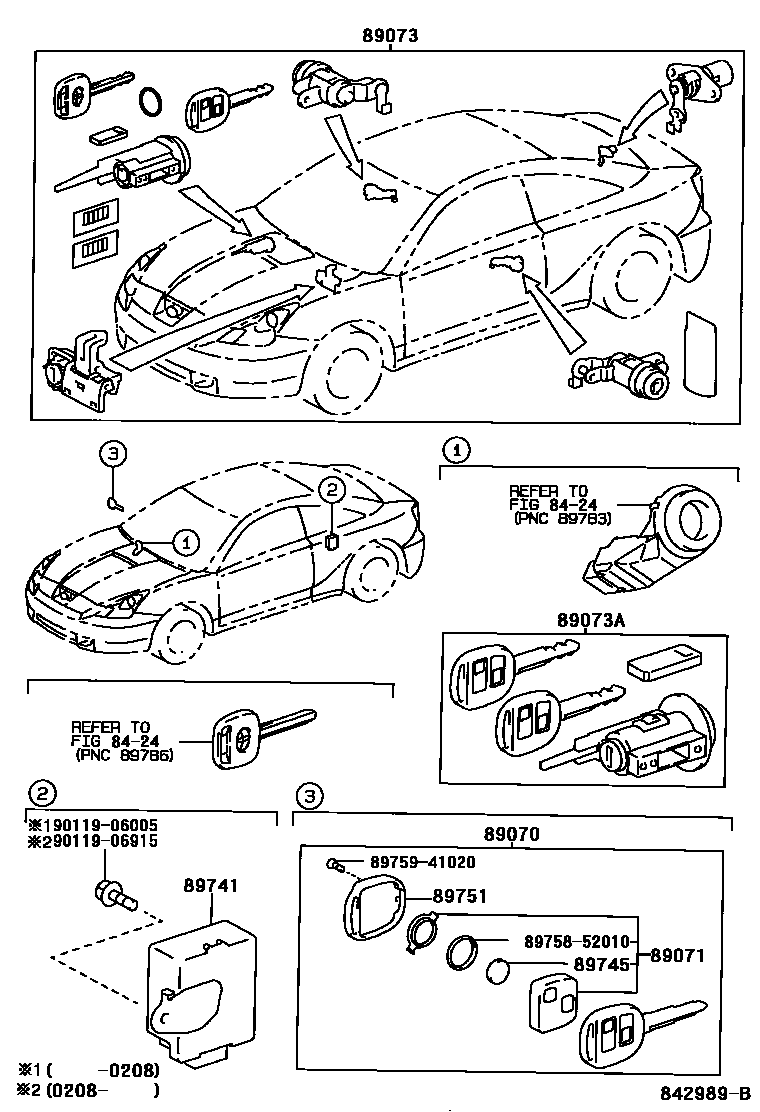

WIRELESS DOOR LOCK
8424
89070TRANSMITTER ASSY, DOOR CONTROL
ITALY SPEC OR FINLAND SPEC
DENMARK SPEC OR SWITZERLAND SPEC
HONG KONG SPEC
FRANCE SPEC
sub89070-47102
89071MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
HONG KONG SPEC
89073CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)
sub89759-41020
ITALY SPEC OR FINLAND SPEC
DENMARK SPEC OR SWITZERLAND SPEC
FRANCE SPEC
89073AIGN CYLINDER SET LOCK W/TRANSMITTER HOUSING (CUT KEY)
ITALY SPEC OR FINLAND SPEC
DENMARK SPEC OR SWITZERLAND SPEC
HONG KONG SPEC
FRANCE SPEC
89741RECEIVER, DOOR CONTROL
HONG KONG SPEC
89745BATTERY, TRANSMITTER
sub89745-40010
89751COVER, TRANSMITTER HOUSING
HONG KONG SPEC
8975852010PACKING, DOOR CONTROL TRANSMITTER
main89758-52010
8975941020SCREW, DOOR CONTROL TRANSMITTER
main89759-41020
9011906005
main90119-06005
9011906915
main90119-06915
12 parts on this diagram · 1 diagram in section
