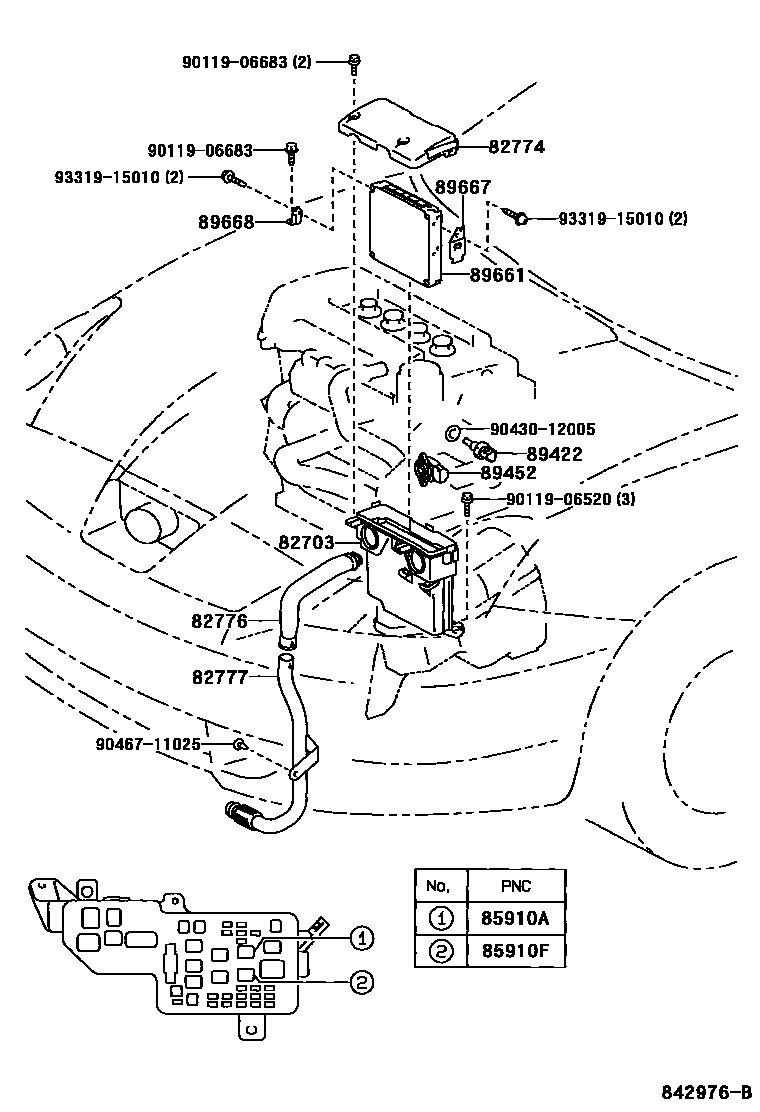

ELECTRONIC FUEL INJECTION SYSTEM

82703BOX SUB-ASSY, ENGINE ROOM ECU

main82703-20010iZZT23#199908-200509

82774COVER, ENGINE ROOM ECU

main82774-20010iZZT23#199908-200509

82776DUCT, ENGINE ROOM ECU OUTLET

main82776-20010iZZT23#199908-200509

82777DUCT, ENGINE ROOM ECU, LWR

main82777-20010iZZT23#199908-200509

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02012iZZT23#199908-200208

main90987-02027iZZT23#200208-200509

85910FRELAY, COMPUTER (FOR EFI)

main90987-02012iZZT23#199908-200208

main90987-02027iZZT23#200208-200509

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-35010iZZT23#199908-200509

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-20130iZZT230199908-200509

main89452-35020iZZT231200008-200509

89661COMPUTER, ENGINE CONTROL

main89661-2G420iZZT230200208-200509

main89661-2G430iZZT231200208-200304

sub89661-2G431

main89661-2G431iZZT231200304-200509

main89666-20050iZZT230199908-200208

main89666-20150iZZT231200008-200109

sub89666-20151

main89666-20151iZZT231200109-200208

sub89666-20152

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-20410iZZT23#199908-200509

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-20360iZZT23#199908-200509

9011906520

main90119-06520

9011906683

main90119-06683

9043012005

main90430-12005

9046711025

main90467-11025

9331915010

main93319-15010

16 parts on this diagram · 1 diagram in section
