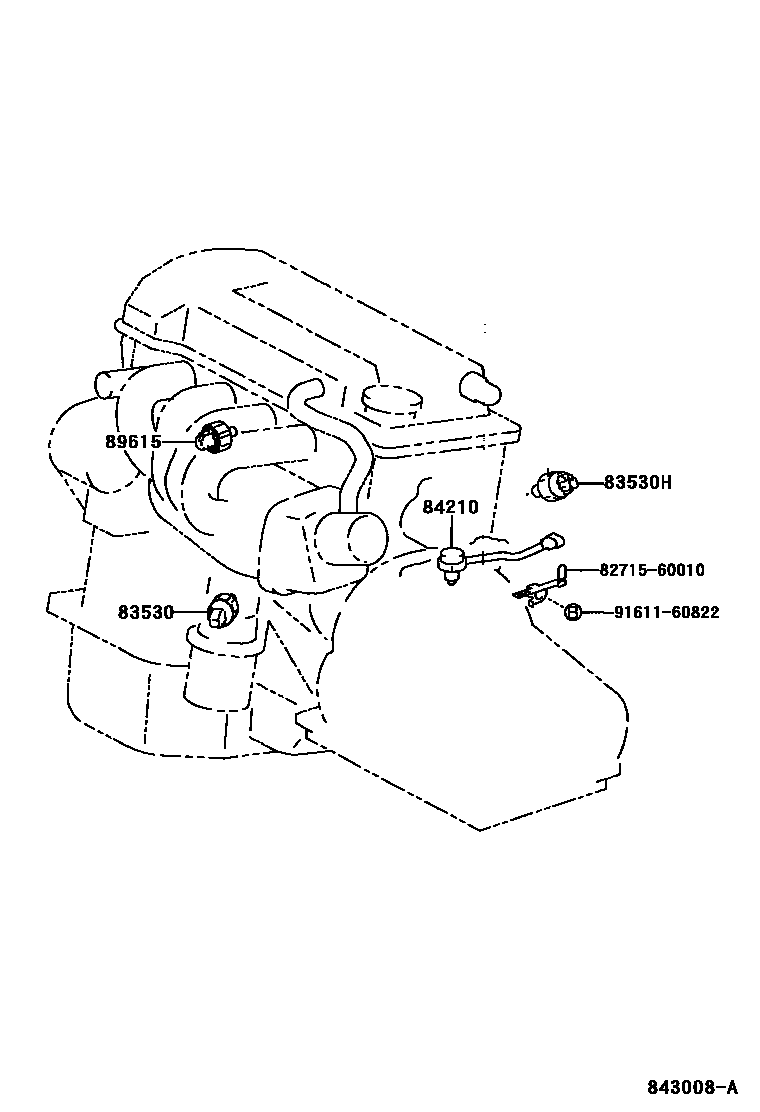

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iZZT23#199908-200509

DENSO

main83530-60020iZZT23#199908-200509

YAZAKI

83530HSWITCH ASSY, OIL PRESSURE

main83530-20030iZZT231200008-200509

84210SWITCH ASSY, BACK-UP LAMP

main84210-14040iZZT23#199908-200509

89615SENSOR, KNOCK CONTROL

main89615-12120iZZT230199908-200509

main89615-20080iZZT231200008-200509

8271560010BRACKET,WIRING HARNESS CLAMP

main82715-60010

9161160822

main91611-60822

6 parts on this diagram · 9 diagrams in section
